Item Description
Specifications
Reviews

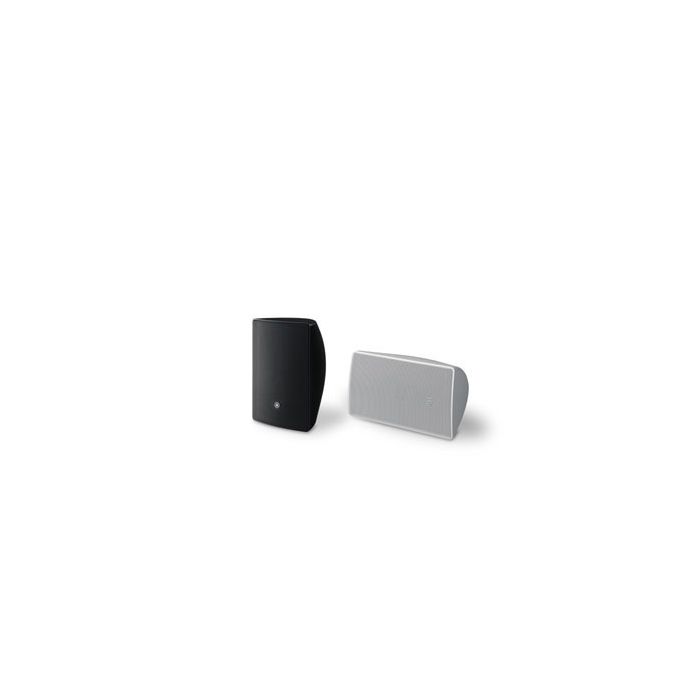

The Yamaha VXS8 8" 2 way bass reflex cabinet loudspeakers can be mounted vertically or horizontally on the wall or ceiling using the versatile mounting bracket supplied with each loudspeaker. Rated at 180 watts Program power and compatible with both 8Ω low impedance music systems as well as 100 volt line commercial sound systems.

A tapping selector is provided on the rear of the speaker with transformer tappings at 60w, 30w & 15w.

The neatly designed VXS8 cabinet can be mounted closely to the wall, whilst still enabling it to tilt and turn as required.

IP35 rated, suitable for use as an outdoor speaker.

Available in black or white.

**************************************SUPPLIED & PRICED IN PAIRS*************************************

Speaker type
		2-way, Bass-reflex
Frequency range (-10dB)		51Hz - 20kHz
Nominal coverage	H	100°
Nominal coverage	V	100°
Components	LF	8" Cone
Components	HF	1" Soft dome
Crossover		2.8kHz
Power rating	NOISE	90W
Power rating	PGM	180W
Nominal impedance		8Ω
Transformer taps	100V	60W (170Ω), 30W (330Ω), 15W (670Ω)
Transformer taps	70V	60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
SPL	Sensitivity (1W; 1m on axis)	91dB SPL
SPL	Peak (Calculated)	117dB SPL
I/O connectors		1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)
Shape		Rectangular
Cabinet material		ABS
Finish		VXS8:Black / VXS8W:White
Waterproof		IP35
Dimensions	W	278mm (10.9")
	H	430mm (16.9")
	D	239mm (9.4")
Net weight		8.2kg (18.1lbs)
Accessories		Wall / Ceiling mount bracket, Terminal cover
Packaging		Packaged in pairs
Certificate		UL1480, NFPA70, CE, EAC, RoHS
EN54-24 compliance
