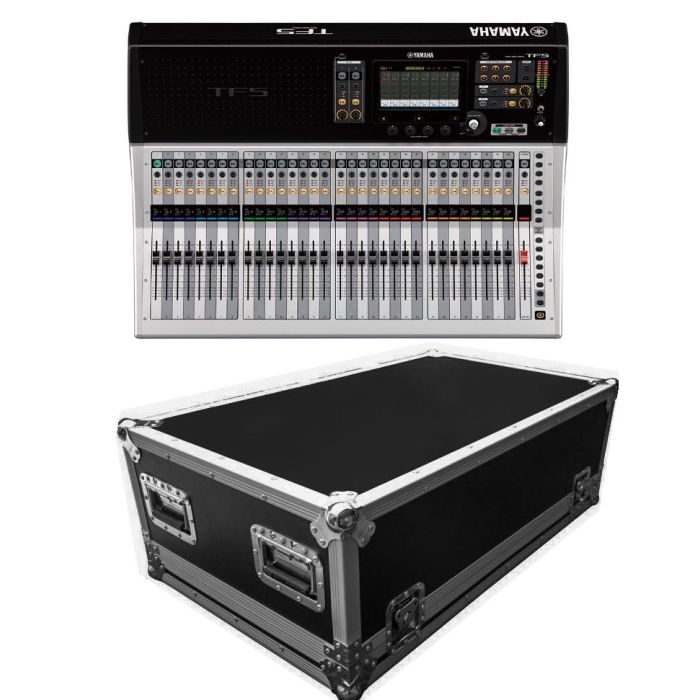

YAMAHA TF5 DIGITAL MIXER WITH FLIGHT CASE
Special Price
A$4,850.00
Regular Price
A$6,199.00
Call for availability
SKU
TF5 / FF5 CASE
YAMAHA TF5 DIGITAL MIXER
Package includes:
1x Yamaha TF5 digital mixer
1x CaseToGo TF5 custom case
TF5 features:
- 33 motor faders (32 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
- 8 DCA groups with Roll-out
- 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- 1 expansion slot for NY64-D audio interface card
| Custom Stock Status | Call for availability | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification | TF5, TF3, TF1
RECORDING/ PLAYBACK
*Please note - USB thumb drives are not supported by TF for recording purposes. Please refer to this link for compatible hard drives.
ANALOG INPUT CHARACTERISTICS
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.) ANALOG OUTPUT CHARACTERISTICS
*1.1: GND,2: HOT, 3: COLD DIGITAL INPUT/OUTPUT SPECIFICATIONS
CONTROL I/O SPECIFICATIONS
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | YAMAHA |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TF5, TF3, TF1
| Outline | TF5 | TF3 | TF1 | |
|---|---|---|---|---|
| Fader Configuration | 32 + 1 (Master) | 24 + 1 (Master) | 16 + 1 (Master) | |
| Mixing Capacity | Input Channels | 48 (40 mono + 2 stereo + 2 return) | 48 (40 mono + 2 stereo + 2 return) | 40 (32 mono + 2 stereo + 2 return) |
| Aux Buses | 20 (8 mono + 6 stereo) | 20 (8 mono + 6 stereo) | 20 (8 mono + 6 stereo) | |
| Stereo Buses | 1 | 1 | 1 | |
| Sub Buses | 1 | 1 | 1 | |
| Input channel functions | 8 DCA Groups | 8 DCA Groups | 8 DCA Groups | |
| I/O | Inputs | 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) | 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) | 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) |
| Outputs | 16 (XLR) | 16 (XLR) | 16 (XLR) | |
| Expansion slots | 1 | 1 | 1 | |
| On-board processors | DSP | 8 Effects + 10 GEQ | 8 Effects + 10 GEQ | 8 Effects + 10 GEQ |
| General specifications | TF5 | TF3 | TF1 | |
| Sampling frequency rate | Internal | 48 kHz | 48 kHz | 48 kHz |
| Signal delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | |
| Fader | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | |
| Total harmonic distortion | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | |
| Frequency response | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | |
| Dynamic range | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | |
| Hum & noise level | Equivalent input noise | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) |
| Residual output noise | –85 dBu, ST master off (Measured with an A-Weight filter) | –85 dBu, ST master off (Measured with an A-Weight filter) | –85 dBu, ST master off (Measured with an A-Weight filter) | |
| Crosstalk | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | |
| Power requirements | 100–240 V 50/60 Hz | 100–240 V 50/60 Hz | 100–240 V 50/60 Hz | |
| Power consumption | 120 W | 110 W | 100 W | |
| Dimensions | W | 866 mm (34.1in) | 716 mm (28.2in) | 510 mm (20.1in) |
| H | 225 mm (8.9in) | 225 mm (8.9in) | 225 mm (8.9in) | |
| D | 599 mm (23.6in) | 599 mm (23.6in) | 599 mm (23.6in) | |
| Net weight | 20.0 kg (44.1lb) | 17.0 kg (37.5lb) | 13.5 kg (29.8lb) | |
| Accessories | Quick Guide, Power Cord, Nuendo Live | Quick Guide, Power Cord, Nuendo Live | Quick Guide, Power Cord, Nuendo Live | |
| Options | Expansion Card, Foot Switch (FC5) | Expansion Card, Foot Switch (FC5) | Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5) | |
| Others | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C | |
RECORDING/ PLAYBACK
| PC/Mac (USB2.0) | Recording 34 tracks, Playback 34 tracks |
| USB Storage Device | Recording 2 tracks (USB hard drive/ SSD)*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive) |
*Please note - USB thumb drives are not supported by TF for recording purposes. Please refer to this link for compatible hard drives.
ANALOG INPUT CHARACTERISTICS
| Input Terminals | GAIN | Load Impedance |
For Use With Nominal |
Input Level | Connector | balanced / Unbalanced |
||
|---|---|---|---|---|---|---|---|---|
| Sensitivity*1 | Nominal | Max. before clip | ||||||
| INPUT1-32 (TF5) INPUT1-24 (TF3) INPUT1-16 (TF1) |
+66dB | 7.5K Ω | 50-600 Mics or 600 Lines |
-82dBu (61.6V) | -62dBu (0.616mV) | -42dBu (6.16mV) | Combo Jack (XLR-3-31 type *2 or TRS phone *3) |
Balanced |
| -6dB | -10dBu (245mV) | +10dBu (2.45V) | +30dBu (24.5V) | |||||
| ST IN 1,2 | — | 10k | 600 Lines | -30dBV (31.6V) | -10dBV (316mV) | +10dBV (3.16V) | RCA Pin Jack | Unbalanced |
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*4 In these specifications, 0dBu = 0.775Vrms.
*5.+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
ANALOG OUTPUT CHARACTERISTICS
| Output Terminals | Source Impedance |
For Use With Nominal |
GAIN SW | Output Level | Connector | balanced / Unbalanced |
|
|---|---|---|---|---|---|---|---|
| Nominal | Max. before clip | ||||||
| OMNI OUT 1-16 | 75Ω | 600 Lines | “+24dBu” position (default) | +4dBu (1.23 V) | +24dBu (12.3 V) | XLR-3-32 type *1 | Balanced |
| PHONES *5 | 100Ω | 40 Phones | — | 3mW | 75mW | Stereo Phone Jack (TRS) *2 | Unbalanced |
*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 In these specifications, 0dBu = 0.775Vrms.
*4 All output DA converters are 24bit, 128times oversampling.
*5 The position of the level control is lowered by 16dB from the maximum.
DIGITAL INPUT/OUTPUT SPECIFICATIONS
| Terminals | Format | Data length | Audio | Connector |
|---|---|---|---|---|
| USB (TO HOST) | USB | 24bit | 34ch input / 34ch output, PCM | USB (B type) |
| iPad | USB | — | Playback: MP3 or WAV file data / Record: WAV file data | USB (A type) |
CONTROL I/O SPECIFICATIONS
| Terminals | Format | Level | Connector |
|---|---|---|---|
| NETWORK | IEEE802.3 | 10BASE-T/100Base-TX | RJ-45 |
| FOOT SW | — | — | TS Phone |
