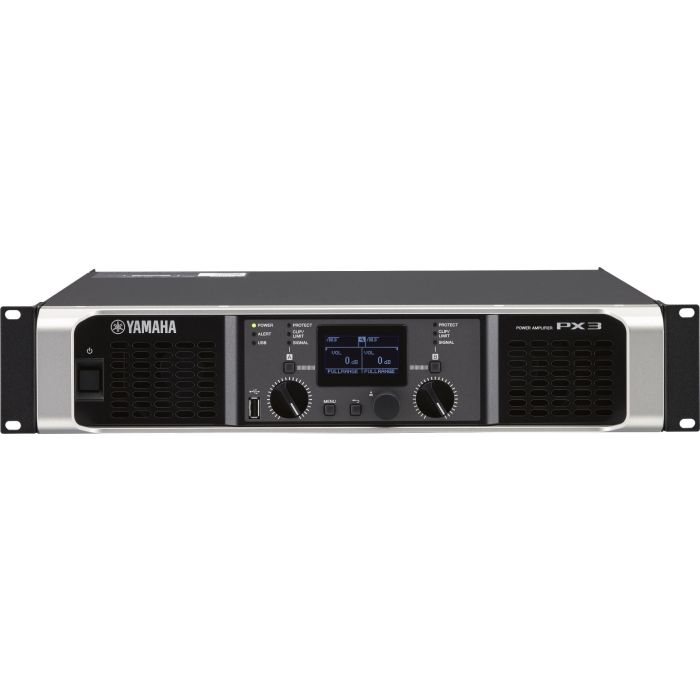

Yamaha PX3 Power Amplifier
Move your mouse over image or click to enlarge
Yamaha PX3 Power Amplifier Yamaha PX3 Power Amplifier Yamaha PX3 Power Amplifier Yamaha PX3 Power Amplifier

Yamaha PX3 Power Amplifier

Manufacturer: Yamaha

SKU: PX3

Availability: Available

$709.00

Qty

Quick Overview

Yamaha PX3 Power Amplifier

Intelligent Processing. Serious Power.

Since the 1976 release of the P2200, our first professional power amplifier, Yamaha has strived to achieve the highest possible levels of sound quality, power output, and reliability in sound reinforcement, studio, and installed applications. The new PX series power amplifiers continue this tradition of excellence, utilizing Yamaha’s renowned digital signal processing technology and unparalleled professional audio expertise to achieve a light, durable design, capable of delivering maximum output power to the speakers while simultaneously protecting them with optimized processing. Driven by a newly-developed Class-D amplifier the four new models that make up the PX series are suitable for a broad range of sound reinforcement and installation environments.

The versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. 300W x 2 at 8Ω / 500W x 2 at 4Ω.

  • 2x 300W at 8Ω
  • 2x 500W at 4Ω
  • Newly developed Class-D amplifier engine with a custom LSI
  • Flexible onboard PEQ, crossover, filters, delay, and limiter functions
  • Yamaha Speaker presets
  • Utlities for safe and secure operation

Yamaha PX3

Output Power 300 W per channel at 8 Ohms
500 W per channel at 4 Ohms
300 W per channel at 2 Ohms

600 W one channel at 8 Ohms / Power Boost Mode
1000 W one channel at 4 Ohms / Power Boost Mode
Amplifier Type Class-D, balanced output circuit (BLT)
THD + N 0.1% at 1 kHz, 10 W
0.3% at 1 kHz, half power
Frequency Response 20 Hz to 20 kHz, ±1.0 dB (1 W at 8 Ohms)
Crosstalk ≤ -60 dB
S/N Ratio 100 dB
Voltage Gain / Sensitivity At 8 Ohms, Maximum Volume:

32.0 dB / +4.1 dBu (Gain Setting: 32 dB)
26.0 dB / +10.1 dBu (Gain Setting: 26 dB)
32.1 dB / +4 dBu (Gain Setting: 4 dB)
22.1 dB / +14 dBu (Gain Setting: 14 dB)

At 8 Ohms, Maximum Volume, Power Boost Mode:

35.0 dB / +4.1 dBu (Gain Setting: 32 dB)
29.0 dB / +10.1 dBu (Gain Setting: 26 dB)
35.1 dB / +4 dBu (Gain Setting: 4 dB)
25.1 dB / +14 dBu (Gain Setting: 14 dB)
Cooling 2 x 16-step variable-speed fan (front-to-rear flow)
Maximum Input Voltage +24 dBu
Input Impedance 20 kOhms (Balanced)
10 kOhms (Unbalanced)
Sampling Frequency 48 kHz
Converters A/D: 24-bit linear, 128 times over-sampling
D/A: 24-bit linear, 128 times over-sampling
Signal Processing
  • Input summing
  • D-contour: FOH / MAIN
  • Monitor
  • OFF
  • Delay: 0 to 74 ms
  • HPF / LPF: cutoff frequency 20 Hz to 20 kHz with polarity control
  • Speaker Processor: 6-band PEQ / limiter / delay



Latency 1.5 ms (analog input to speaker)
User Presets 8 user presets
Factory Presets Speaker presets for Yamaha passive speakers
Connectors Analog Input
2 x XLR-3-31
2 x 1/4 TRS

Speakers
2 x Neutrik SpeakOn NL4
2 x pairs of binding posts
2 x 1/4" TS

1 x AC inlet with AC cord clamp

1 x USB 2.0 type-A (female)
AC Power Requirements 120 V / 60 Hz
Power Consumption 160 W at 4 Ohms, 1/8 maximum power
55 W at 4 Ohms, Idle
Operating Temperature 32 to 104°F / 0 to +40°C
Storage Temperature -4 to 140°F / 0 to +40°C
Dimensions (W × H × D) 18.90 x 3.46 x 15.25" / 480 x 88 x 387.4 mm
Weight 15.21 lb / 6.9 kg
