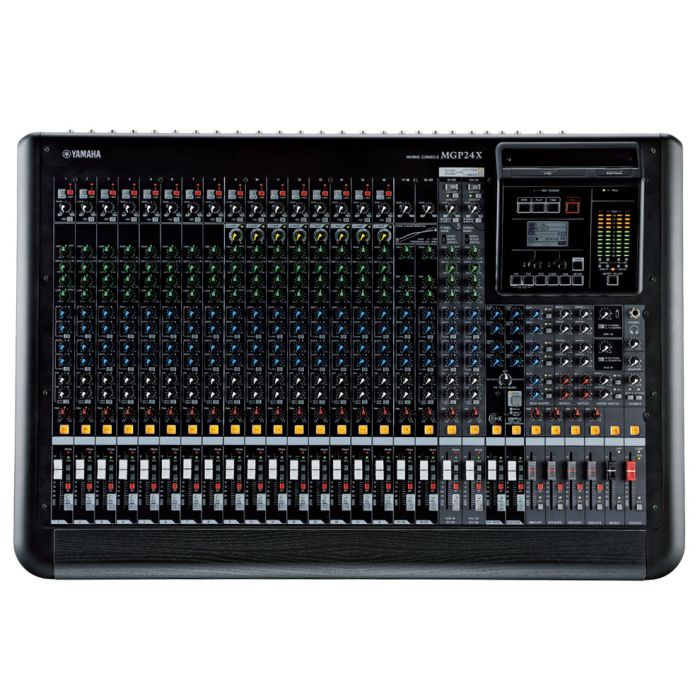

Yamaha MGP24X 24 channel mixer
Move your mouse over image or click to enlarge
Yamaha MGP24X 24 channel mixer Yamaha MGP24X 24 channel mixer

Yamaha MGP24X 24 channel mixer

Manufacturer: Yamaha


Availability: Available

Regular Price: $1,899.00

Special Price $1,499.00

Quick Overview

From the preamps, EQ and effects to the Hybrid Channel functions and iPod/iPhone connectivity—every aspect, every feature, every sound, establishes the MGP as a premium mixing console in a class of its own.




Yamaha has provided an impressive range of lineups in professional audio since the release of the PM200 in 1972 - our first ever professional analog mixing console. In 1987, we also released our first digital mixer, the DMP7, and have subsequently advanced technological innovations in sound quality, reliability and advanced functionalities with cutting-edge digital technologies.

Drawing from our decades of experience crafting innovative, premium analog gear, we originally developed our new discrete Class-A microphone preamps for professional use in our high-end recording equipment. Utilizing an inverted Darlington circuit design, our newly-refined D-PRE mic preamps deliver a fat, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha's proprietary X-pressive EQ we've managed to capture ultimate analog authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of sought-after classic EQ modules.

At the heart of the MGP's compact configuration, we've taken an innovative new approach to the utilization of digital technology in an analog mixer; adding high-resolution effects, iPod/iPhone integration and the superb functionality of our new Stereo Hybrid Channel to the warmth and musicality of premium analog sound. The MGP Series represents the ultimate balance of the converging technologies that are the heart and soul of Yamaha's extraordinary achievements in professional audio.

Not just for live bands and DJ's, the MG Series mixing consoles can easily adapt to a truly impressive range of applications from portable PA to fixed installation. Now with the newly added digital functions and superior sound of the MGP, the possibilities are endless.


  • Newly refined D-PRE microphone preamps employing an inverted Darlington circuit design providing magnificent highs with a full natural bass. Your old mics will sound new again.
  • Proprietary X-pressive EQ give you a powerful sound-shaping tool based on a precise response combined with very steep “X-shape” frequency curves. EQ is no longer just a way to tweak the mix.
  • 1-Knob Compressors, Yamaha were the first and are still the best.  No complicated setup or configuring of outboard gear, just grab the knob and turn until it sounds right.
  • Stereo Hybrid Channel combining Priority Ducker, Leveler and a Stereo Image processor as well as a sweepable mid, 3-band EQ, the Stereo Hybrid Channel offers an exceptional level of control and superior sound.
  • Digital Effects: not 1 but 2 of Yamaha’s SPX digital effects processors including the celebrated REV-X reverbs.
  • iPod/iPhone connectivity: not just simple playback but a full MGP editor turning your Apple device into a flexible controller of the MGP’s Hybrid Channel , the effects processors, graphic EQ and the stereo buss multiband compressor.
  • USB Device Recording / Playback: direct to or from a USB thumb drive.

Mixing capabilityMixing channels24 Line Inputs (16 mono and 4 stereo)
AUX6 AUX Sends + 2 FX Sends
MATRIX1 Matrix out
On-board processorsFX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
I/OMic inputsMIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power48V phantom power per channel
Line inputsLINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
Digital I/OUSB Device, iPod / iPhone

General specifications

Total harmonic distortion0.02% (20Hz-20kHz@ +14dBu)
Frequency response+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise levelEquivalent input noise-128 dBu Equivalent Input Noise
Residual output noise-94 dBu Residual Output Noise
Crosstalk-74dB @ 1kHz
Power requirements100-240V 50Hz/60Hz
Power consumption86W max
DimensionsW819mm (32.2")
H169mm (6.7")
D565mm (22.2")
Net weight15.5kg (34.2lb)
