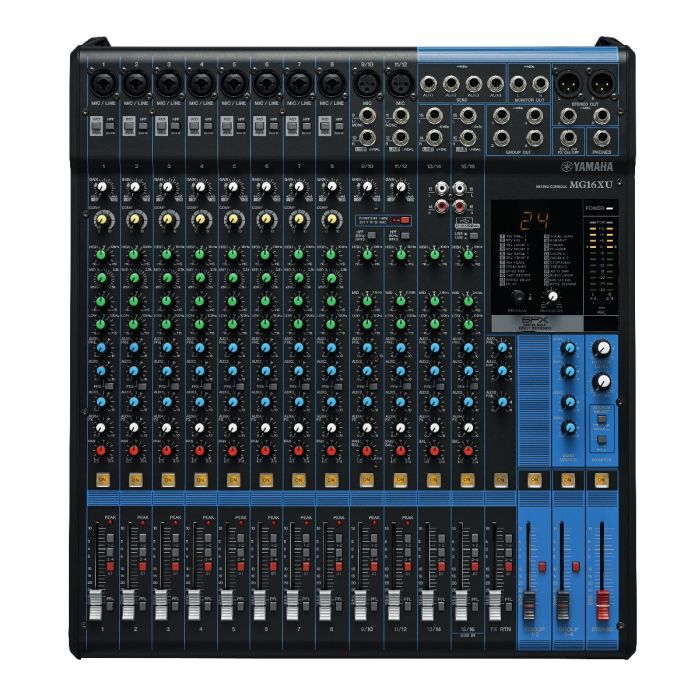

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
|Mixing capability||On-board processors||SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)|
|I/O||Phantom power||+48 V|
|Digital I/O||USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit|
|Output Channels||STEREO OUT||2|
|Bus||Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)|
|Input Channel Function||PAD||26 dB (Mono)|
|HPF||80 Hz, 12 dB/oct (Mono/Stereo: MIC only)|
|COMP||1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec|
|EQ HIGH||Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving|
|EQ MID||Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking|
|EQ LOW||Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving|
|PEAK LED||LED turns on when post EQ signal reaches 3 dB below clipping|
|Level Meter||2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]|
