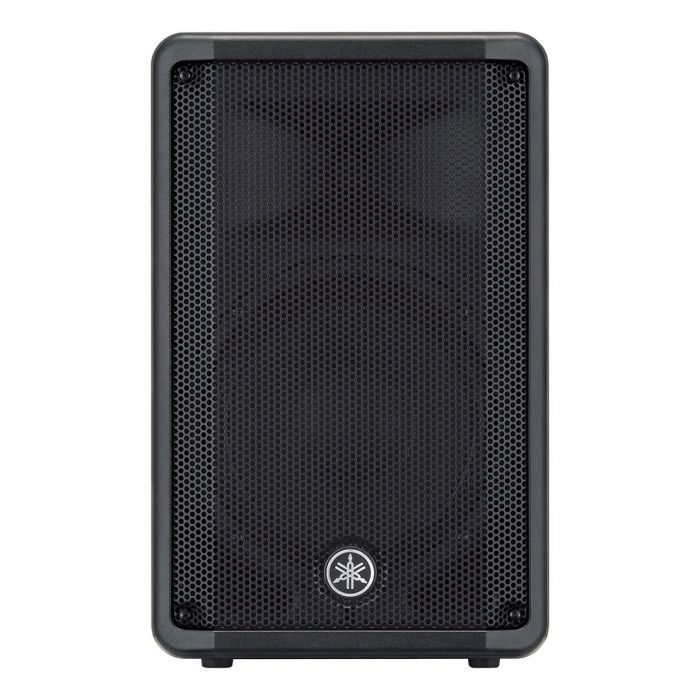

Yamaha DBR12 12” 2-way Powered Loudspeaker
A$649.00
Availability: Available
Manufacturer
YAMAHA
SKU
DBR12
12" powered speaker
The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.
BULKY ITEM - EXTRA FREIGHT CHARGES MAY APPLY PLEASE ENQUIRE
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAMAHA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type | |
|---|---|---|
| Frequency range (-10dB) | 52Hz – 20kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:12" cone, Voice Coil:2", Magnet:Ferrite |
| HF | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite | |
| Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) | |
| Maximum output level (1m; on axis) | 131dB SPL | |
| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Heat dissipation | Fan cooling, 4 speeds | |
| Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |
| Power consumption | 74W(1/8 Power Consumption), 18W(Idle) | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Side x 2 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) | |
| Pole socket | 35mm (Bottom x 1) | |
| Dimensions | W | 376mm (14.8") |
| H | 601mm (23.7") | |
| D | 348mm (13.7") | |
| Net weight | 15.8 kg (34.8 lbs) | |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) | |
