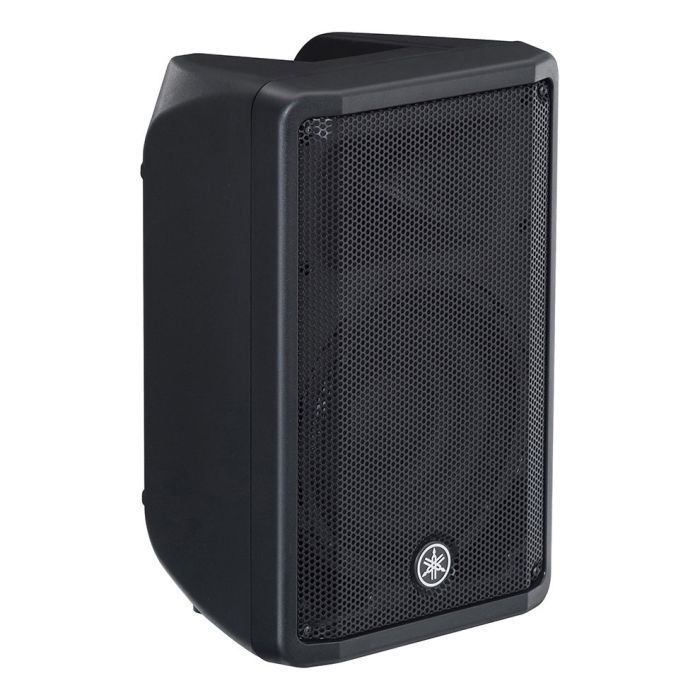

Yamaha CBR10 10” 2-way Passive Loudspeaker

JavaScript seems to be disabled in your browser.
You must have JavaScript enabled in your browser to utilize the functionality of this website.

Item Description
Specifications
Reviews

The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.

Speaker type		2-way Speaker, Bass-reflex Type
Frequency range (-10dB)		50 Hz - 20 kHz
Nominal coverage	H	90°
Nominal coverage	V	60°
Components	LF	10" Cone, 2" Voice Coil (Ferrite Magnet)
Components	HF	1" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover		2.8 kHz
Power rating	NOISE	175W
	PGM	350W
	PEAK	700W
Nominal impedance		8Ω
SPL	Sensitivity (1W; 1m on axis)	94dB SPL
SPL	Peak (Calculated)	123 dB SPL
I/O connectors		1/4" Phone x 1, speakON NL4MP x 1
Cabinet material		Plastic
Finish		Black
Handle		Top x 1
Flying and mounting hardware		Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket		Φ35 mm　Bottom x 1
Dimensions	W	308mm (12.1")
	H	493mm (19.4")
	D	289mm (11.4")
Net weight		9.4 kg (20.7 lbs)
Accessories		Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400
