Truss stand - 5m high x 9m wide Heavy duty winch up lighting box truss

BULKY ITEM - EXTRA FREIGHT CHARGES MAY APPLY PLEASE ENQUIRE

Package includes:

• 2x Soundking DLB003 heavy duty winch up stands
• 3x Alutruss ALU40130B 3m 290mm aluminium box-truss* - total length 9m when joined together
• 2x stand adaptors

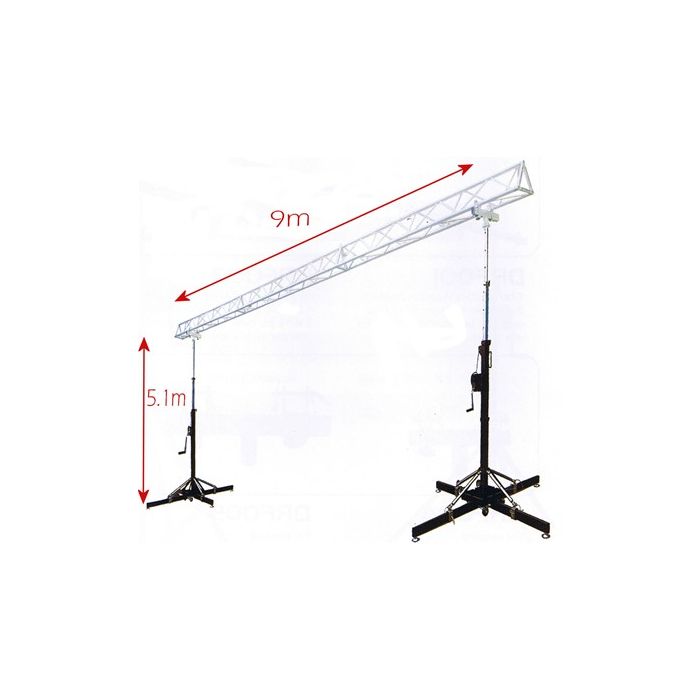

*Tri truss shown on the photo, box truss will be provided instead of tri truss

SPECIFICATION FOR THE WINCH UP STAND

Features:

Heavy duty winch up stand

Minimum height 1.95m

Maximum height 4.8m

Basement diameter 2.13m

Max load 150kg

Weight 63kg

Box Truss

290mm Truss is probably the most widely used truss in Australia. Perfect for general use over short runs, 290mm truss is used for DJ / band lighting trusses or small to medium shows where roof height or sight lines are an issue.

The truss comes fitted with conical couplers, spigots and safety pins for joining more pieces of truss (no bolts required).

TUV rated

SPECIFICATION FOR TADAPT

Truss adaptor suits box or tri-trusses 290mm wide

Fits standard 35mm lighting stand socket
