    TASCAM Sonicview 16 Digital Mixer

    Special Price A$8,188.00 Regular Price A$10,999.00

    Availability: Available

    Manufacturer
    SKU
    Mix-Sonicview 16
    Add to Compare

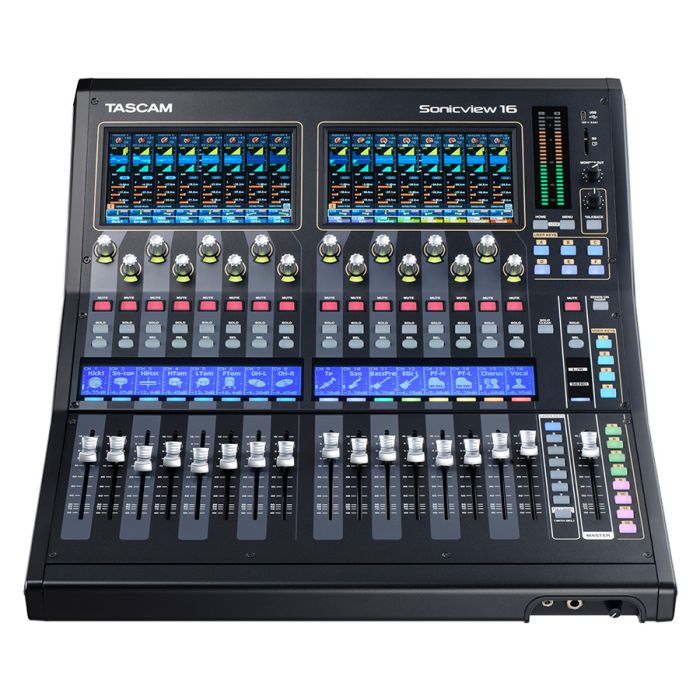

    TASCAM Sonicview 16

    Skip to the end of the images gallery
    main product photo
    Skip to the beginning of the images gallery
    Details
    TASCAM Sonicview

    TASCAM has a long history of high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview, TASCAM has created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.

    TASCAM Sonicview mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

    Intuitive Operation at Your Fingertips

    The TASCAM Sonicview 16 offers motorized channel faders in two banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.

    Intuitive Operation at Your Fingertips
    The Amazing VIEW

    The Amazing VIEW

    Truly the next generation in mixer user interfaces, the powerful intuitive TASCAM Visual Interactive Ergonomic Workflow (VIEW) system lets you quickly and easily configure the TASCAM Sonicview 16's two touch screens.

    VIEW

    Thanks to the VIEW user interface, there are three different ways to view your settings, and each touch screen can be configured independently, so you can monitor and control any combination of settings you want, in whichever screens you want, whenever you want. For instance, you could monitor levels for eight channels of vocals on screen 1, while tweaking the parametric EQ on a drum submix on screen 2.

    • To view the status of any eight adjacent channels at a glance, as you would see on vertical channel strips with an analog mixer, choose Channel Strip View.
    • In Module View, you can monitor and control any two sets of parameters for one single channel, including the compressor, graphic EQ, effects send, and more.
    • Individual View is the ultimate in customized displays. View any functions for any channel, group of channels, and more—all on different screens, simultaneously. For instance, you could simultaneously monitor the output bus meter on screen 1, and monitor levels on important input channels on screen 2.

    Channel Strip View

    Channel Strip View lets you monitor and control eight adjacent channels, and view them as virtual channel strips like an analog mixer layout.

    Channel Strip View
    Module View

    Module View

    Module View lets you monitor and control any two sets of parameters simultaneously for one single channel.

    Individual View

    Individual View lets you monitor and control a custom selection of functions for any channel or group of channels.

    Individual View

    High-end Audio Quality

    TASCAM Sonicview delivers the finest audio performance in its class, thanks to a 54-bit float-point FPGA mixing engine; continuous, high-definition 32-bit/96 kHz sampling; and 32-bit analog-to-digital converters. The mixing engine's float-point processing makes it possible to flexibly change levels without compromising resolution and FPGA mixing engine make it possible to ensures ultra-low latency, even in analog-to-analog connections. The result is no-compromises performance, including with Dante networks and in-line monitoring systems.

    Click for more on FPGA mixing engine, 54-bit float-point processing and 96kHz processing

    Input Channels and Processing

    The TASCAM Sonicview 16 offers 16 channels with XLR mic/line inputs or 8 channels with both XLR mic inputs and balanced TRS line inputs. You also get TRS insert points on two channels, two stereo pairs of RCA aux inputs, and an XLR input for a talkback mic.

    Input Channels and Processing
    Channel Control and Processing

    Channel Control and Processing

    There's much more to TASCAM Sonicview than meets the eye. Internally, TASCAM Sonicview mixers have a generous 40 mono channels, 2 stereo and 4 stereo FX return channels channels so you can fly in backing tracks to make a small praise band sound huge, accommodate additional physical audio inputs via the expansion slots for larger ensembles, manage sources from every part of a venue via the Dante network, and mix dozens of DAW tracks. Eight DCAs enable you to easily control groups of channels. The programmable layer keys select which custom combination of channels and output buses are controlled by the motorized faders.
    Each input channel can use any or all of 11 processing functions, which can be independently set:

    Delay (Input/Pre-fader) Phase Digital Trim High-pass Filter
    Gate/Expander/De-esser 4-band Parametric EQ Compressor/Ducker Solo
    Mix 1-22 Send/Pan (Pre/Post) FX 1-4 Send/Pan (Pre/Post) Fader/Pan/Mute to L/R

    Top-of-the Line Class 1 HDIA Mic Preamps

    Each TASCAM Sonicview microphone input feeds a TASCAM Class 1 HDIA (High Definition Instrumentation Architecture) preamp—the finest mic preamp we've ever made. Thanks to an instrumentation amplifier with extremely good noise characteristics in the first stage, Class 1 HDIA microphone preamps exhibit excellent EIN, signal-to-noise ratio, distortion ratio, and frequency response. TASCAM Sonicview ultra definition mic preamps will pick up the slightest nuance from rosin on a violin bow to the subtle dynamic changes of a voice or saxophone. The mic inputs can accept up to +32 dBu signals, providing plenty of headroom for sudden level increases.

    The combination of Class 1 HDIA preamps, 32-bit/96 kHz ADCs, and our 54-bit FPGA mixing engine is impressive but we didn't stop there: We conducted extensive internal and external evaluations to tune TASCAM Sonicview mixers for optimal performance. The result is best-in-class sound that will never disappoint.

    Class 1 HDIA

    Click for more on Class 1 HDIA mic-preamps

    Top-of-the Line Class 1 HDIA Mic Preamps
    Built-in USB Audio Interface and Stereo Recording

    Built-in USB Audio Interface and Stereo Recording

    TASCAM Sonicview's integrated 32-in/32-out USB audio interface makes it a first-rate front end for recording and broadcast studios, as well as for capturing live events. Record your choice of channel direct outs, flex buses, and the L/R main bus to your favorite DAW at up to 96 kHz with the same 32-bit precision used throughout the TASCAM Sonicview.

    Click for more on 32-bit quality internally and via USB

    You can simultaneously capture the main mix directly to the onboard stereo SD/USB recorder — handy when the band wants to listen to their performance at the hotel or on the bus. A top-panel port also lets you record in stereo to a USB flash drive.

    Dante-enabled for Superior Networking

    Dante-enabled for Superior Networking

    Dante® audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, houses of worship, and much more. TASCAM Sonicview consoles can serve as the audio center of these systems, thanks to a built-in 64-in/64-out Dante interface that supports Dante Domain Manager and have AES67 and SMPTE ST 2110 interoperability. Two Dante ports enable redundant streams.

    Click here for more on Dante capability

    Remote Control and Offline Editing

    Whether onstage, backstage, in a control room, or at the rear of a concert hall, you're always in full control of your TASCAM Sonicview 16 mixer. Just connect a Wi-Fi router to the TASCAM Sonicview's Ethernet port and use free TASCAM Sonicview Control software for macOS, Windows, and iPadOS to manage your TASCAM Sonicview 16 from virtually anywhere in the venue. Edit settings offline in advance so you're ready to go when a session or show begins, then make adjustments from the console or from the software.

    Remote Control and Offline Editing
    Work Quickly with Function Keys

    Work Quickly with Function Keys

    TASCAM Sonicview offers intuitive, analog-like operation, while providing a variety of convenient digital functions that can be customized as needed. Eighteen user-defined function keys can be assigned to recording with the internal recorder, playback, and more. Several keys are conveniently preassigned to functions such as Sends On Fader and Snapshot Recall but you can reassign them as desired. A footswitch (not included) can be used to tap in delay-time settings.

    Click for more on User Keys

    Clear, Mistake-free Navigation

    When you're mixing a show, broadcast, or crucial recording session, you can't afford to hit the wrong button or grab the wrong control. TASCAM Sonicview's mixing surface makes it easy to see at a glance what you're controlling, even in a dark concert hall. Each channel strip includes a channel-name LCD with a full-color LED. The User keys feature full-color LEDs, so you can group each input source and function by color and view them easily. The Solo and Channel Select keys have distinctive shapes, and the Mute key is guarded with a cap. With these features and the customizable touch panels, you always know where you are and what you're controlling.

    Clear, Mistake-free Navigation
    Work Quickly with Function Keys

    An additional monitor bus system and OSC/talkback capability add more versatility for broadcast and monitoring applications (supported in V1.5.0)

    Two monitor buses are now available with V1.5.0, Monitor 1 and Monitor 2. Each monitor section comes with 6 switchable monitor source presets with essential functions such as MUTE/DIMMER. In addition, a location setting has been added to automatically mute the monitor speakers when in the same enclosed space as a live microphone.
    Input sources can be freely assigned in the talkback section. Also, outputs can now be directly assigned into each bus or monitor, or to output routers. All of these settings and OSC on/off settings can be assigned to, and controlled by USER keys for quick control a variety of broadcast system and monitoring environments.

    Physical Outputs and Expansion Capability

    Physical Outputs and Expansion Capability

    As you'd expect, the TASCAM Sonicview 16 offers plenty of physical outputs, with 16 XLR line outputs, the L/R main outputs, and two XLR monitor outputs. If that's not enough, you can add more analog outputs, MADI, Dante or AES/EBU I/O with an optional expansion card, in addition to the IF-MTR32 multi-track SD recording card.

    Read More

    Physical Outputs and Expansion Capability




    To further expand the system, add one or more optional 16-in/16-out SB-16D Dante-networked stage boxes. Microphone gain for all 16 inputs can be remotely controlled from the TASCAM Sonicview 16, and the SB-16D can be used as a floor box or rack mounted.

    Read More

    Output Buses and Processing

    Output Buses and Processing

    You get a wealth of output buses, with powerful signal processing and flexible routing options. In addition to the main L/R stereo bus, the TASCAM Sonicview 16 provides 22 output flex buses, each of which is configurable as a subgroup, aux, or matrix. Provide multiple stereo in-ear monitor submixes without running short of buses and send to the analog outputs; create matrix mixes for multiple loudspeaker zones and send over the Dante network for restaurants and worship performances; and more. All output buses are equipped with 31-band graphic EQ, realtime analyzer functions, 4-band parametric EQ, compressor/ducker, delay, plus Solo, Pan, and Mute. Four additional effects processors can be assigned to any individual mixer channels for even more including an astounding reverb effect.

    Read More

    External Control, Clocking, and More

    External Control, Clocking, and More

    In addition to audio I/O, Dante, and USB ports, TASCAM Sonicview is equipped with 8-in/8-out GPIO terminals (on a DB25 connector) for external control, making it suitable for events and relay applications. BNC word clock In and Out/Thru enable digital audio synchronization, and an Ethernet port can connect to a Wi-Fi router for wireless control. TASCAM Sonicview also has two TASCAM expansion slots; accepts a selection of expansion cards.

    Read More

    The Music Never Stops

    The Music Never Stops

    Your business depends on reliable equipment that will stay in service with minimal interruptions, and we designed TASCAM Sonicview accordingly. TASCAM Sonicview's mixing engine and real-time operating system are completely separated from the physical mixing surface, greatly improving stability. In the unlikely event that the mixing surface becomes inoperable, the sound won't stop, and operation can be restored by restarting the control surface operating system. Meanwhile, the show will go on.

    next
    More Information
    More Information
    Specification
    Mixer Specifications
    Processing Capability
    Input 52 [Monaural: 40, Stereo: 2 (Stereo),Fx Return: 4 (Stereo)]
    Bus 32 [AUX/GROUP Switchable MIX bus: 22, MAIN L/R bus: 1 (Stereo), Fx Send bus: 4 (Stereo)]
    Built in Fx 4
    Input Ports
    96 kHz Max 152 ports
    48 kHz Max 248 ports
    MIC/LINE 16
    Stereo (RCA) 4 (2xStereo)
    Dante 32 (96 kHz), 64 (48 kHz)
    SLOT 32x2 (96 kHz), 64x2 (48 kHz)
    USB Audio 32
    Built in Player 2 (1xStereo)
    OSC 1
    TALKBACK 1
    Output Ports
    96 kHz Max 148 ports
    48 kHz Max 244 ports
    LINE 16
    Dante 32 (96 kHz), 64 (48 kHz)
    SLOT 32x2 (96 kHz), 64x2 (48 kHz)
    USB Audio 32
    MONITOR OUT (Analog) 2 (1xStereo)
    Built in Recorder 2 (1xStereo)
    I/O Ports
    Analog Insert I/O 2 I/O (MIC/LINE Input 7/8)
    Digital Signal Processing
    Mixer Engine 96 kHz/54 bit floating point
    ADC 96 kHz, 32 bit
    DAC 96 kHz, 24 bit
    Digital I/O sampling rate 96 kHz, 48 kHz
    Analog Audio Inputs/Outputs
    MIC/LINE inputs (1-16 channels)
    Connector XLR-3-31 equivalent (1:GND,2:HOT,3:COLD)
    Max input level +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
    Min input level -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
    Input impedance 5.0kΩ or more
    Phantom power +48V available
    LINE inputs (9-16 channels)
    Connector Connector: Φ6.3mm(1/4")TRS phone jack, Balanced (TIP: HOT, RING: COLD, SLEEVE: GND)
    Max input level +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
    Min input level -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
    Input impedance 5.0kΩ or more
    INSERT (7-8 channels)
    Connector Φ6.3mm(1/4")TRS phone jack (TIP: SEND, RING: RETURN, SLEEVE: GND)
    RETURN (RING)
    Max input level +18dBu
    Nominal Input level -2dBu
    Input impedance 5.0kΩ or more
    SEND (TIP)
    Max input level +18dBu
    Nominal Input level -2dBu
    Input impedance 100kΩ or less
    TALKBACK inputs
    Connector XLR-3-31 equivalent (1: GND,2: HOT,3: COLD)
    Max input level +10dBu
    Min input level -65dBu
    Gain range 0 - 55dB
    Input impedance 5.0kΩ or more
    Phantom power +48V available
    Stereo (RCA) inputs (1-2)
    Connector RCA pin jack
    Max input level +6dBV (1.995Vrms)
    Nominal Input level -10dBV (0.316Vrms)
    Head room 16dB
    Input impedance 10kΩ or more
    LINE Outputs (1-16 channels)
    Connector XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
    Nominal output level +6dBu (D.ref: -9dBFS)
    +4dBu (D.ref: -14dBFS, -16dBFS)
    +4dBu or 0dBu (D.ref: -18dBFS, -20dBFS)
    Max output level +15dBu (D.ref.: -9dBFS, A.ref.: +6dBu)
    +18dBu (D.ref.: -14dBFS, A.ref.: +4dBu)
    +20dBu (D.ref.: -16dBFS, A.ref.: +4dBu)
    +18dBu (D.ref.: -18dBFS, A.ref.: 0dBu)
    +20dBu (D.ref.: -20dBFS, A.ref.: 0dBu)
    +22dBu (D.ref.: -18dBFS, A.ref.: +4dBu)
    +24dBu (D.ref.: -20dBFS, A.ref.: +4dBu)
    Output impedance 100Ω or less
    MONITOR Outputs (L,R)
    Connector XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
    Max output level +24dBu
    Nominal output level +4dBu
    Output impedance 100Ω or less
    Headphone Output
    Connector Φ6.3mm(1/4") stereo phone jack and 3.5mm stereo mini phone jack
    Max output power 100mW + 100mW (32Ω load, when connected to only one side)
    Digital Audio Inputs/Outputs
    USB Audio
    Connector Type-B
    Input 32ch *USB to Sonicview
    Output 32ch *Sonicview to USB
    Sampling rate 48 kHz, 96 kHz
    Bit depth 32 bit
    Dante (Primary/Secondary)
    Connector etherCON Cat5e compatible
    Number of channels 64 channels (48 kHz), 32 channels (96 kHz)
    Ethernet 1000BASE-T (IEEE802.3ab)
    Cable CAT5e STP
      Supports Redundant mode and Switched mode
    Control Inputs/Outputs
    GPIO DSUB25pin female, inch type
    Input circuit pull up (5V)
    Output circuit Open corrector
    Output impedance 10Ω
    Voltage Resistance 20V
    Max Current 35mA
    Max supply current (+5V) 50mA
    FOOT SWITCH
    Connector Φ6.3mm(1/4")TS phone jack (TIP:SIG, SLEEVE: GND)
    ETHERNET (for control)
    Connector RJ-45
    Ethernet 100BASE-TX, 1000BASE-T
    Protocol TCP/IP
    Other Inputs/Outputs
    WORD IN
    Connector BNC (Unbalanced)
    Input level 0.5Vpp - 5Vpp
    Impedance 75Ω +/-10%
    Input frequency 48 kHz, 96 kHz
    Allowable frequency deviation +/-100ppm
    WORD THRU/OUT
    Connector BNC (Unbalanced)
    Output level equivalent to 5V TTL
    Output frequency 48kHz, 96kHz
    Impedance 75Ω +/-10%
    USB (Top panel) For Keyboard, and Mass Storage
    Connector Type-C
    Standard USB2.0 HIGH SPEED (480Mbps)
    Bus power 5V-0.5A
    Class HID, Mass storage
    USB (Rear panel) For Audio Interface (Dedicated driver required)
    Connector Type-B
    Standard USB2.0 HIGH SPEED (480Mbps)
    Lamp
    Connector XLR 4pin female (1:N.A., 2:N.A., 3:GND, 4:+12V)
    Supply voltage 0V-12V (Adjustable brightness)
    Max power 5W
    Recorder/Player
    Media
    SD Card SDHC (8GB-32GB Class10 or more), SDXC (64GB-128GB Class10 or more)
    USB memory Size: 8GB-128GB (Play Only)
    Supported File System: FAT32 (SDHC, USB memory)
    exFAT (SDXC, USB memory)
    Stereo recording/Playback Formats
    WAV/BWF
    Recording 48 kHz/96 kHz, 24 bit, 2ch
    Playback 48 kHz/96 kHz, 16/24bit、2ch
    MP3
    Playback 44.1 kHz/48 kHz, 32kbps~320kbps
    AAC
    Playback 44.1 kHz/48 kHz, 64kbps~320kbps
    General
    Main display 7 inch, Colored touch panel display x2
    Resolution 800x480
    Channel display Monochrome x2
    Resolution 384x68
    Fader 100mm stroke, Motor driven
    Overall dimensions 472.0(W) x 228.1(H) x 554.4(D) mm
    18.59 (W) x 8.99(H) x 21.83 (D) inch
    Weight 13kg / 28.67lb
    AC IN AC100V-240V 50/60Hz
    Power consumption 65W
    Operating Temperatures 0 - 40 ℃
    Computer system requirements
    USB Audio Interface
    Windows
    Supported Operating System Windows 11 64 bit
    Windows 10 64 bit
    Computer hardware requirements Windows computer with a USB2.0(or higher) port.
    Mac
    Supported Operating System macOS Monterey (12)
    macOS Big Sur (11)
    macOS Catalina (10.15)
    Computer hardware requirements Mac with a USB2.0(or higher) port.
    Control Software
    Windows Windows 11 64 bit
    Windows 10 64 bit
    Mac macOS Monterey (12)
    macOS Big Sur (11)
    macOS Catalina (10.15)
    iPadOS iPadOS 15
    iPadOS 14
    Included Items
    TASCAM Sonicview 16 x1
    Power code (JAPAN USA/EUROPE/OCEANIA) x3
    Owner's manual with warranty x1
    TASCAM ID registration guide x1
    Options
    AK-DCSV16: Dust cover
    AK-TB15: Tablet shelf
    AK-RKSV16: Rack mount kit
    IF-AE16: AES interface card, I/O 16ch
    IF-DA64: Dante interface card, I/O 64ch, Redundant Supported
    IF-MA64/EX: MADI interface card, I/O 64ch Coaxial/Optical
    IF-MA64/BN: MADI interface card, I/O 64ch Coaxial
    IF-AN16OUT: Analog outputs interface card, 16ch
    IF-MTR32 (Scheduled to be released in 2023): MTR card, 32 tracks, punch-in
    SB-16D (Scheduled to be released in 2023): Stage box, Dante, 16ch I/O
    Package 1 Pack
    Specification
    Mixer Specifications
    Processing Capability
    Input 52 [Monaural: 40, Stereo: 2 (Stereo),Fx Return: 4 (Stereo)]
    Bus 32 [AUX/GROUP Switchable MIX bus: 22, MAIN L/R bus: 1 (Stereo), Fx Send bus: 4 (Stereo)]
    Built in Fx 4
    Input Ports
    96 kHz Max 152 ports
    48 kHz Max 248 ports
    MIC/LINE 16
    Stereo (RCA) 4 (2xStereo)
    Dante 32 (96 kHz), 64 (48 kHz)
    SLOT 32x2 (96 kHz), 64x2 (48 kHz)
    USB Audio 32
    Built in Player 2 (1xStereo)
    OSC 1
    TALKBACK 1
    Output Ports
    96 kHz Max 148 ports
    48 kHz Max 244 ports
    LINE 16
    Dante 32 (96 kHz), 64 (48 kHz)
    SLOT 32x2 (96 kHz), 64x2 (48 kHz)
    USB Audio 32
    MONITOR OUT (Analog) 2 (1xStereo)
    Built in Recorder 2 (1xStereo)
    I/O Ports
    Analog Insert I/O 2 I/O (MIC/LINE Input 7/8)
    Digital Signal Processing
    Mixer Engine 96 kHz/54 bit floating point
    ADC 96 kHz, 32 bit
    DAC 96 kHz, 24 bit
    Digital I/O sampling rate 96 kHz, 48 kHz
    Analog Audio Inputs/Outputs
    MIC/LINE inputs (1-16 channels)
    Connector XLR-3-31 equivalent (1:GND,2:HOT,3:COLD)
    Max input level +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
    Min input level -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
    Input impedance 5.0kΩ or more
    Phantom power +48V available
    LINE inputs (9-16 channels)
    Connector Connector: Φ6.3mm(1/4")TRS phone jack, Balanced (TIP: HOT, RING: COLD, SLEEVE: GND)
    Max input level +12dBu (PAD=OFF, TRIM MIN), +32dBu (PAD=ON, TRIM MIN)
    Min input level -62dBu (PAD=OFF, TRIM MAX), -42dBu (PAD=ON, TRIM MAX)
    Input impedance 5.0kΩ or more
    INSERT (7-8 channels)
    Connector Φ6.3mm(1/4")TRS phone jack (TIP: SEND, RING: RETURN, SLEEVE: GND)
    RETURN (RING)
    Max input level +18dBu
    Nominal Input level -2dBu
    Input impedance 5.0kΩ or more
    SEND (TIP)
    Max input level +18dBu
    Nominal Input level -2dBu
    Input impedance 100kΩ or less
    TALKBACK inputs
    Connector XLR-3-31 equivalent (1: GND,2: HOT,3: COLD)
    Max input level +10dBu
    Min input level -65dBu
    Gain range 0 - 55dB
    Input impedance 5.0kΩ or more
    Phantom power +48V available
    Stereo (RCA) inputs (1-2)
    Connector RCA pin jack
    Max input level +6dBV (1.995Vrms)
    Nominal Input level -10dBV (0.316Vrms)
    Head room 16dB
    Input impedance 10kΩ or more
    LINE Outputs (1-16 channels)
    Connector XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
    Nominal output level +6dBu (D.ref: -9dBFS)
    +4dBu (D.ref: -14dBFS, -16dBFS)
    +4dBu or 0dBu (D.ref: -18dBFS, -20dBFS)
    Max output level +15dBu (D.ref.: -9dBFS, A.ref.: +6dBu)
    +18dBu (D.ref.: -14dBFS, A.ref.: +4dBu)
    +20dBu (D.ref.: -16dBFS, A.ref.: +4dBu)
    +18dBu (D.ref.: -18dBFS, A.ref.: 0dBu)
    +20dBu (D.ref.: -20dBFS, A.ref.: 0dBu)
    +22dBu (D.ref.: -18dBFS, A.ref.: +4dBu)
    +24dBu (D.ref.: -20dBFS, A.ref.: +4dBu)
    Output impedance 100Ω or less
    MONITOR Outputs (L,R)
    Connector XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD)
    Max output level +24dBu
    Nominal output level +4dBu
    Output impedance 100Ω or less
    Headphone Output
    Connector Φ6.3mm(1/4") stereo phone jack and 3.5mm stereo mini phone jack
    Max output power 100mW + 100mW (32Ω load, when connected to only one side)
    Digital Audio Inputs/Outputs
    USB Audio
    Connector Type-B
    Input 32ch *USB to Sonicview
    Output 32ch *Sonicview to USB
    Sampling rate 48 kHz, 96 kHz
    Bit depth 32 bit
    Dante (Primary/Secondary)
    Connector etherCON Cat5e compatible
    Number of channels 64 channels (48 kHz), 32 channels (96 kHz)
    Ethernet 1000BASE-T (IEEE802.3ab)
    Cable CAT5e STP
      Supports Redundant mode and Switched mode
    Control Inputs/Outputs
    GPIO DSUB25pin female, inch type
    Input circuit pull up (5V)
    Output circuit Open corrector
    Output impedance 10Ω
    Voltage Resistance 20V
    Max Current 35mA
    Max supply current (+5V) 50mA
    FOOT SWITCH
    Connector Φ6.3mm(1/4")TS phone jack (TIP:SIG, SLEEVE: GND)
    ETHERNET (for control)
    Connector RJ-45
    Ethernet 100BASE-TX, 1000BASE-T
    Protocol TCP/IP
    Other Inputs/Outputs
    WORD IN
    Connector BNC (Unbalanced)
    Input level 0.5Vpp - 5Vpp
    Impedance 75Ω +/-10%
    Input frequency 48 kHz, 96 kHz
    Allowable frequency deviation +/-100ppm
    WORD THRU/OUT
    Connector BNC (Unbalanced)
    Output level equivalent to 5V TTL
    Output frequency 48kHz, 96kHz
    Impedance 75Ω +/-10%
    USB (Top panel) For Keyboard, and Mass Storage
    Connector Type-C
    Standard USB2.0 HIGH SPEED (480Mbps)
    Bus power 5V-0.5A
    Class HID, Mass storage
    USB (Rear panel) For Audio Interface (Dedicated driver required)
    Connector Type-B
    Standard USB2.0 HIGH SPEED (480Mbps)
    Lamp
    Connector XLR 4pin female (1:N.A., 2:N.A., 3:GND, 4:+12V)
    Supply voltage 0V-12V (Adjustable brightness)
    Max power 5W
    Recorder/Player
    Media
    SD Card SDHC (8GB-32GB Class10 or more), SDXC (64GB-128GB Class10 or more)
    USB memory Size: 8GB-128GB (Play Only)
    Supported File System: FAT32 (SDHC, USB memory)
    exFAT (SDXC, USB memory)
    Stereo recording/Playback Formats
    WAV/BWF
    Recording 48 kHz/96 kHz, 24 bit, 2ch
    Playback 48 kHz/96 kHz, 16/24bit、2ch
    MP3
    Playback 44.1 kHz/48 kHz, 32kbps~320kbps
    AAC
    Playback 44.1 kHz/48 kHz, 64kbps~320kbps
    General
    Main display 7 inch, Colored touch panel display x2
    Resolution 800x480
    Channel display Monochrome x2
    Resolution 384x68
    Fader 100mm stroke, Motor driven
    Overall dimensions 472.0(W) x 228.1(H) x 554.4(D) mm
    18.59 (W) x 8.99(H) x 21.83 (D) inch
    Weight 13kg / 28.67lb
    AC IN AC100V-240V 50/60Hz
    Power consumption 65W
    Operating Temperatures 0 - 40 ℃
    Computer system requirements
    USB Audio Interface
    Windows
    Supported Operating System Windows 11 64 bit
    Windows 10 64 bit
    Computer hardware requirements Windows computer with a USB2.0(or higher) port.
    Mac
    Supported Operating System macOS Monterey (12)
    macOS Big Sur (11)
    macOS Catalina (10.15)
    Computer hardware requirements Mac with a USB2.0(or higher) port.
    Control Software
    Windows Windows 11 64 bit
    Windows 10 64 bit
    Mac macOS Monterey (12)
    macOS Big Sur (11)
    macOS Catalina (10.15)
    iPadOS iPadOS 15
    iPadOS 14
    Included Items
    TASCAM Sonicview 16 x1
    Power code (JAPAN USA/EUROPE/OCEANIA) x3
    Owner's manual with warranty x1
    TASCAM ID registration guide x1
    Options
    AK-DCSV16: Dust cover
    AK-TB15: Tablet shelf
    AK-RKSV16: Rack mount kit
    IF-AE16: AES interface card, I/O 16ch
    IF-DA64: Dante interface card, I/O 64ch, Redundant Supported
    IF-MA64/EX: MADI interface card, I/O 64ch Coaxial/Optical
    IF-MA64/BN: MADI interface card, I/O 64ch Coaxial
    IF-AN16OUT: Analog outputs interface card, 16ch
    IF-MTR32 (Scheduled to be released in 2023): MTR card, 32 tracks, punch-in
    SB-16D (Scheduled to be released in 2023): Stage box, Dante, 16ch I/O

    Categories

  • PA / DJ EQUIPMENT
    • SPEAKERS & SUBS
      • PA PACKAGES
        • EV SPEAKER PACKAGES
        • YAMAHA SPEAKER PACKAGES
        • DYNACORD SPEAKER PACKAGES
        • RCF SPEAKER PACKAGES
      • POWERED SPEAKERS
      • POWERED SUBWOOFERS
      • PASSIVE SPEAKERS
      • PASSIVE SUBWOOFERS
      • INSTALLATION SPEAKERS
    • AMPLIFIERS
    • MIXERS
      • DIGITAL MIXERS
      • POWERED MIXERS
      • UNPOWERED MIXERS
    • MICROPHONES
      • IN-EAR MONITORING
      • WIRED MICROPHONES
      • WIRELESS MICROPHONES
      • WIRELESS HEADSET & LAPEL
    • DJ EQUIPMENT
    • HEADPHONES
    • STUDIO MONITORS
    • PORTABLE PA
    • SIGNAL PROCESSORS
    • SPEAKER COMPONENTS
    • POWER DISTRIBUTION
  • LIGHTING
    • DJ LIGHTING, EFFECTS & LASERS
    • DMX CONTROLLERS
    • SMOKE MACHINES & FLUIDS
    • STAGE & THEATRE LIGHTING
  • STANDS
    • LIGHTING STANDS
    • MICROPHONE STANDS
    • RACKS & MUSIC STANDS
    • SPEAKER STANDS & BRACKETS
  • CASES & BAGS
    • EQUIPMENT BAGS
    • EQUIPMENT CASES
      • ABS
      • AMPLIFIER & EFFECTS CASES
      • MIXER CASES
      • CABLE PACKERS & UTILITY CASES
      • DJ CASES
    • RACK HARDWARE
  • TRUSSING
    • BASE PLATES
    • BOX TRUSS
    • CIRCULAR TRUSS
    • FLAT TRUSS & SINGLE PIPE
    • LIGHTING BRIDGE SYSTEMS
    • TRI TRUSS
    • TRUSS UPRIGHT STANDS
    • CLAMPS & HARDWARE
      • TRUSS & LIGHTING CLAMPS
      • TRUSS ACCESSORIES
  • DRAPE SUPPORT SYSTEMS
    • DRAPE SUPPORT KITS
    • DRAPES & CURTAINS
    • PIPE & DRAPE ACCESSORIES
    • SUPPORT COMPONENTS
  • STAGING
    • HEIGHT ADJUSTABLE STAGE
    • FIXED HEIGHT STAGE
    • STAIRS & STAGE ACCESSORIES
  • CABLES & ACCESSORIES
    • BULK CABLE
    • CONNECTORS & ADAPTORS
    • LOOMS & MULTICORES
    • READY MADE CABLES
  • SALE
  • BRANDS
    • ALTO
    • AKG
    • Allen & Heath
    • ALUTRUSS
    • ANTARI
    • Audio Technica
    • Austrian Audio
    • BEHRINGER
    • BOB AUDIO
    • CASETOGO
    • CERWIN VEGA
    • CHIAYO
    • Cordial Cables
    • CR-TEC
    • CROWN
    • DB TECHNOLOGIES
    • DBX
    • DUNE
    • DYNACORD
    • EV
    • EVENT LIGHTING
    • FURMAN
    • GATOR
    • JANDS
    • JBL
    • JDS
    • KALI AUDIO
    • K&M
    • KRK
    • LD Systems
    • LEXICON
    • LIGHT EMOTION
    • NEXO
    • PASGAO
    • PIONEER
    • Quest Engineering
    • RCF
    • SHURE
    • SOUNDCRAFT
    • SOUNDKING
    • SPEED-CASE
    • SPIDER SYSTEMS
    • SUPERLUX
    • TASCAM
    • QSC
    • YAMAHA AMPLIFIERS
    • YAMAHA MIXERS
    • YAMAHA SPEAKERS
    • WHARFEDALE
    • AlphaTheta
  • Gift Voucher

  • MANUFACTURERS

  • AKG
  • ALUTRUSS
  • ANTARI
  • BOB AUDIO
  • CR-TEC
  • CASETOGO
  • CERWIN VEGA
  • CHIAYO
  • CROWN
  • DUNE
  • DYNACORD
  • EV
  • EVENT LIGHTING
  • FURMAN
  • GATOR
  • JBL
  • JDS
  • JANDS
  • K&M
  • LEXICON
  • LIGHT EMOTION
  • PASGAO
  • PIONEER
  • SHURE
  • SOUNDCRAFT
  • SOUNDKING
  • SPEED-CASE
  • SUPERLUX
  • WHARFEDALE
  • YAMAHA AMPLIFIERS
  • YAMAHA MIXERS
  • YAMAHA SPEAKERS
  • DB TECHNOLOGIES
  • DBX
  • SPIDER SYSTEMS
  • PARALLEL AUDIO
  • KALI AUDIO
  • KRK
  • RCF
  • Quest Engineering
  • LD Systems
  • BEHRINGER
  • Austrian Audio
  • Cordial Cables
  • NEXO
  • ALTO
  • QSC
  • Allen & Heath
  • Audio Technica
  • TASCAM
  • AlphaTheta

  • Compare Products
    1. Remove This Item
    Compare
    Clear All
    You have no items to compare.
    My Wish List
    Last Added Items
    1. Add to Cart
      Remove This Item
    Go to Wish List
    You have no items in your wish list.

    JD’s Sound and Lighting commenced trading in 1997. Initially, the core business was primarily involved with hire of professional sound and lighting equipment to DJs and bands as well as installation in nightclubs, pubs, schools and various other venues.

    INFORMATION
  • About Us
  • Privacy Policy
  • Terms & Conditions
  • Contact Us
  • CUSTOMER SERVICES
  • Customer Assistance
  • Delivery Information
  • International Shipping
  • Shipping Information
  • MY ACCOUNT
  • My Products
  • My Orders
  • My Account
  • Shipping Status
  • © 2000-2025 JD Sound Pty Ltd. All rights reserved.

    Copyright © 2013-present Magento, Inc. All rights reserved.
