SoundTube Entertainment SM1001p 10" 200W High-Powered Subwoofer (Black)
ONLY 1 LEFT!

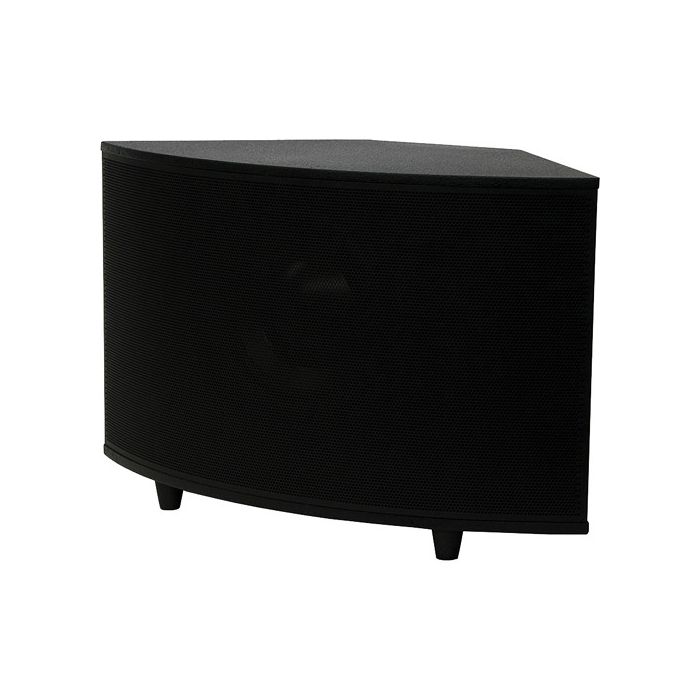

The black SM1001p 10" 200W High-Powered Surface-Mount Subwoofer from SoundTube Entertainment features a 10" active polypropylene woofer and a 10" polypropylene passive radiator to deliver maximum low-frequency response down to 41 Hz (-10 dB). Mated to a steel basket and an MDF and plywood enclosure, the subwoofer delivers serious low frequency punch (111 dB) with minimal distortion.
Engineered with a 200W Class D amplifier, a 70.7V high level input and full-range balanced XLR outputs, the subwoofer offers a user selectable 50 to 200 Hz high-pass filter and a 0/180° phase switch.
The SM1001p is a background to foreground subwoofer for installations where high-quality, true bass response and rapid installation are critical. Aerobic rooms, retail restaurants, nightclubs, hotels, bars, theme parks, arenas, ball-rooms and churches are good fits for this subwoofer.
- Powered subwoofer with one 10" active woofer and one 10" passive radiator, incorporating a 200 W Class D amplifier
- Polypropylene woofers with butyl rubber surrounds mated to steel baskets
- Solid cabinet with textured black paint finish
- High output (111 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize the listener's low frequency experience
- Powder-coated steel grilles provide lasting durability
- Inputs include a balanced XLR and 70.7V high-level binding post input
- 70.7V high level input for adding powered bass in distributed systems
- Full-range balanced XLR output with selectable 50 Hz to 200 Hz high-pass filters with full range LFE position
- 0/180° phase switch
- Safety cable and forged eyebolt included
We supply a wide range of Powered Subwoofer.
| Custom Stock Status | ONLY {qty} LEFT! | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification |
Packaging Info
|
||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack |
| System Type | 10" (254 mm) active woofer with a 10" (254 mm) passive radiator |
| Sensitivity | 92 dB at 2.83 V/1 m, 92 dB at 1 W/1 m |
| Frequency Response | - 3 dB: 55 to 118 Hz, -10 dB: 41 to 224 Hz |
| Max. Program Power | 300 W |
| Max. Continuous Power RMS | 200 W |
| Max. Power SPL | 111 dB at 1 m |
| Low Frequency Transducer | One active 10" (254 mm) polypropylene cone with butyl rubber surround, one passive 10" (254 mm) polypropylene cone with butyl rubber surround |
| Low Frequency Voice Coil | 1.38" (35.0 mm) |
| Crossover Frequency | Variable, user-selectable 50 Hz through 200 Hz |
| High-Pass Filter | Variable, user-selectable 50 Hz through 200 Hz |
| Enclosure Material | MDF with plywood top and back |
| Input | Balanced XLR |
| Output | Balanced XLR |
| Approvals | Regulatory CE, RoHS |
| Height | 14" (355.6 mm) excluding feet |
| Width | 24.6" (624.6 mm) |
| Depth | 14.4" (364.7 mm) excluding SM bracket |
| Weight | 27 lb (12.3 kg) |
| Package Weight | 37 lb |
| Box Dimensions (LxWxH) | 28 x 19 x 14" |
