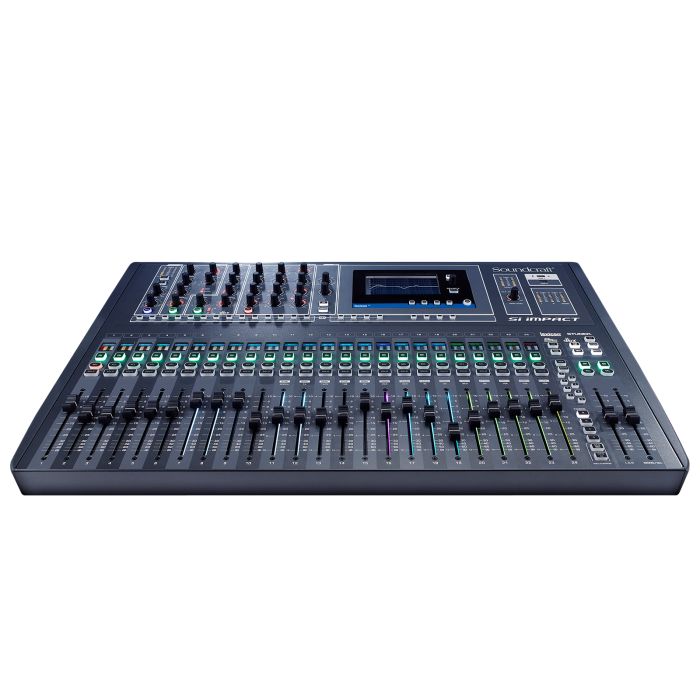

Soundcraft Si Impact 32ch Digital Mixer

Categories

Live Sound / PA

Lighting

Stands

Smoke Machines & Fluids

CLEARANCE!

News

Home /
Soundcraft Si Impact 32ch Digital Mixer

JavaScript seems to be disabled in your browser.
You must have JavaScript enabled in your browser to utilize the functionality of this website.

Item Description
Specifications
Reviews
Buyers Guide

Drawing on over 40 years experience in live sound mixing, Si Impact brings the latest digital mix innovations together with the unrivalled sound quality of Soundcraft. Designed to be as simple as an analog mixer, but offer radical workflow enhancements such as the unique FaderGlow™ system, massive DSP power, and a pristine 32-in/32-out USB audio interface, Si Impact delivers digital live sound mixing and recording for those who refuse to compromise on audio quality.

Combining One-Knob-One-Function control with unique features like FaderGlow™, Soundcraft combines analogue workflow with digital flexibility. FaderGlow™illuminates the fader track in different colours to provide at-a-glance status information on precisely what the fader is controlling – aux sends, FX sends or even the graphic EQ that's available on every bus. Each fader channel also features a clear multi-color LCD display - giving 'at a glance' information on levels and offering a fully customisable'scribble strip' to name your channels.

With built-in connectivity for an optional Soundcraft Stagebox, Si Impact lets you put your I/O where you need it.
Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable.

Key Features:

32 Mic Inputs
8 XLR/1/4" Combi-jacks for line inputs and instruments
40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
31 Output busses (All with full DSP processing and GEQ)
4-band Fully Parametric EQ on each channel and bus
8 VCAs + 8 Mute groups
26 motorised faders (24 input + LR/Mono)
4 fully customisable Fader Layers
Built-in Stagebox Connectivity
5" touchscreen display
Multi-Colour LCD Channel Displays on each input fader
4 studio-grade Lexicon Effects engines and dedicated FX busses
BSS Graphic Equalisers on every bus
20 sub-group / aux busses
4 mono/stereo matrix busses
32x32 USB audio interface for multi-track recording and playback

Features

24 (16 - Si Expression 1, 32 – Si Expression 3) mono mic inputs

4 line inputs

66 inputs to mix

1 ViSi Connect™ option card slot for 64 x 64 input/output expansion

Freely assignable faders and patching

Pre/Post selection per input per bus

AES in and out

Global mode encoders

Soundcraft FaderGlow™

GEQ on every bus

20 sub-group / aux busses

4 FX busses

8 Matrix busses

LR and C Mix busses

4 Stereo Lexicon Effects engines

Delay on inputs and outputs

4 Mute Groups

Freely assignable insert loops

Harman HiQnet integration

Colour touch screen interface

Si Expression 2 Highlights

Massive mix capacity – 66 inputs to mix in a small format live sound digital mixer

1 ViSi Connect™ option card slot for 64x64 expandsion of digital I/O including the MultiDigital Card (Firewire/USB/ADAT), BSS Digital Audio Bus (BLU Link), Dante™, CAT5 or optical MADI, AVIOM™, CobraNet™ and others.

Assignable Fader Layers - Customise each of the four fader layer pages to meet your needs or add/insert faders to accommodate that additional mic that was not in the patch list!

1 Control = 1 Function - With each control dedicated to a given function there is never any 'layering' of controls or navigating through screens; this allows the Si Performer controls to be labeled on the surface just as they would have been on an analogue mixer.

TOTEM™ - The One Touch Easy Mix; press a single key to mix to an AUX, FX or Matrix bus, the surface and monitoring instantly reconfigure to allow instant mixing to your chosen bus on the faders.

Soundcraft FaderGlow™ - Illuminates the fader slots according to function with clearly defined colours for FX, Stereo, Linked Mono, GEQ, POST Fade Aux, PRE Fade Aux; you'll never be lost again!

BSS® GEQ - With a BSS GEQ on every bus there is never any need to assign from a pool of resources and you will never 'run out' of processing.

Security Lockout - Lock the whole console or just selected elements, manage the security with the users and profile settings.

Personal Monitoring Interface - When used with the Si BLU link option card, the Si Performer is a perfect partner to the dbx PMC16 Personal Monitoring System , using simple Cat5 cabling for easy setup.

D.O.G.S. (Direct Out Gain Stabiliser) - Prevents manual change of a mic gain control affecting direct out levels, perfect when 2 consoles share a stagebox or when recording the channel direct outputs.

Global Mode Controls - A row of rotary controls above each fader assignable at the touch of a button to be GAIN, PAN or HPF for all of the inputs allowing instant access to the core functions.

Copy & Paste - Copy whole channels, busses, mixes, Lexicon™ effects, a single part such as the EQ or multiple parts like the channel gate and compressor.

Instant Access Keys - Dedicated keys on the front panel for STORE, RECALL, NEXT, MUTE 1-4, TAP TEMPO and more negate the need to dive into screen & context menus.

Function Focus – Whenever a control is moved or SELect key pressed the screen displays information about the channel identifying the absolute value of the controls and the channel name, number etc.
