RCF NX985A 15″ PROFESSIONAL THREE-WAY ACTIVE SPEAKER
LOW STOCK 2 LEFT
3-way active speaker
- Up to 138 dB sound pressure level
- Class-D power amplifier, 2100 watts power
- Linear frequency response, frequency range 40 - 20,000 Hz
- 1.75-inch titanium/neodymium compression driver
- 8-inch midrange driver with 2.5-inch voice coil
- 15-inch high-output woofer
- Bass Motion Control and FiRPHASE signal processing
- M10 flying points
- IP-certified Power Twist T1 TOP inputs and outputs
Newly developed 3-way active speaker from the ground up
Renowned for professional loudspeakers and sound systems, Italian manufacturer RCF presents the NX 985-A, a 3-way active speaker designed from the ground up to deliver outstanding audio quality for bands, DJs, clubs and rental companies. The industry-leading combination of RCF premium transducers and a 2-channel, 2100-watt power amplifier ensures a consistent 100° x 60° coverage angle and a distortion-free sound pressure level of up to 138 dB. The 3-way design consists of a 1.75-inch neodymium compression driver with constant-directivity waveguide, an 8-inch cone midrange driver with phase-coherent waveguide, and a 15-inch high-power woofer.
Whether stand-alone, flown or combined with RCF's SUB8008-AS subwoofer, NX 985-A guarantees high sound pressure levels in all frequency ranges with tremendous fidelity and reliability. The sturdy, tour-ready cabinet made of high-quality multiplex is easy to transport and can be installed securely thanks to the integrated mounting points.
The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

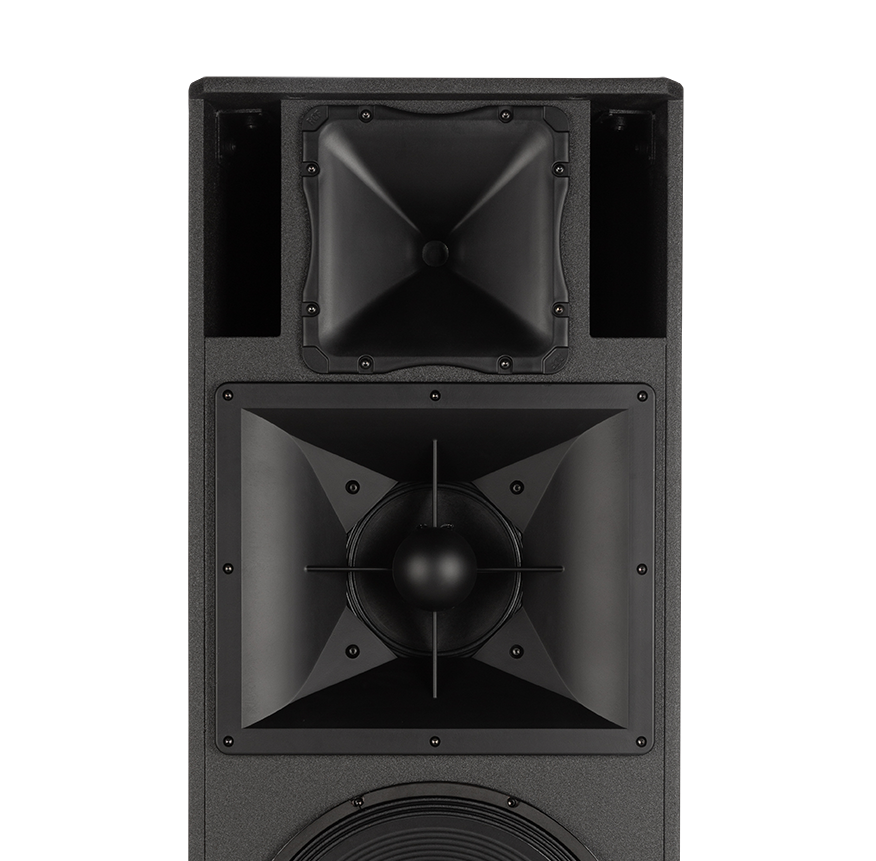

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.
The extended clarity of the 1.75" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class peek dome and the Polyamide/Kapton voice coil handle extreme power levels with very low distortion.
The midrange section adds detail and vocal clarity with a high-power 8" cone midrange on a constant directivity waveguide.
One high-power 15" low-frequency woofer with a new advanced transducer design gains more stability over higher currents, with less distortion, fast transient response, and better heat handling.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

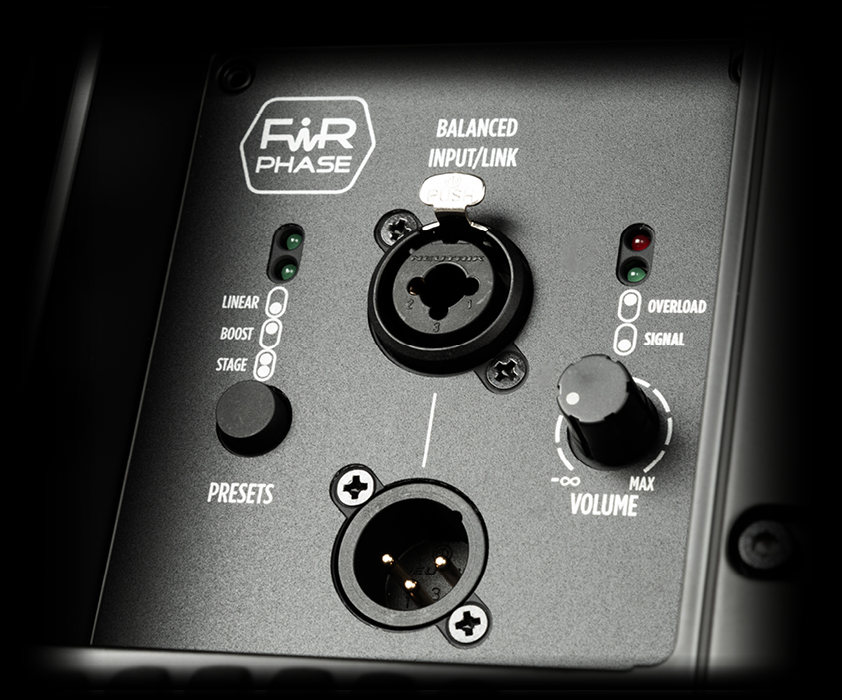

The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
| Custom Stock Status | LOW STOCK {qty} LEFT |
|---|---|
| Specification | TECHNICAL SPECIFICATIONS
|
| Manufacturer | RCF |
| Package | 1 Pack |
TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response: 40 Hz ÷ 20000 Hz
Max SPL @ 1m: 138 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 60°
Compression Driver: 1.0'' neo, 1.75'' v.c
Midrange: 8'' neo, 2.5'' v.c
Woofer: 15'' neo, 3.0'' v.c
Input signal: bal/unbal
Input connectors: Combo XRL/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Crossover Frequencies: Bass/Mid:320Hz, Mid/High:1200Hz
Protections: Thermal, Excurs., RMS
Limiter: Soft Limiter
Controls: Linear, 2 Speakers, High Pass, Volume
Total Power: 2100 W Peak
High frequencies: 200 W Peak
Mid frequencies: 500 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
CE marking: Yes
Cabinet/Case Material: Plywood
Hardware: 3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear
Handles: 1 x Side
Pole mount/Cap: Yes
Grille: Steel
Color: Black
Size Height: 1075 mm / 42.32 inches
Width: 461 mm / 18.15 inches
Depth: 475 mm / 18.7 inches
Weight: 45 kg / 99.21 lbs
Shipping informations Package:
Package Height: 530 mm / 20.87 inches
Package Width: 1110 mm / 43.7 inches
Package Depth: 490 mm / 19.29 inches
Package Weight: 51 kg / 112.41 lbs
