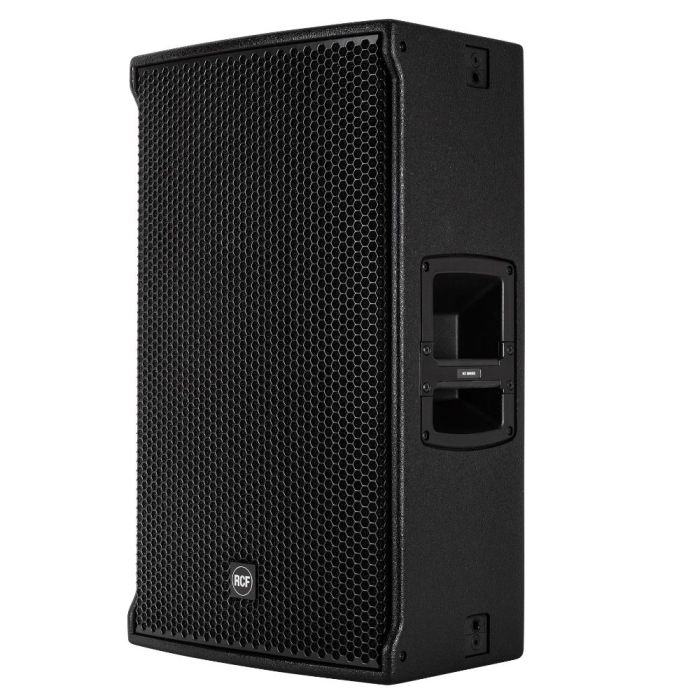

RCF NX45A 15″ ACTIVE TWO WAY MULTIPURPOSE SPEAKER

Special Price A$3,050.00 Regular Price A$4,600.00

Availability: Available

Manufacturer

RCF

SKU

NX45A

1400 W 2-way class-D amplifier
133 dB SPL Max
45 – 20000 Hz Frequency Range
90° x 50° constant directivity coverage

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Units only sold in pairs. Listed price is per unit. Contact us for a package price

FEATURES

1400 W 2-way class-D amplifier
133 dB SPL Max
45 – 20000 Hz Frequency Range
90° x 50° constant directivity coverage
15" neodymium woofer, 3.5" voice coil
Horn loaded 4.0''neodymium c. driver
Multiple rigging points

The NX 45-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-power and pristine sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker.

More Information

More Information
Specification	TECHNICAL SPECIFICATIONS Frequency Response: 45 Hz ÷ 20000 Hz Max SPL @ 1m: 133 dB Horizontal coverage angle: 90° Vertical coverage angle: 50° Compression Driver: 1.4'' neo, 4.0'' v.c Woofer: 15'' neo, 3.5'' v.c Input signal: bal/unbal Input connectors: XRL, Jack Output connectors: XLR Input sensitivity: -2 dBu/+4 dBu Mic. Input Sensitivity: -32 dBu Crossover Frequencies: 650 Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Volume, Boost, Mic/Line Total Power: 1400 W Peak, 700 W RMS High frequencies: 400 W Peak, 200 W RMS Low frequencies: 1000 W Peak, 500 W RMS Cooling: Convection Connections: Powercon IN/OUT CE marking: Yes Cabinet/Case Material: Baltic birch plywood Hardware: 5 x M10, 4 x quick lock Handles: 2 Side Pole mount/Cap: Yes Grille: Steel Color: Black Size Height: 707 mm / 27.83 inches Width: 418 mm / 16.46 inches Depth: 402 mm / 15.83 inches Weight: 24 kg / 52.91 lbs Shipping informations Package: Package Height: 760 mm / 29.92 inches Package Width: 480 mm / 18.9 inches Package Depth: 460 mm / 18.11 inches Package Weight: 27 kg / 59.52 lbs
Manufacturer	RCF
Package	1 Pack

Specification

TECHNICAL SPECIFICATIONS

Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 133 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 50°
Compression Driver: 1.4'' neo, 4.0'' v.c
Woofer: 15'' neo, 3.5'' v.c
Input signal: bal/unbal
Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Crossover Frequencies: 650 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: Baltic birch plywood
Hardware: 5 x M10, 4 x quick lock
Handles: 2 Side
Pole mount/Cap: Yes
Grille: Steel
Color: Black
Size Height: 707 mm / 27.83 inches
Width: 418 mm / 16.46 inches
Depth: 402 mm / 15.83 inches
Weight: 24 kg / 52.91 lbs

Shipping informations Package:

Package Height: 760 mm / 29.92 inches
Package Width: 480 mm / 18.9 inches
Package Depth: 460 mm / 18.11 inches
Package Weight: 27 kg / 59.52 lbs
