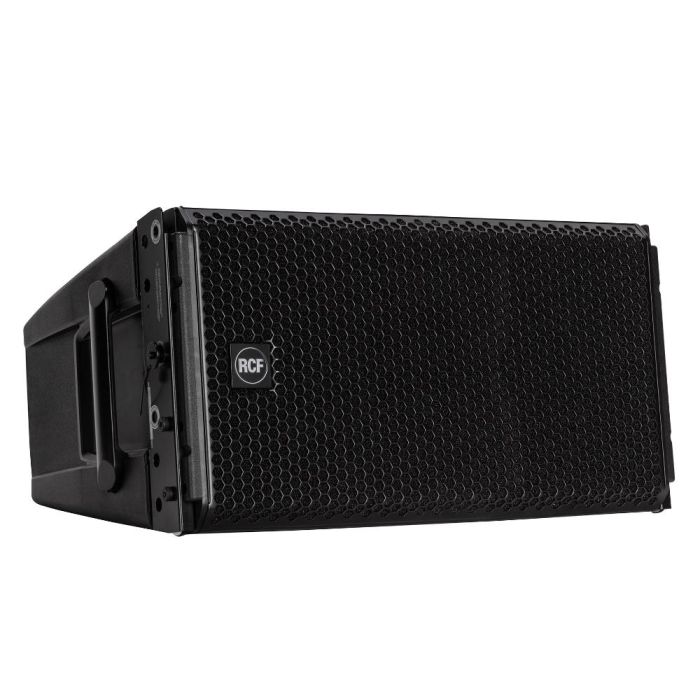

RCF HDL 28-A 2-Way 2200W Active Line Array Speaker (Black)
A$0.00
PRICE ON APPLICATION
SKU
HDL 28-A
HDL 28-A
PRICE ON APPLICATION
The RCF HDL 28-A is a compact bi-amped 2-way active touring system for a wide range of applications, both indoors and outdoors, with an emphasis on vocal intelligibility. It features two 8-inch woofers and an impressive 3-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. Following the HDL 30-A philosophy, the HDL 28-A shares the composite material cabinet, the zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. The RCF HDL28-A features state of the art RCF transducers with lightweight neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system.
FEATURES
- 2200W Two Way Amplifier
- 135 dB Max SPL
- 48 kHz, 32 bit DSP processing
- RDNet Networked Management
- 2 x 8” Neodymium Woofers, 2.5” voice coil
- 1.4” Titanium Compression Driver, 3.0” voice coil
- Exclusive FiRPHASE technology on-board
- 750 Hz Crossover Point
RCF RDNet
Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
The acoustic beauty of the symmetry
The symmetrical design of the cabinet produces identical left and right coverage. The component positioning and special DSP crossover filtering of the HDL 28-A take care of the constant directivity without spots of break up or attenuation. The specially-designed front baffle provides coplanar woofers, controlled LF dispersion and a central space to host the 4PATH waveguide. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
First class transducers
The RCF HDL 28-A features state-of-the-art RCF transducers with neodymium magnets. RCF’s experienced engineering teams have specially developed and matched each component — starting from the power supply through the input board to the amplifiers and transducers right up to the complete HDL 28-A System.
High frequencies
- High-performance RCF ND840
- 3.0-inch diaphragm titanium compression driver
- 1.4-inch exit throat
- 750 Hz Crossover Point
Low frequencies
- 2 X 2.5”voice coil neodymium 8” woofers
- Linear low frequencies handling down to 65 Hz
- Water resistant fibre doped cone
- Polycotton M-roll surround
- Hypervented magnetic structure
Flying attitude
The advanced rigging concept derives directly from its big brothers:
the RCF HDL 30-A and HDL 50-A.
The integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays. The hardware is designed for easy and fast setup. The angle can be adjusted on the ground before the system is hung and slipped automatically into the correct position as the array is pulled up.
Up to 20 HDL 28-A modules can be fastened on a single flybar.
the RCF HDL 30-A and HDL 50-A.
The integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays. The hardware is designed for easy and fast setup. The angle can be adjusted on the ground before the system is hung and slipped automatically into the correct position as the array is pulled up.
Up to 20 HDL 28-A modules can be fastened on a single flybar.
New perspective on linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
The ideal flyable bass complement
Theatrical and indoor requirements often need space in front of the stage, leaving no space for subwoofers.
The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system.
It features one 4.0” voice coil, 15” Neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with maximum linearity and low distortion. The built-in 3200 Watt Class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. With RDNet compatibility, the HDL 36-AS is part of the professional HDL System.
The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system.
It features one 4.0” voice coil, 15” Neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with maximum linearity and low distortion. The built-in 3200 Watt Class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. With RDNet compatibility, the HDL 36-AS is part of the professional HDL System.
| Custom Stock Status | PRICE ON APPLICATION | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | RCF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack |
-
RCF HDL28-A Specs
Configuration Active 2-Way Total Power Capacity 2200 W Peak
1100 W RMSAmplifier Power Rating HF:
600 W Peak
300 W RMS
LF:
1400 W Peak
700 W RMSAmplifier Class Class-D DriversHF Driver 1 x 1.4" / 35.6 mm Compression Driver HF Voice Coil 3" / 7.6 cm LF Driver 2 x 8" / 203.2 mm Woofer LF Voice Coil 2.5" / 6.3 cm Magnet HF:
Neodymium
LF:
NeodymiumPerformanceFrequency Response 50 Hz to 20 kHz -3 dB Maximum SPL 135 dB (Peak) Coverage Angle 100° H x 15° V Input Sensitivity Line Input:
+4 dBu to -2 dBuProtections Output Limiter, RMS, Thermal ConnectivityAudio I/O 1 x XLR 3-Pin Balanced/Unbalanced Line Input
1 x XLR 3-Pin Balanced Line ThruNetwork I/O 1 x etherCON (RDNet) Input
1 x etherCON (RDNet) OutputSignal ProcessingCrossover 750 Hz Dynamic Processing Soft Limiter Alignment Delay Yes Phase Adjustment Yes Digital Signal Processing 32-Bit DSP: Delay, FIR Filter, Venue Settings (Adjustable via Optional Software) Maximum Sampling Rate 48 kHz / 32-Bit PowerAC Input Power Factory Selectable:
100 to 240 VAC, 50 / 60 Hz (T 6.3 A H 250 V)AC Power I/O 1 x powerCON Input
1 x powerCON OutputPower Consumption 300 W PhysicalMounting Integrated Rigging Handles 1 x Each Side Cooling Convection Construction Material Composite, Metal Grille, Polypropylene, Steel Dimensions 11.6 to 9.3 x 22.4 x 19.3" / 294 x 569 x 491 mm Weight 40.8 lb / 18.5 kg
