RCF HDL 12-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER
Special Price
A$4,299.00
Regular Price
A$5,345.00
Call for availability
SKU
HDL12-AS

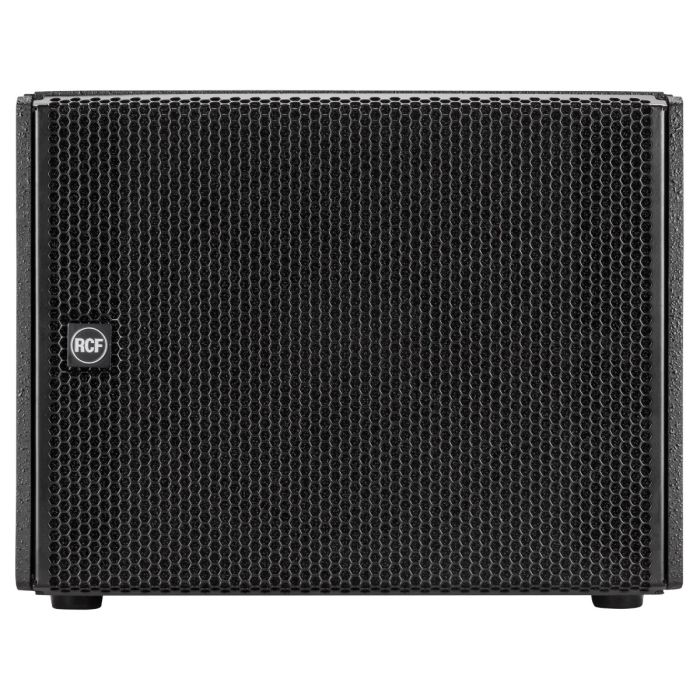

HDL 12-AS subwoofer
The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
- 1400 Watt Peak power - 700 Watt RMS
- 131 dB max SPL
- 40 Hz - 120 Hz frequency response
- 1 x 12" Woofer
- Stereo crossover
- Switchable crossover frequencies
- Designed to compliment the HDL 6-A speaker system
- Polarity reverse switch
FULL HDL SYSTEM CATALOGUE
Download the complete catalogue
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz
MAX SPL @ 1M: 131 dB
Transducers
WOOFER: 12'', 3.0'' v.c
Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES: 40Hz
LOW-PASS FREQUENCIES: 80Hz, 110Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Volume, EQ, Phase, Xover
Power section
TOTAL POWER: 1400 W Peak, 700 W RMS
LOW FREQUENCIES: 1400 W Peak, 700 W RMS
COOLING: Convection
CONNECTIONS: Powercon IN/OUT
CABINET/CASE MATERIAL: Baltic birch plywood
HARDWARE: Array fittings, pole
HANDLES: 2 side
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 379 mm / 14.92 inches
WIDTH: 470 mm / 18.5 inches
DEPTH: 508 mm / 20 inches
WEIGHT: 25 kg / 55.12 lbs
Shipping informations
PACKAGE HEIGHT: 435 mm / 17.13 inches
PACKAGE WIDTH: 560 mm / 22.05 inches
PACKAGE DEPTH: 520 mm / 20.47 inches
PACKAGE WEIGHT: 28 kg / 61.73 lb
| Custom Stock Status | Call for availability |
|---|---|
| Specification | SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz
MAX SPL @ 1M: 131 dB
Transducers
WOOFER: 12'', 3.0'' v.c
Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES: 40Hz
LOW-PASS FREQUENCIES: 80Hz, 110Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Volume, EQ, Phase, Xover
Power section
TOTAL POWER: 1400 W Peak, 700 W RMS
LOW FREQUENCIES: 1400 W Peak, 700 W RMS
COOLING: Convection
CONNECTIONS: Powercon IN/OUT
CABINET/CASE MATERIAL: Baltic birch plywood
HARDWARE: Array fittings, pole
HANDLES: 2 side
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 379 mm / 14.92 inches
WIDTH: 470 mm / 18.5 inches
DEPTH: 508 mm / 20 inches
WEIGHT: 25 kg / 55.12 lbs
Shipping informations
PACKAGE HEIGHT: 435 mm / 17.13 inches
PACKAGE WIDTH: 560 mm / 22.05 inches
PACKAGE DEPTH: 520 mm / 20.47 inches
PACKAGE WEIGHT: 28 kg / 61.73 lb
|
| Manufacturer | RCF ITALY |
| Package | 1 Pack |
