RCF EVOX J8 Active 12" 2-Way 1400W Portable Line Array PA System
A$2,849.00
Call for availability
SKU
EVOXJ8
EVOXJ8
FEATURES
- 128 dB Max SPL
- 1400 Watt 2-way power
- DSP Processing with FiRPHASE
- 12" woofer, high power 2.5" voice coil
- 8 x 2" ultra compact fullrange 1.0" voice coil
- 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
- 23,8/52.5 kg/lbs
The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

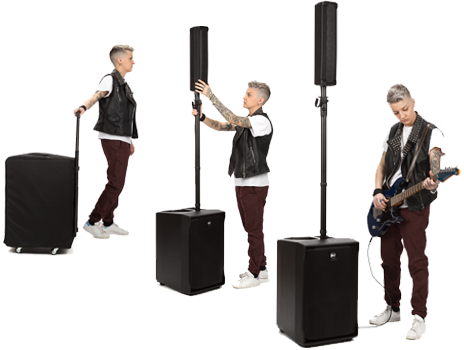

Ready to play in a few simple steps
PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.
MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
PLAY! Carrying and mounting your audio system has never been so quick.
MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
PLAY! Carrying and mounting your audio system has never been so quick.
J System configurations
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.
| Custom Stock Status | Call for availability | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification | Portable PA System
Speakers
Signal Processing
Performance
Connectivity
Physical
Packaging Info
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | RCF |
||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack |
Portable PA System
| Speaker Configuration | 1 x 2-Way Speaker Column with Subwoofer |
| Amplifier Power Rating | Total: 1400 W Peak 700 W RMS LF: 1000 W Peak 500 W RMS HF: 400 W Peak 200 W RMS |
| Amplifier Class | Class-D |
Speakers
| HF Driver | 8 x 2" / 5.1 cm |
| HF Voice Coil | 1" / 2.5 cm |
| LF Driver | 1 x 12" / 30.5 cm Woofer |
| LF Voice Coil | 2.5" / 6.4 cm |
Signal Processing
| Crossover | 220 Hz |
| Dynamic Processing | Soft Limiter |
Performance
| Frequency Response | 40 Hz to 20 kHz |
| Maximum SPL | 128 dB |
| Coverage Angle | 120° H x 30° V |
| Input Sensitivity | +4 dBu / -2 dBu |
| Protections | RMS, Thermal |
Connectivity
| Audio I/O | 1 x XLR 3-Pin Female Input 1 x 1/4" TS Input 1 x XLR 3-Pin Male Output 1 x speakON NL2 Output |
Physical
| Construction Material | Metal Grille, Polypropylene |
| Dimensions | 24.5 x 15.7 x 18.1" / 62.3 x 40 x 46 cm |
| Weight | 52.5 lb / 23.8 kg |
Packaging Info
| Package Weight | 64 lb |
| Box Dimensions (LxWxH) | 27 x 23.4 x 18" |
