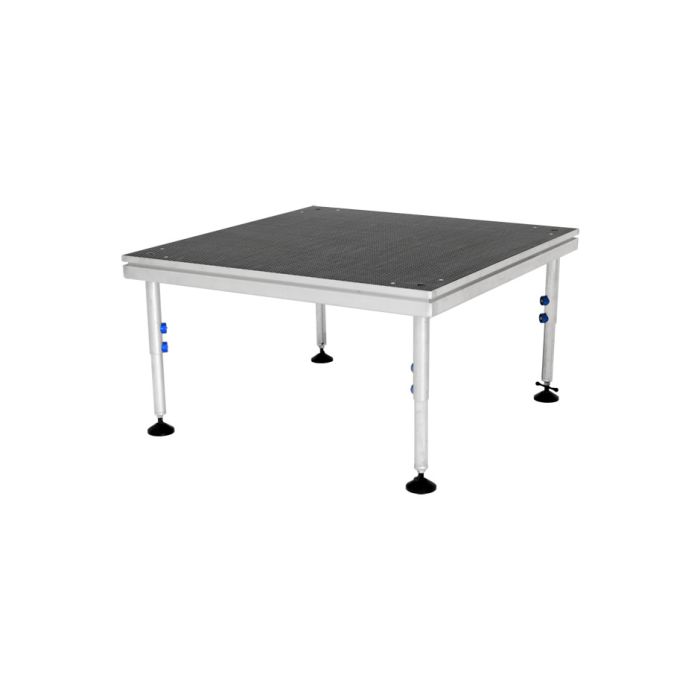

Portable stage panel 1.2M x 1.2M size, Height 0.24M to 0.34M
Availability: Available
JD
Portable stage panel 1.2Mx 1.2M size, Height adjustable from 0.24M to 0.34M
BULKY ITEM - EXTRA FREIGHT CHARGES MAY APPLY PLEASE ENQUIRE
Our portable stage panels are available in three sizes, 1.2x1.2m, 1x2m and 1.2x2.4m. Each size of stage can be joined with another via a unique built-in 'tongue and groove' platform connector system. The lightweight frame is made from high quality aluminium alloy, 18mm thick slip- resistant laminated plywood and are rated at 1800kg of static distributed load per panel.
Set up is very easy with the stage legs just slotting into corner clamps under the stage and locked tight with a lever without need for any tools. There is a choice of 4 different height adjustable legs ranging from 300mm to 1400mm in height. Each leg is made of aluminium 50mm tubing and has an integrated ruler which allows all legs to be set up to an exact same height. Fine height adjustment can be made with a flexible foot in situations where floor or ground is uneven.
There is a range of accessories available for the portable stage panels including safety guardrails, stairs and stage skirts to give the set up that professional finish.
1 x Panel Size: 1.22m x 1.22m top
Height Adjustable from 240mm to 340mm
Stage panels feature:
Aluminium heavy duty frame
Aluminium 50mm adjustable legs with flexible foot
Legs are fully removable and fitted to the stage without any tools needed
Stage legs feature rubber foot leg which can pivot to allow for uneven surfaces
Handy measuring scale on the leg allows for accurate height adjustment
Stage is easy to assemble and dismantle
Easy to transport when flat packed
Heavy duty construction
Non slip surface - black laminate
Multiple panels can be joined and locked together (inbuilt locking system)
Load 940kg
Weight 31kg
TUV rating
Accessories including balustrades, stairs and stage skirts are also available
| Specification |
|
|---|---|
| Manufacturer | JD |
| Package | 1 Pack |
- Panel Size: 1.2m x 1.2m top
- Height Adjustable from 230mm to 340mm
- Load 850Kg
- Weight 31kg
- TUV rated
