LD Systems ICOA 12A – 12″ Inch Active Powered Coaxial PA Loudspeaker
LOW STOCK 2 LEFT
The LD Systems ICOA 12A is a full-range PA loudspeaker. Delivering outstanding sound, even at low frequencies, the ICOA 12 A offers unparalleled features for its class. Featuring a coaxial design, rotating, BEM-Optimised CD Horn, and extensive and precisely calibrated Dynx DSP presets.

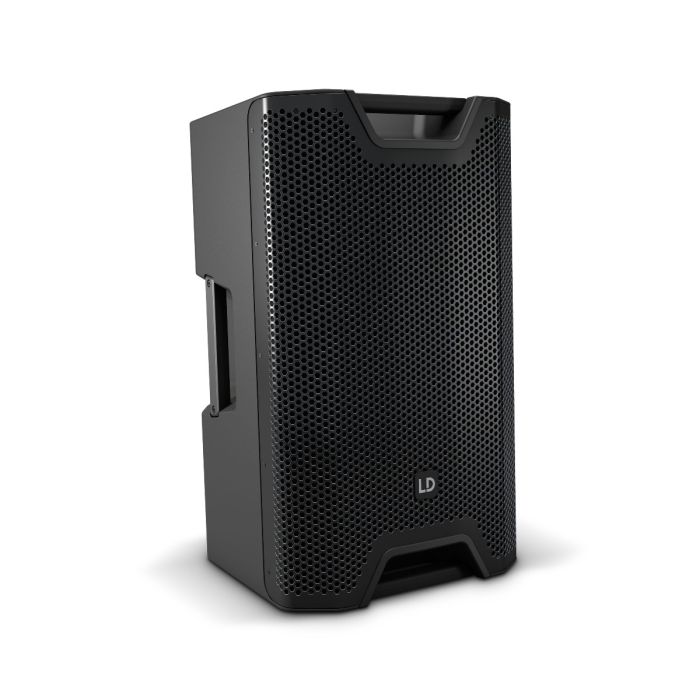

LD Systems ICOA 12A
The LD Systems ICOA 12A is a full-range PA loudspeaker. Delivering outstanding sound, even at low frequencies, the ICOA 12A offers unparalleled features for its class. Featuring a coaxial design, rotating, BEM-Optimised CD Horn, and extensive and precisely calibrated Dynx DSP presets. As a result, the ICOA active 12″ loudspeaker is exceptionally flexible.
With outstanding bass reproduction from the horn-loaded woofer; the ICOA 12A is the ideal choice for musicians, bands, entertainers and schools. While also allowing DJs to play sets without the need for an additional subwoofer. Sit your speaker vertically, and it impresses as a satellite. While horizontally it’s perfect in suspended systems or as a floor monitor. Packing an efficient Class-D power amplifier, the ICOA 12A delivers 126 dB max SPL as well as 300W RMS performance.
DynX DSP technology
Furthermore, drawing on the LD Systems DynX DSP technology; the ICOA 12A delivers perfect performance with maximum clarity and power. Plus the 4 presets, 3 band EQ and delay function give you ultimate control over your sound. 2 Line/Mic input channels feature individual gain controllers, plus mono mix output. Allowing a variety of signal sources to be connected.
Boasting a shock-resistant front grille with an ideal 55-degree tit angle the ICOA 12A is also perfect as a floor monitor. As well as offering the choice of a slight tilt angle for optimally adapting the system to its acoustic environment. While the 4 aluminium handles with a rubber surface give you optimal grip for when you’re transporting your speaker.
- A genuine all-rounder for full-range, satellite and monitor applications
- 126 dB max. SPL and 300 W RMS performance
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
Also available is the ICOA 12A BT (12“ Inch Active Powered Coaxial PA Loudspeaker with Bluetooth).
View our wide range selection of PA speakers online.
| Custom Stock Status | LOW STOCK {qty} LEFT |
|---|---|
| Specification | Product type PA loudspeaker Type Actives Low/mid driver dimensions 12 “ Woofer size 304.8 mm Woofer magnet Ferrite Woofer brand Custom-made Horn BEM optimized CD Horn HF driver dimensions 1 “ HF Driver Size 25.4 mm HF driver magnet Ferrite HF driver brand Custom-made HF driver voice coil 1 “ HF Driver Voice Coil 25.4 mm Amplifier Class D Dispersion (H x V) 90 ° x 50 ° RMS 300 W Peak power 1200 W Frequency response 50 – 20000 Hz Crossover frequency kHz 2 kHz Max. SPL (peak) 126 dB Protection circuits Multiband limiter , over voltage , over-current , thermal overload Controls 2 x gain , On / off switch , Rotary/push encoder Indicators LC display Mic/ line inputs 2 Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical) , XLR Line inputs 1 Line input connectors 3.5 mm TRS Line outputs 1 Line output connectors XLR Operating voltage SMPS Power consumption 150 W Ambient temperature ( in operation ) 0 – 40 °C Operating voltage 100 V – 240 V AC / 50 – 60 Hz Relative Humidity < 80 %, not condensing Fuse T4AL 250 V Cabinet material polypropylene Cabinet construction vented tripod flange 32 °F , 36mm flange , 5° Monitor angle 55 ° Width 375 mm Height 635 mm Depth 396 mm Weight 19.95 kg Accessories (included) Power cord |
| Package | 1 Pack |
Product type PA loudspeaker
Type Actives
Low/mid driver dimensions 12 “
Woofer size 304.8 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 1 “
HF Driver Size 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
HF driver voice coil 1 “
HF Driver Voice Coil 25.4 mm
Amplifier Class D
Dispersion (H x V) 90 ° x 50 °
RMS 300 W
Peak power 1200 W
Frequency response 50 – 20000 Hz
Crossover frequency kHz 2 kHz
Max. SPL (peak) 126 dB
Protection circuits Multiband limiter , over voltage , over-current , thermal overload
Controls 2 x gain , On / off switch , Rotary/push encoder
Indicators LC display
Mic/ line inputs 2
Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs 1
Line input connectors 3.5 mm TRS
Line outputs 1
Line output connectors XLR
Operating voltage SMPS
Power consumption 150 W
Ambient temperature ( in operation ) 0 – 40 °C
Operating voltage 100 V – 240 V AC / 50 – 60 Hz
Relative Humidity < 80 %, not condensing
Fuse T4AL 250 V
Cabinet material polypropylene
Cabinet construction vented
tripod flange 32 °F , 36mm flange , 5°
Monitor angle 55 °
Width 375 mm
Height 635 mm
Depth 396 mm
Weight 19.95 kg
Accessories (included) Power cord
