Dual 18-inch Powered Subwoofer
Dual 18-inch Powered Subwoofer
The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

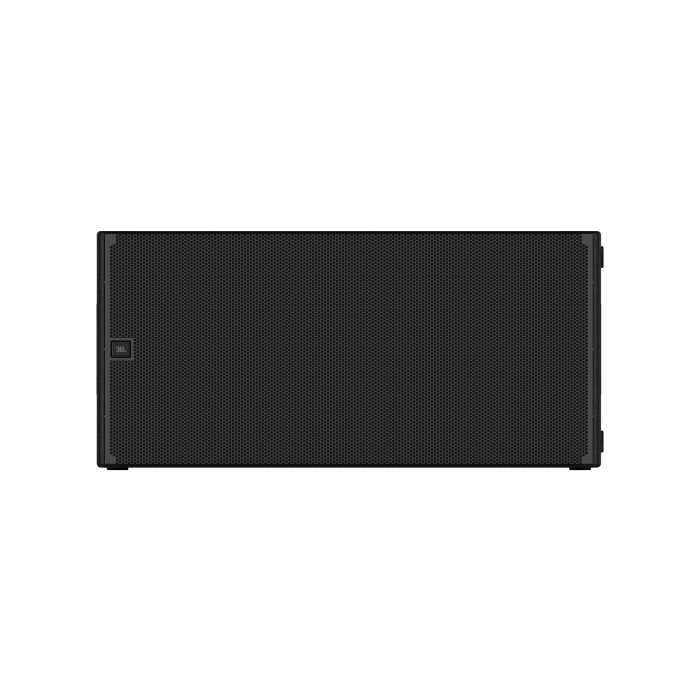

The SRX928S is a dual 18-inch active subwoofer designed to complement SRX900 full-range sound reinforcement systems. The sub¬woofer houses two JBL 2279-1 18-inch woofers, featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs.
Built-in DSP and amplification offer a plug and play experience, while providing consistency and optimum performance anywhere in the world. The SRX928S incorporates a large central low frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.
Taking inspiration from JBL’s flagship VTX line, the SRX900 Series’ custom-designed and manufactured transducers, coupled with JBL’s innovative horn and waveguide designs, deliver superior performance and output usually only available in more expensive three-way systems.
SRX900 woofers are based on JBL’s proprietary Differential Drive dual-voicecoil, dual-gap arrangement design, which delivers better heat dissipation, lower power compression and wider dynamic range than conventional single-coil designs. Transducers feature neodymium magnet structures, and heat sinks are integrated into driver frames. It all adds up to extended frequency response, high power capacity and low distortion in an incredibly lightweight driver assembly.
The SRX900’s 2432H-3 compression driver features a neodymium magnet structure, 3-inch titanium diaphragm and a 1.5-inch exit, for crisp transients, superior dynamic range and extended sensitivity beyond 10 kHz, for truly linear high-frequency response at any output level.
SRX900 Series line arrays are based on JBL's groundbreaking Radiation Boundary Integrator design, first introduced in the flagship VTX Series. The patented RBI device mounts both the high and low-frequency transducers on a single horn, improving horizontal dispersion while minimizing cabinet size. A precision waveguide provides perfect cabinet-to-cabinet summation for seamless front-to-back coverage, and a large horn extends low-frequency control and reduces unwanted energy behind the array.
The SRX900 Series offers a complete system solution, including speakers, subwoofers and accessories that support a variety of configurations and simplify storage, transport and rigging. Because systems are scalable, it’s easy to start with a small investment and add components over time. SRX900 products are designed to work seamlessly with other JBL touring sound products, thanks to common voicing targets and phase characteristics.
SRX900 models feature a DSP package that provides everything users need to optimize and tune their systems, including 24-band parametric EQ, 2,000 ms of delay and gain control. JBL’s proprietary Array Size Compensation (ASC) filter corrects for different array sizes, while the FIR-based Throw Distance Compensation (TDC) filter compensates air-imposed sound loss, for more uniform sound distribution without having to spend hours measuring and tuning the system. An internal noise generator can be used to test the system without the need for a console.
The SRX900 Series’ advanced LevelMax limiter suite, codeveloped by JBL and Crown engineers for Crown’s I-Tech HD professional touring amplifiers, uses sophisticated excursion-control algorithms to protect transducers from mechanical damage. RMS limiting and long-term thermal protection keep transducer temperatures under control, ensuring reliable operation under any conditions.
The SRX900 Series supports HARMAN's new HControl ethernet protocol, which brings advances in stability, reduces network traffic load and removes the need for complex IP addresses. Users can simply set a numerical value to each device for easy identification. Two switched network ports offer simplified networking for daisy-chaining. SRX900 products are equipped with Ethernet ports to facilitate monitoring and configuring the system over the network. Because SRX products use standard Ethernet protocols, customers can take advantage of inexpensive networking products such as Ethernet switches and wi-fi access points.
The SRX900 Series’ unified software suite lets users manage system design, control and deployment functions on Windows, macOS, and iOS. Use JBL LAC-3 simulation software for system design and the new, cross-platform JBL Performance application for system management; transfer rigging information via the Array Link iOS/Android companion app. A rear-panel LCD screen provides full on-speaker access to control features, making it easy for users to troubleshoot large systems or configure small systems right onscreen.
Because SRX900 Series line arrays and subwoofers are self-powered, users never have to worry about matching components or lugging amp racks. Custom Class D amplifiers are designed from the ground up for optimal performance alongside matched SRX900 transducers; amps are passively cooled, with no open holes that could allow water or dust to enter the electronics. A universal switching mode power supply works on any voltage between 100 and 250V, and a low power mode kicks in when no audio is detected, saving energy. Up to eight SRX906 speakers and four SRX910 speakers can be connected to the same power circuit (depending on region), minimizing cable complexities and cutting costs.
SRX900 Series systems are designed for both portable and installed applications and can be deployed in a variety of configurations, from pole-mounted to ground-stacked to flown arrays of up to 16 cabinets. A three-point rigging system, adapted from VTX technologies, makes suspending systems safe and easy, regardless of system size or user experience level. Set splay angles on the ground; cabinets lock into place as the system is lifted. The rear rigging spine serves as an additional heatsink for added cooling. Available accessories include array frames, base plates, pole-mount and truss-clamp adapters, cases, carts and covers.
SRX900 Series line array loudspeakers are housed in reinforced composite enclosures while subwoofers feature 18mm plywood enclosures. FEA-optimized cabinets offer excellent size-to-weight ratio and are acoustically optimized for superior performance: Four large, double-flared low-frequency ports allow airflow even when driving the system to the limit, for natural, effortless bass response; flares control air velocity at the ports' exit, eliminating interference noise at the grille. CAD-optimized stiffeners minimize flex. Speakers are designed for a clean, modern look, with enclosed side panels and integrated handles. Like every JBL speaker, SRX900 Series models undergo 100 hours of rigorous stress testing to ensure they will perform flawlessly and reliably in real-world conditions.
|Frequency Range (-10dB)||31 Hz-100 Hz (Preset: 80 Hz)|
|Coverage Pattern||Omnidirectional or Cardioid|
|Maximum SPL||140 dB (Preset: 80 Hz)|
|System Type||Active Subwoofer|
|Continuous Power Rating||1,100 Watts|
|LF Driver||(2) JBL 2279H-1, 18 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®|
|Enclosure||18 mm plywood, Black DuraFlex finish, four integral recessed handles|
|Dimensions (H x W x D)||565 mm x 1,205 mm x 681 mm
(22.2 in x 47.4 in x 26.8 in)
|Net Weight (each)||70.3 kg (155 lbs)|
