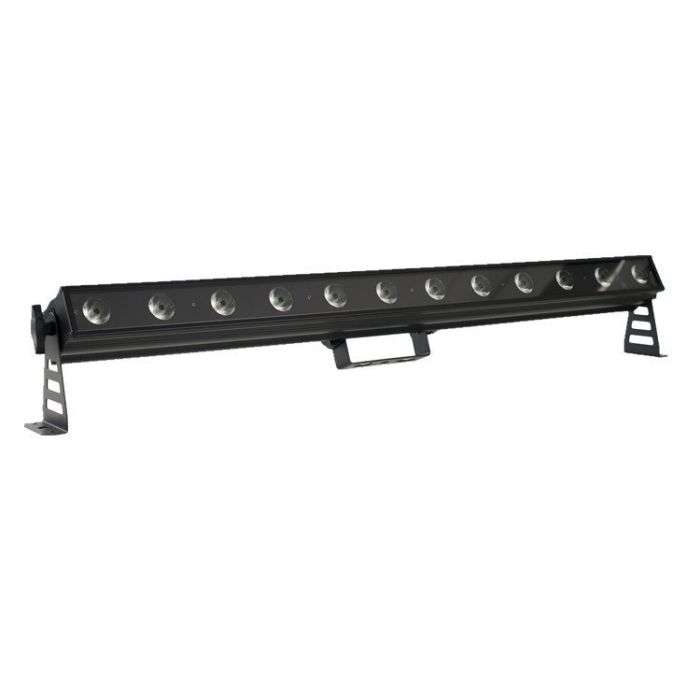

Event Lighting Pixbar 12x8 8W 4 in 1 RGBW LED 1 meter Pixel control bar / LED bar
Availability: Available
EVENT LIGHTING
PIXBAR12X8
The trusty LED bar has transformed itself into a versatile stage lighting fixture that now offers RGB pixel mapping in addition to impressive wash and up-lighting effects. With the ability to cover a large area along with a variety of hanging options, sees the bar equally at home floor mounted for rear cyclorama duties, mounted vertically for intriguing chase patterns and blinding effects, or hung from truss for general stage washing. Applications are only limited by your imagination. Each LED can be individually controlled allowing for dramatic bursts of colourful output. Furthermore multiple bars can be linked together vertically or horizontally to create vivid rolling chase sequences and dramatic special effects.
Specification:（Ver: 3.0)
- Power supply: 100~240 V AC, 50/60 Hz
- Power consumption: 120 W
- Light Source: 12 pcs 8W RGBW
- Power Connection: IEC input and output connection
- LED Life: 50,000 hours
- Lux: 2550 lux on @2.0M RGBW full on
- Beam angle: 22°
- PWM: 2940Hz
- Dimmer: 0-100% dimmer
- Smooth electronic dimming with a 16-bit 4 Dimmer curve
- Strobe: 1-30Hz
- Control: DMX 512, 3-pin XLR interfaces, 4/6/8/9/12/16/24/48/50 channel modes
- Operation modes: DMX, Auto, Sound Active, Master/Slave, Manual Color Control Mode, Static Color Mode
- 4-button LCD display control panel
- Aluminum Housing
- Smart cooling system without fan
- Software upgrade via DMX.
- Net weight: 4.5 Kg
- Overall Size: 1050x80x165mm
View more stage lighting or theatre lighting from our online store.
| Specification |
|
|---|---|
| Manufacturer | EVENT LIGHTING |
| Package | 1 Pack |
- Power supply: 100~240 V AC, 50/60 Hz
- Power consumption: 120 W
- Light Source: 12 pcs 8W RGBW
- Power Connection: IEC input and output connection
- LED Life: 50,000 hours
- Lux: 2550 lux on @2.0M RGBW full on
- Beam angle: 22°
- PWM: 2940Hz
- Dimmer: 0-100% dimmer
- Smooth electronic dimming with a 16-bit 4 Dimmer curve
- Strobe: 1-30Hz
- Control: DMX 512, 3-pin XLR interfaces, 4/6/8/9/12/16/24/48/50 channel modes
- Operation modes: DMX, Auto, Sound Active, Master/Slave, Manual Color Control Mode, Static Color Mode
- 4-button LCD display control panel
- Aluminum Housing
- Smart cooling system without fan
- Software upgrade via DMX.
- Net weight: 4.5 Kg
- Overall Size: 1050x80x165mm
