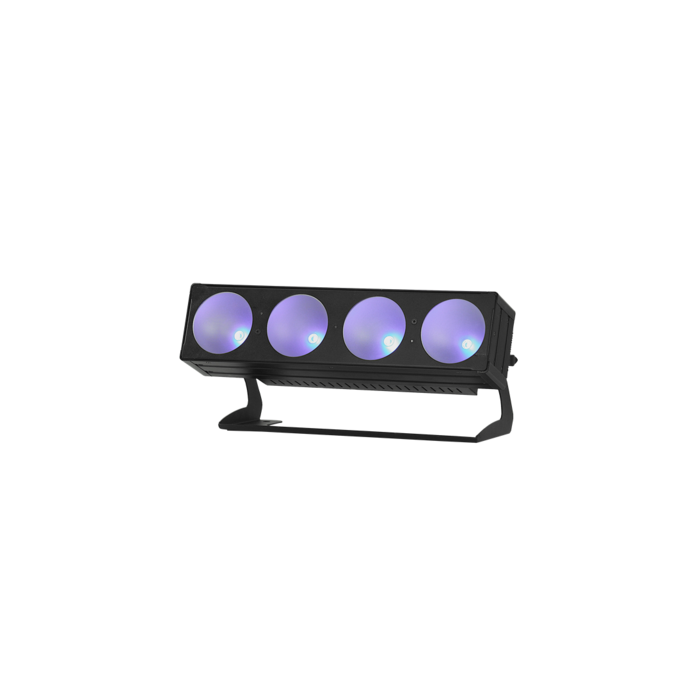

Event Lighting PAN4X1X30 - 4 x COB RGB 30W LED Pixel Control Panel
Product will be available on 21/06/2022PAN4X1X30
For the latest in sophisticated, high output stage lighting look no further than the PAN series of bars and panels from Event Lighting. Utilizing the latest COB or ‘Chip On Board’ technology the PAN series creates smooth RGB colour mixing and can be used as a standard wash light, a blinder or pixel mapped for incredible visual effects. The 4 x 30Watt RGB LED light source utilizes the entire colour spectrum to produce vibrant dazzling output. When used in multiples the effect is truly stunning creating a unique and dazzling effect that can only be described as pure “eye candy”. Individual pixel control allows for cool chase effects especially when used in multiples, and the 60-degree beam angle makes the PAN series perfect for cyclorama, stage fill and general wash lighting duties.
The flicker free operation and fanless cooling system makes it well suited for broadcast and theatre applications, with IEC in and out power connectors included for fast easy set up. There are various control options via the LCD control panel including auto, master/slave, and sound active, or select from 5 different modes of DMX. Whilst light in weight and easy to transport, the fixture is housed in a robust aluminum chassis (treated for anti oxidization) along with a sturdy bracket for convenient floor mounting. From stage and theatre lighting through to nightclubs, worship and commercial applications. These COB bars offer tremendous flexibility of performance along with reliability and ease of use, making them a go-to fixture for productions and installations. Dedicated high quality road case available that holds 4 units.
Features
- 100% Flicker free operation, refresh rate up to 11,700Hz
- Individual Pixel controllable in DMX mode
- 16-bit 4 selectable Dimming Curve
- 4-button LCD display control panel.
- Oxidation surface treated Aluminum housing
- Smart Cooling system, no fan.
- Road case: PAN4X1CASEWC
Specification:
- Power supply: 100~240 V AC, 50/60 Hz
- Power consumption: 120 W
- DMX control channels: 3,5,9, 12 or 17 channel mode
- DMX512 connection: 3-pin XLR
- Operation modes: DMX, Auto, Sound Active, Master/Slave, Manual Color Control Mode, Static Colour Mode
- Sound-control: via built-in microphone
- LED Refresh Rate: 11,700Hz
- LED type: 30 W COB Tri-color RGB
- Number of LEDs: 4
- Beam angle: 60°
- Dimensions (LxWxH): 425 x 187 x 163 mm
- Weight: 4 kg
- Maximum ambient temperature Ta: 40°
- Maximum housing temperature TC (steady state): 80°
- Fuse: T 1 A, 250 V
- Min. distance from flammable surfaces: 0.5 m
- Min. distance to lighted object: 0.1 m
View more stage lighting or theatre lighting from our online store.
| Custom Stock Status | Product will be available on {expected_date} |
|---|---|
| Specification |
|
| Manufacturer | EVENT LIGHTING |
| Package | 1 Pack |
- Power supply: 100~240 V AC, 50/60 Hz
- Power consumption: 120 W
- DMX control channels: 3,5,9, 12 or 17 channel mode
- DMX512 connection: 3-pin XLR
- Operation modes: DMX, Auto, Sound Active, Master/Slave, Manual Color Control Mode, Static Colour Mode
- Sound-control: via built-in microphone
- LED Refresh Rate: 11,700Hz
- LED type: 30 W COB Tri-color RGB
- Number of LEDs: 4
- Beam angle: 60°
- Dimensions (LxWxH): 425 x 187 x 163 mm
- Weight: 4 kg
- Maximum ambient temperature Ta: 40°
- Maximum housing temperature TC (steady state): 80°
- Fuse: T 1 A, 250 V
- Min. distance from flammable surfaces: 0.5 m
- Min. distance to lighted object: 0.1 m
