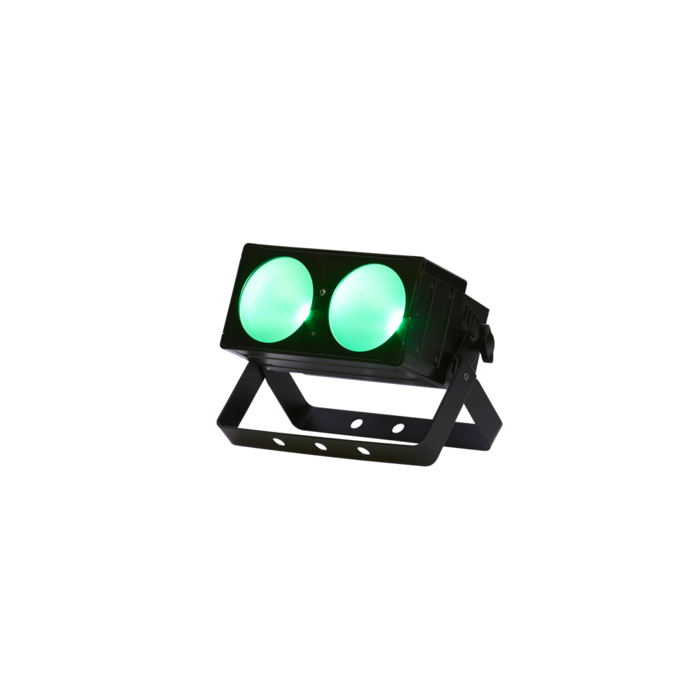

Event Lighting PAN 2X1X30 - 2 x COB RGB 30W LED Pixel Control Panel
Availability: Available
EVENT LIGHTING
PAN2X1X30
For the latest in sophisticated, high output stage lighting look no further than the PAN series of bars and panels from Event Lighting. Utilizing the latest COB or ‘Chip On Board’ technology the PAN series creates smooth RGB colour mixing and can be used as a standard wash light, a blinder or pixel mapped for incredible visual effects. The 2 x 30Watt RGB LED light source utilizes the entire colour spectrum to produce vibrant powerful output. When used in multiples the effect is truly stunning, creating a unique and dazzling effect that can only be described as “eye candy”. Individual pixel control allows for cool chase effects and the 60-degree beam angle makes the PAN series perfect for cyclorama, stage fill and general wash lighting duties.
The flicker free operation and fanless cooling system makes it highly suitable for broadcast, stage and theatre applications. There are multiple control options via the LCD control panel including auto, master/slave, and sound active or select from 5 different modes of DMX. Whilst light in weight and easy to transport, the fixture is housed in a robust aluminium chassis (treated for anti oxidization) along with a double bracket for convenient floor mounting. From stage and theatre lighting through to nightclubs, worship and commercial applications. These COB bars offer tremendous flexibility of performance along with reliability and ease of use, making them a go-to fixture for productions and installations.
Features
- 100% Flicker free operation, refresh rate up to 11,700Hz
- Individual Pixel controllable in DMX mode
- 16-bit 4 selectable Dimming Curve
- 4-button LCD display control panel.
- Oxidation surface treated Aluminum housing
- Smart Cooling system, no fan.
- Software upgrade via DMX.
Specifications:
- Power supply: 100~240 V AC, 50/60 Hz
- Power consumption: 50 W
- DMX control channels: 3,5,6, 9,11 channel mode
- DMX512 connection: 3-pin XLR
- Sound-control: via built-in microphone
- Operation Modes: DMX, Auto, Sound Active, Master/Slave, Manual Color Control Mode, Static Color Mode
- LED type: 30 W COB Tri-color RGB
- Number of LEDs:2
- Beam angle: 60°
- 4-button LCD control panel
- Refresh Rate: 11,700Hz
- Fuse: T1A, 250V
- Dimensions (LxWxH): 213 x 136 x 165 mm
- Weight: 2.5 kg
https://www.youtube.com/watch?v=c1AE0vBKxSw
| Specification |
|
|---|---|
| Manufacturer | EVENT LIGHTING |
| Package | 1 Pack |
- Power supply: 100~240 V AC, 50/60 Hz
- Power consumption: 50 W
- DMX control channels: 3,5,6, 9,11 channel mode
- DMX512 connection: 3-pin XLR
- Sound-control: via built-in microphone
- Operation Modes: DMX, Auto, Sound Active, Master/Slave, Manual Color Control Mode, Static Color Mode
- LED type: 30 W COB Tri-color RGB
- Number of LEDs:2
- Beam angle: 60°
- 4-button LCD control panel
- Refresh Rate: 11,700Hz
- Fuse: T1A, 250V
- Dimensions (LxWxH): 213 x 136 x 165 mm
- Weight: 2.5 kg
