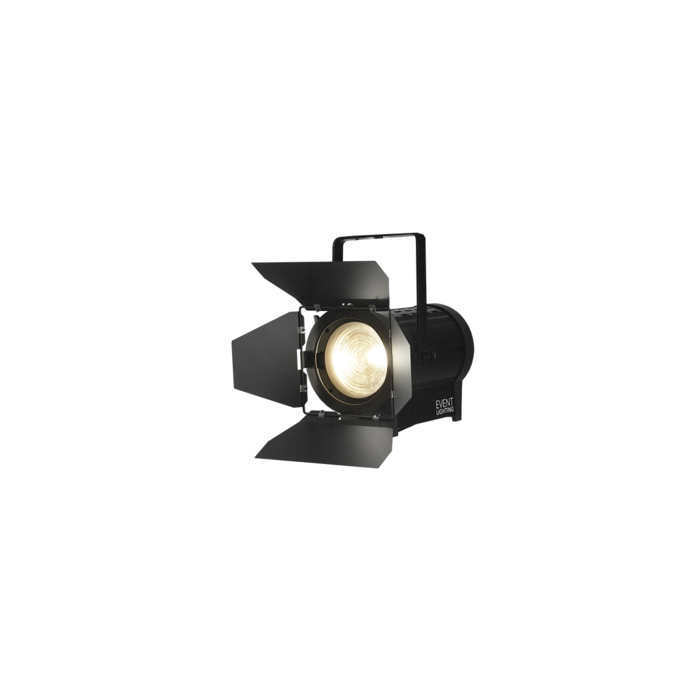

Event Lighting F300WMZ - 300W Warm White Fresnel

The Event Lighting fresnel uses a single source LED engine to provide a smooth and even field of warm white light, providing a modern replacement for traditional fresnels. Multiple dimming curves are available down to 16 bit for ultra-smooth fading cues.Not only that but it consumes a fraction of the power of traditional fresnels without the need for expensive dimming racks and power distribution. An easily adjustable manual 30-65 degree variable field angle provides a soft field with >95% CRI and high-quality optics. Temperature controlled whisper quiet fan cooling provides near silent performance. Neutrik powercon connections come as standard with 3 pin DMX upgradeable to 5pin. Event Lighting LED fresnels are ideally placed in theaters, broadcast studios or any stage setting that requires smooth warm white output from an energy saving fixture with exceptionally long life. Supplied with barn doors for beam shaping and glare reduction.

• Power

  • Power Supply: 100~240V AC, 50/60 Hz
  • Power Consumption: 300W
  • Power Connection: Neutrik® PowerCON in / out

  Photometrics

  • Light Source: 300W 3200K COB LED
  • CRI: 90
  • Beam Angle: 12° - 35°
  • Field Angle: 35° - 65°
  • Output: 14,223 lux @2.5M at 12°, 4,990 lux @2.5M at 35°
  • Lens: 150mm Fresnel
  • PWM: 8,000Hz
  • LED Lifespan: 50,000 hours

  Effects

  • Dimming: 0 - 100% 8 / 16-bit
  • Dimming Curves: 3
  • Strobe: 1 – 25 Hz
  • Zoom: Manual 14° to 55°
  • Barn Door: Included
  • Gel Frame: Included

  Control

  • Operational Modes: DMX, Manual & Master / Slave
  • Display: 4-button LCD control panel
  • DMX Protocol: DMX512
  • DMX Channel Mode: 1 / 2 / 3
  • DMX Interface: 3-pin XLR

  Housing

  • Housing Materials: Aluminum & ABS
  • Housing Finishing: Matte Black
  • Cooling: Sensor Thermostat Controlled Variable Speed Fan
  • Net Weight: 5 kg
  • Overall Size: 395 X 270 X 360mm
