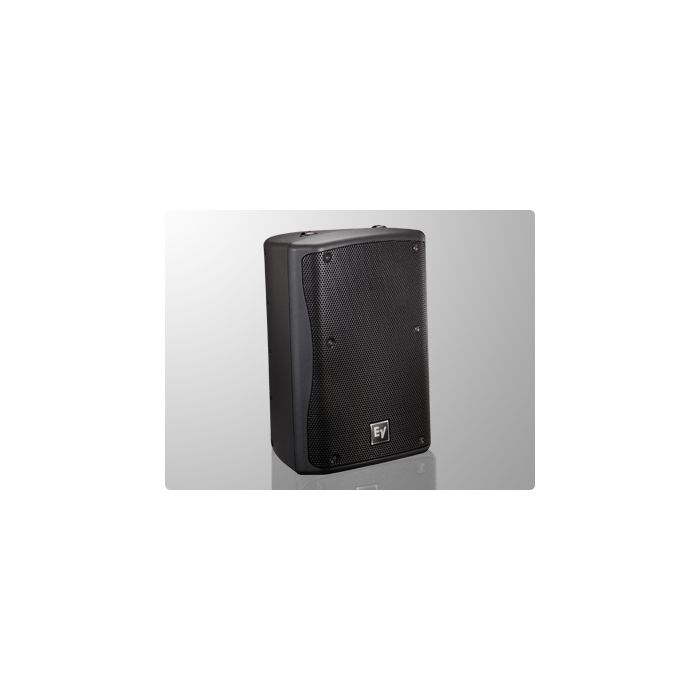

EV ZX3 90B passive 12" speaker
Move your mouse over image or click to enlarge
EV ZX3 90B passive 12" speaker EV ZX3 90B passive 12" speaker EV ZX3 90B passive 12" speaker

EV ZX3 90B passive 12" speaker

Manufacturer: EV


Availability: Available

Regular Price: $1,909.00

Special Price $1,429.00

Quick Overview

600W RMS

The Electro-Voice ZX3 offers an unprecedented level of lightweight 12-inch two-way loudspeaker performance for the widest variety of portable and installed applications. Featuring the new DVX3121 12-inch woofer and the ND2 neodymium compression driver, ZX3 continues the groundbreaking innovation of the Electro-Voice DVX woofer program, joining the ranks of EVs ZX series between the 8-inch ZX1 and the 15-inch ZX5.
When it comes to problem/solution versatility, ZX3 is truly in a class of its own. In addition to the highest performance drivers available, a complete range of optional accessories, including the CB-5 array kit, MB3 wall/ceiling mount bracket, HA-3 handle adapter for use with the VSA-1 strong arm mount, and TCA-1 truss clamp adapter, allow ZX3 to be easily and precisely configured in multiple box arrays, mounted on truss or tripods, deployed as monitors, or used as system mains with a subwoofer.
Housed in a stylish yet rugged injection molded enclosure, ZX3 shares the same functionality as the larger ZX5, with 90° x 50° or 60° x 60° horn dispersion patterns, 45° or 55° monitor angles, passive or bi-amp operation, and seven M8 rigging points. ZX3 is available in a weatherized version and in either black or white finish. The optional HDC-3 heavy duty stackable cover is also available.


Frequency Response (-3dB) 58 - 15000 Hz
Frequency Response (-10dB) 48 - 20000 Hz
Sensitivity 1W/1m 97 dB
System Power Handling (continuous/program/peak) 600/1200/2400 Watts
Low Frequency Power Handling (continuous/program/peak) 500/1000/2000 Watts
High Frequency Power Handling (continuous/program/peak) 40/80/160 Watts
LF Transducer DVX3121
HF Transducer ND2
Enclosure Material Polypropylene
Color Black
Color White
Outdoor Yes
Speaker Type Fullrange
Weight Net 19.8 kg ( 43.65 lbs )
