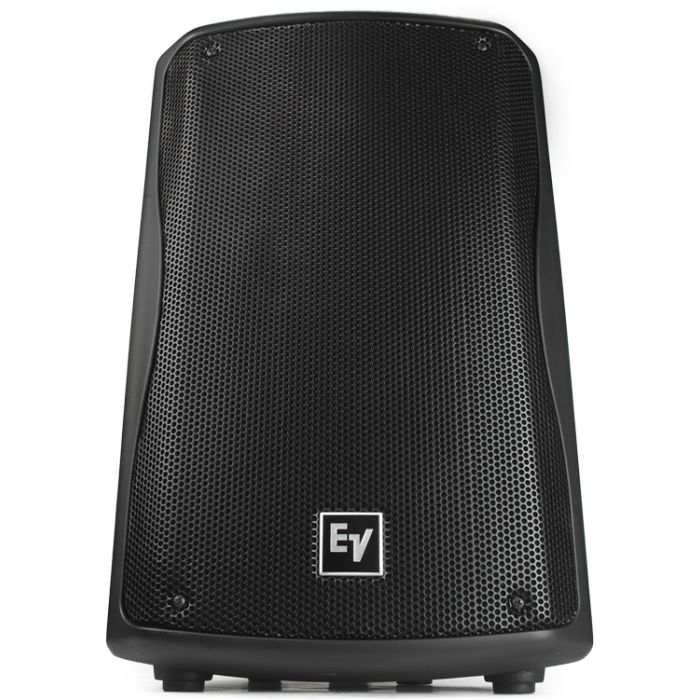

EV ZX1 8" HIGH-PERFORMANCE LIGHTWEIGHT PASSIVE LOUDSPEAKER PASSIVE
Availability: Available
EV
300W RMS
EV®, the world leader in professional, high-performance lightweight loudspeaker design and manufacturing, is pleased to introduce a new generation of small-format, high-output loudspeakers: The Zx1™ speaker line is a broad offering of truly outstanding 8” two-way systems designed as a no-compromise compact solution and available in two distinct product lines.
The Zx1portable model features integrated pole mounting, dual NL4 connectors, built-in carrying slot, and removable rubber feet with four M8 mounting studs for the Portable Music, AV rental and Mobile audio markets.
The Zx1i indoor/outdoor installation series features an integrated QuickSAM wall mounting system, four pole removable phoenix style connectors, a choice of coverage patterns, weatherized construction and a smooth attractive profile for the Fixed Install and Commercial Audio markets.
Where other manufacturers have tried to serve these markets with a “one size fits all solution”, EV has designed these individual Zx1 versions to be specifically tailored to each market. All offer a unique package of unmatched audio performance, versatility and aesthetics, built with top quality components in an extremely lightweight cabinet.
Every Zx1/Zx1i model offers the following features:
- Flexibility: The ZX1 incorporates a number of built in features for simple and fast installations or setups and superior acoustic performance over other competitor’s products, including a rotatable horn for controlled performance in any installation position.
- Big Sound: The ZX1’s long throw 8” woofer coupled with the EV DH2005 1-inch true compression driver has the acoustic performance of 12” and even some 15” boxes.
- Compact Size: Aside from being extremely compact in proportion to its performance, ZX1’s clean lines allow for easy integration into nearly any installation.
- Price “Punch”: ZX1’s extremely competitive price point will wow the user, while reinforcing EV’s reputation for solid performance and construction quality.
- Reliability: ZX1 features full system protection – no blow outs!
| Specification |
|
|---|---|
| Manufacturer | EV |
| Package | 1 Pack |
- Freq. response 60Hz - 20kHz
- Freq. range 48Hz- 20kHz
- Rec. Hipass frequency: 40Hz
- Axial Sensitivity: 94 dB (1W/1m)
- Max SPL 123 dB
- Rated system power: 200W Cont, 400W Prog. 800W Peak
- Crossover Frequency 1.7 kHz
- Nominal Impedance 8 ohms
- Connectors: Neutric Speakon NL4
- Enclosure material: High Impact Plymer
- Grille: Plyester Powder Coated, 18GA Galvanized steel
- Dimensions: 457mm x 282mm x 264mm
- Net Weight: 8.4kg each
- Shipping Weight: 10.2kg each
