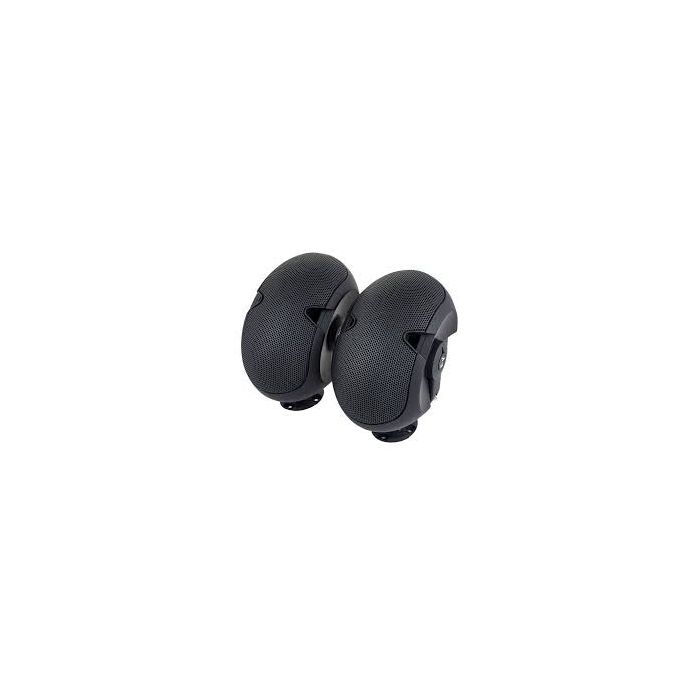

EV Evid 6.2 PAIR Dual 6" two-way surface-mount loudspeaker
Move your mouse over image or click to enlarge
EV Evid 6.2 PAIR Dual 6" two-way surface-mount loudspeaker EV Evid 6.2 PAIR Dual 6" two-way surface-mount loudspeaker EV Evid 6.2 PAIR Dual 6" two-way surface-mount loudspeaker

EV Evid 6.2 PAIR Dual 6" two-way surface-mount loudspeaker

Manufacturer: EV

SKU: EVID6.2

Availability: Available

* Required Fields

Regular Price: $799.00

Special Price $658.00

Qty

Quick Overview

Price per PAIR

  • Compact full range
  • Ideal for shopping malls, sports bars, and health clubs
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems
Chassis Size
6" (152.4 mm)
Color Black, White
Input Connections Spring Terminal
Speaker Type Full-range, Mid-High, Two-Way
Transformer Taps (Transformer Version Only) 70 V/100 V: 15 W, 30 W, 60 W, 8 Ω Bypass
Frequency Response (-10 dB) 62 - 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 94 dB
Max. SPL/1m (calc) 122 dB
Coverage (Nominal -6 dB) H 100 °
Coverage (Nominal -6 dB) V 80 °
System Power Handling (Continuous/Program/Peak) 150//600 Watts
LF Transducer Two 6-inch
LF Power Handling Two 6-inch Watts
HF Power Handling 1-inch Watts
HF Transducer 1-inch
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Outdoor Yes
Height 16.5" (419 mm)
Width 8.98" (228 mm)
Depth 11.73" (298 mm)
Weight Net 5.3 kg (11.68 lbs)
