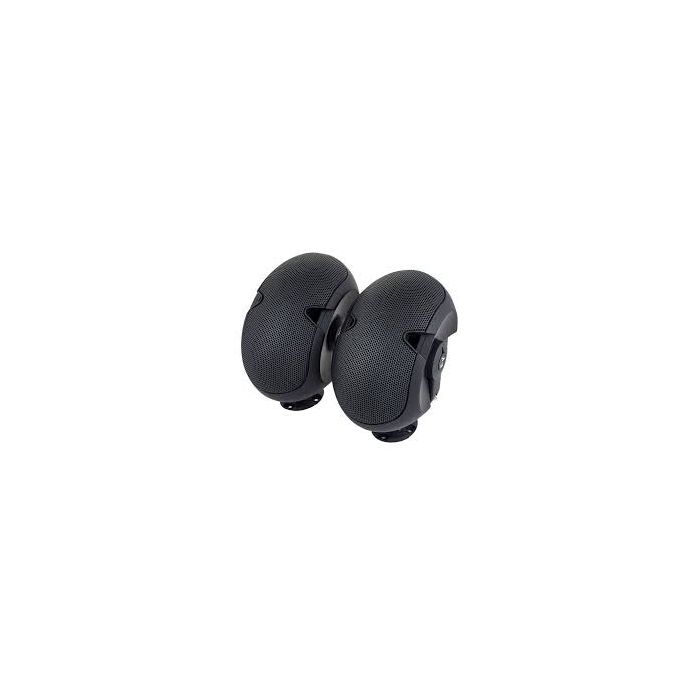

EV Evid 4.2 PAIR Dual 4" two-way surface-mount loudspeaker
Move your mouse over image or click to enlarge
EV Evid 4.2 PAIR Dual 4" two-way surface-mount loudspeaker EV Evid 4.2 PAIR Dual 4" two-way surface-mount loudspeaker EV Evid 4.2 PAIR Dual 4" two-way surface-mount loudspeaker

EV Evid 4.2 PAIR Dual 4" two-way surface-mount loudspeaker

Manufacturer: EV

SKU: EVID4.2

Availability: Available

* Required Fields

$520.00

Qty

Quick Overview

Price per PAIR

  • Compact full range
  • Ideal for restaurants, bars, patios, and retail
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems
Chassis Size 4" (101.6 mm)
Color Black, White
Input Connections Spring Terminal
Speaker Type Full-range, Mid-High, Two-Way
Transformer Taps (Transformer Version Only) 70 V: 3.75 W, 70 V/100 V:7.5 W, 15 W,30 W,8 Ω Bypass
Frequency Response (-10 dB) 65 - 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 89 dB
Max. SPL/1m (calc) 115 dB
Coverage (Nominal -6 dB) H 120 °
Coverage (Nominal -6 dB) V 80 °
System Power Handling (Continuous/Program/Peak) 100//400 Watts
LF Transducer Two 4-inch
LF Power Handling Two 4-inch Watts
HF Power Handling 1-inch Watts
HF Transducer 1-inch
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Outdoor Yes
Height 12.2" (309.89 mm)
Width 6.9" (175.26 mm)
Depth 8.5" (215.9 mm)
Weight Net 3.9 kg (8.6 lbs)
