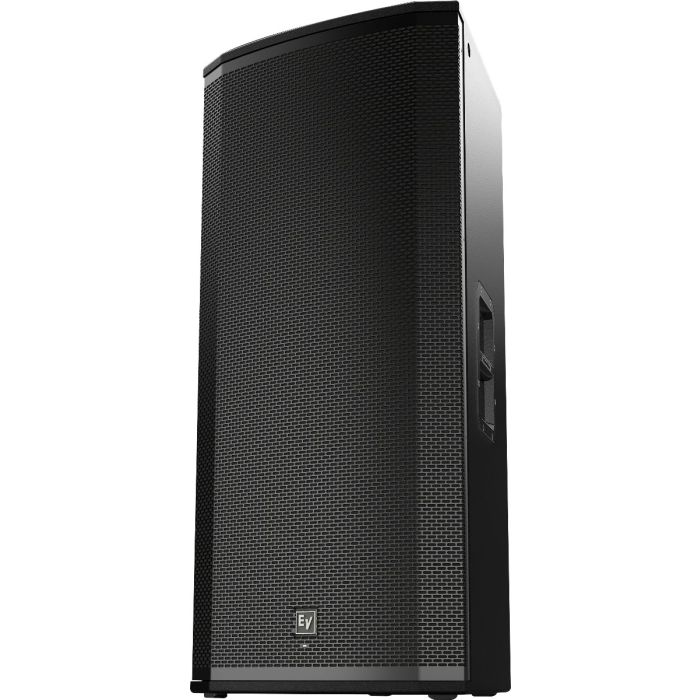

EV ETX-35P 15" Three-Way Powered Loudspeaker
Special Price
A$3,690.00
Regular Price
A$4,775.00
Call for availability
SKU
ETX35P
ETX35P
ETX-35P
15" THREE-WAY POWERED LOUDSPEAKER MADE IN GERMANY
- 15-inch LF SMX woofer
6.5-inch MF driver
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
136 dB peak SPL
- 15-inch LF SMX woofer
- 6.5-inch MF driver
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 136 dB peak SPL
BULKY ITEM - EXTRA FREIGHT CHARGES MAY APPLY PLEASE ENQUIRE
| Custom Stock Status | Call for availability | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ELECTRO VOICE |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Coverage (Nominal -6 dB) H | 60 ° |
| Coverage (Nominal -6 dB) V | 40 ° |
SPECIFICATIONS |
|
| Crossover Frequency | 700 Hz, 2900 Hz |
| Depth | 426 mm |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Family | ETX |
| Frequency Range | 38 Hz – 20 kHz |
| Frequency Response | 48 Hz – 20 kHz |
| Grill | 16AWG steel with powdercoat |
| Height | 1023 mm |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| LF Transducer | SMX2151 380 mm (15 in) |
| Max. SPL/1m (calc) | 136 dB |
| Maximum SPL | 136 peak dB |
| MF Transducer | EVS-6C 6.5-in midbass driver |
| Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
| Power Rating | 2000 W |
| Powered or Passive | Powered |
| Shipping Weight | 46.8 kg |
| Speaker Type | Full-Range, three-way, powered speakers |
| Suspension | (8) M10 suspension points |
| Weight Net | 41.7 kg |
| Width | 469 mm |
| Woofer Size | 15 mm |
