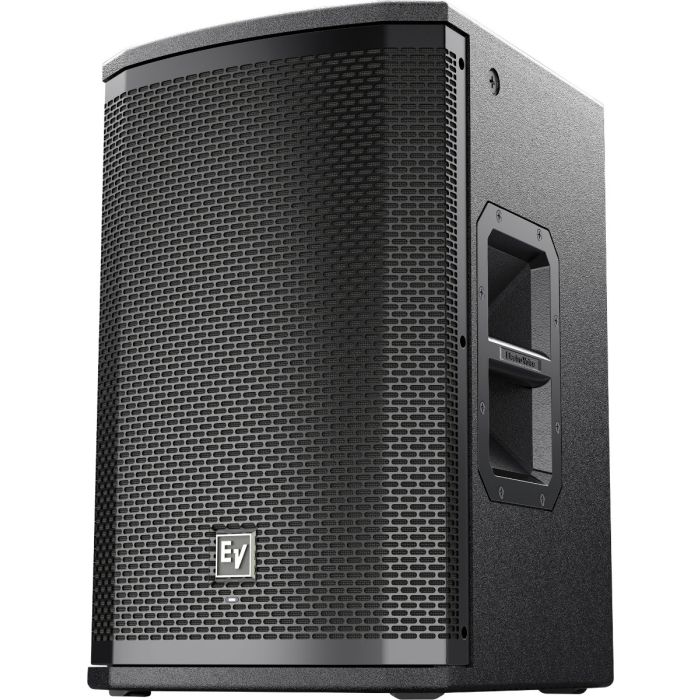

ETX-10P

10" Two-Way Powered Loudspeaker Made in Germany

10-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
134 dB peak SPL

Connector Type	(2) XLR/TRS combo jack and (1) XLR link output
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	60 °
Specifications

Crossover Frequency	1700 Hz
Depth	365 mm
Enclosure Material	18-mm, 13-ply birch plywood with EVCoat
Family	ETX
Frequency Range	65 Hz – 20 kHz
Frequency Response	85 Hz – 20 kHz
Grill	16AWG steel with powdercoat
Height	526 mm
HF Transducer	DH3-B 1.25-in titanium compression driver
LF Transducer	SMX2100 254 mm (10 in)
Max. SPL/1m (calc)	134 dB
Maximum SPL	134 peak dB
Power Consumption	100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
Power Rating	2000 W
Powered or Passive	Powered
Shipping Weight	22.9 kg
Speaker Type	Full-Range, two-way
Suspension	(8) M10 suspension points
Weight Net	20.3 kg
Width	330 mm
Woofer Size	15 mm
