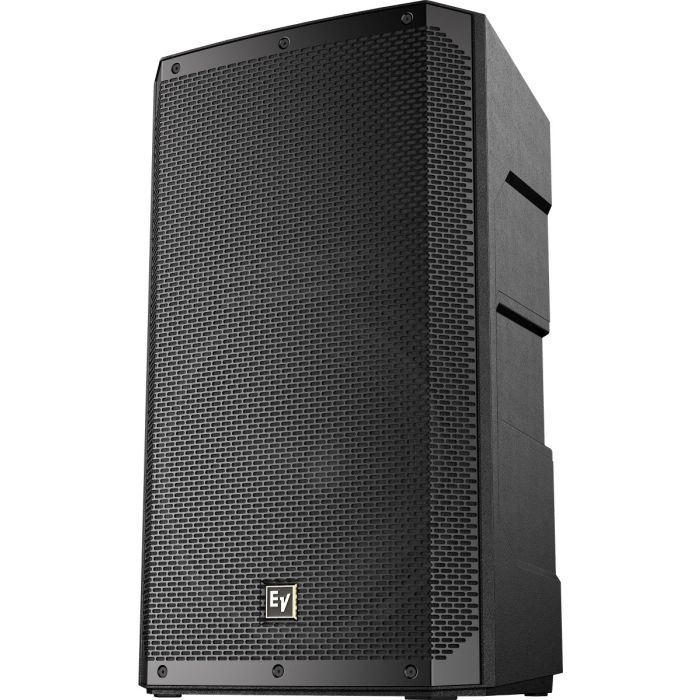

EV ELX200-15 15" PASSIVE LOUDSPEAKER
Move your mouse over image or click to enlarge
EV ELX200-15 15" PASSIVE LOUDSPEAKER EV ELX200-15 15" PASSIVE LOUDSPEAKER EV ELX200-15 15" PASSIVE LOUDSPEAKER

EV ELX200-15 15" PASSIVE LOUDSPEAKER

SKU: ELX200-15

check availability

$929.00

Quick Overview

15" PASSIVE LOUDSPEAKER

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

  • 1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • High-output EVS-15M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
Weight Net41.23lbs (18.7kg)
Depth15.12" (384mm)
Width16.65" (423mm)
Height27.95" (710mm)
Available ColorBlack
Axial Sensitivity (SPL, 1 W @ 1 m)95dB
Connector TypeDual NL4
Coverage (Nominal -6 dB) H90°
Coverage (Nominal -6 dB) V60°
Crossover Frequency1.6 kHz
Enclosure MaterialPolypropylene composite
FamilyELX200
Frequency Range (-10 dB)52 Hz - 19 kHz
Frequency Response (-3 dB)77 Hz - 16 kHz
Grille18 AWG steel with powdercoat
HF TransducerDH-1C 1-inch titanium compression driver
LF TransducerEVS-15M 381 mm (15 in)
Max. SPL/1m (calc)130dB
Minimum Impedance7.0Ω
Nominal Impedance
Power Handling (Continuous / Peak)300W/1200W
Power Rating1200W
Recommended High-Pass Frequency42Hz
Shipping Weight47.18lbs (21.4kg)
Speaker TypeFull-Range
Suspension(3) M10 suspension points
Woofer Size15inch
