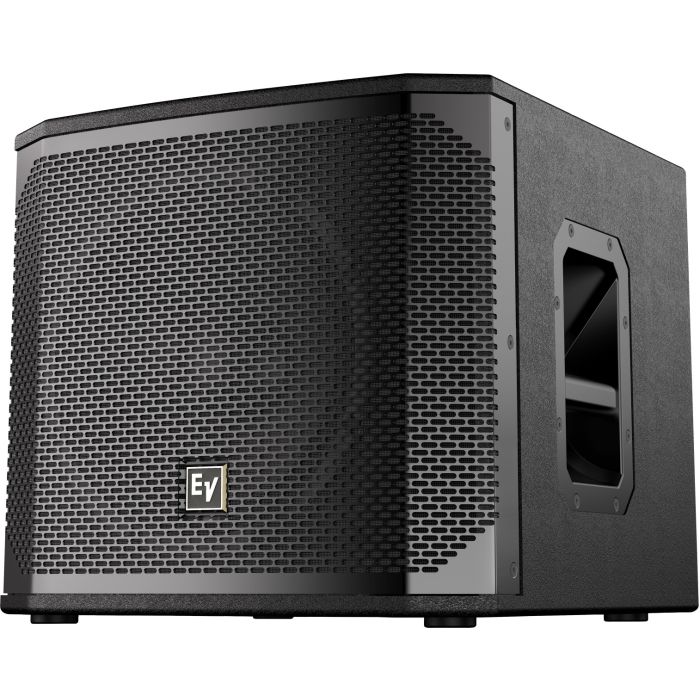

EV ELX200-12S 12" PASSIVE SUBWOOFER
Availability: Available
12" PASSIVE SUBWOOFER
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
.
- 1600 W (peak), 129 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
- High-output EVS-12L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- System reliability verified with over 500 hours of abuse testing and endurance testing.
- Ideal for portable and installed applications. Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
- Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Package | 1 Pack |
| Weight Net | 44.53lbs (20.2kg) |
| Depth | 17.99" (457mm) |
| Width | 17.52" (445mm) |
| Height | 15.63" (397mm) |
| Available Color | Black |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 93dB |
| Connector Type | Dual NL4 |
| Enclosure Material | 15 mm plywood with durable polyurea top-coat finish |
| Family | ELX200 |
| Frequency Range (-10 dB) | 33 Hz - 300 Hz |
| Frequency Response (-3 dB) | 42 Hz - 220Hz |
| Grille | 18 AWG steel with powdercoat |
| HF Transducer | |
| LF Transducer | EVS-12L 300 mm (12 in) |
| Max. SPL/1m (calc) | 129dB |
| Minimum Impedance | 6.9Ω |
| Nominal Impedance | 8 ΩΩ |
| Power Handling (Continuous / Peak) | 400 W/1600W |
| Power Rating | 1600W |
| Recommended High-Pass Frequency | 42Hz |
| Shipping Weight | 44.53lbs (20.2kg) |
| Speaker Type | Subwoofer |
| Suspension | |
| Woofer Size | 12inch |
