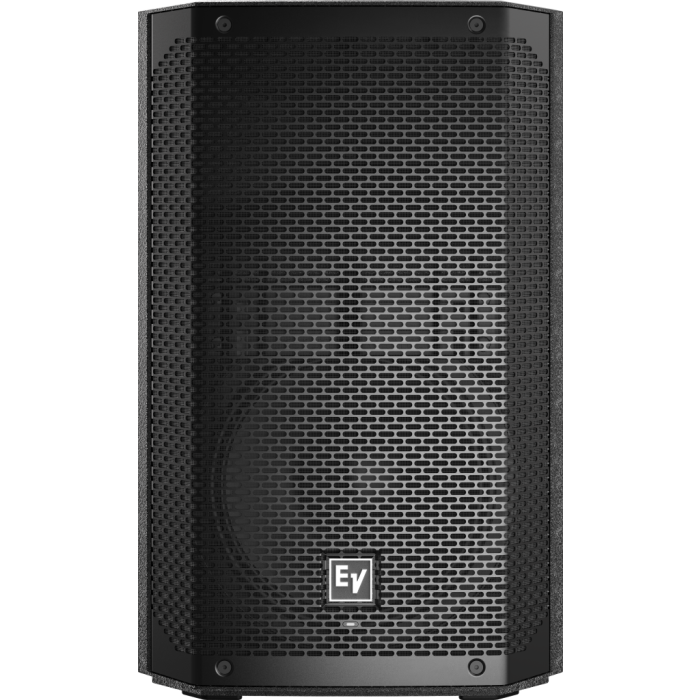

The Electro-Voice ELX200-10P is the new generation of powered 2-way speaker systems, loaded with the latest technologies for the best sound yet. This 10″ powered box features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (10-inch EVS-10M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind.
Type: Powered 2-Way Loudspeaker
Power Rating: 1200W
Max. SPL/1m: 130dB (calc)
Woofer Size: 10″ (254 mm)
HF Size: 1″ (25.4 mm)
HF Driver: DH-1C
Coverage (HxV): 90° x 60° (Nominal -6 dB)
Crossover Frequency: 1800Hz
Inputs: 1x Stereo RCA Input, 2x XLR/TRS combo jack
Outputs: 1x XLR
Power: 240VAC / 50Hz (1.8A)
Suspension Mounts: 3x M10 suspension points
Enclosure Material: Polypropylene Composite
Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.8A
Dimensions: 319 x 531 x 330 mm
Weight Net: 13.5kg
