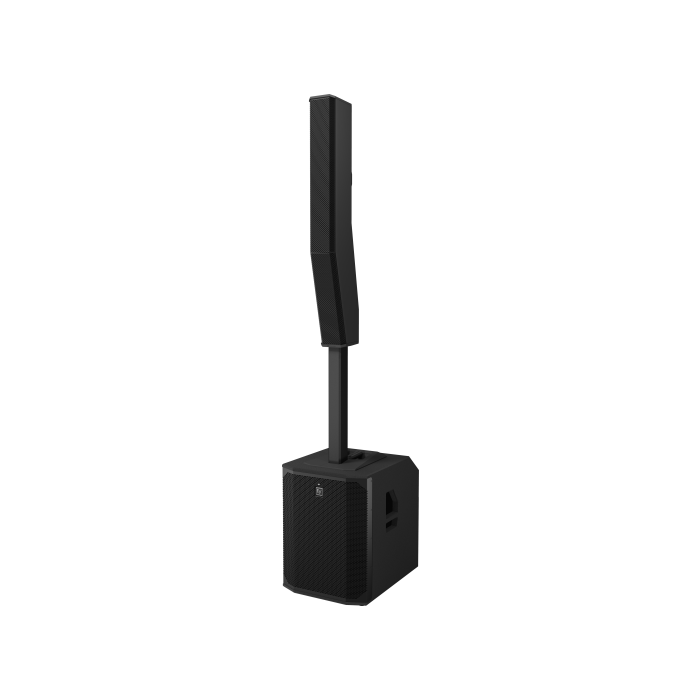

The EVOLVE 70 Column Loudspeaker System is a powerful yet portable addition to the EVOLVE family. It’s designed to deliver impeccable audio quality and high output while remaining easy to use and transport — ideal for professionals handling larger gigs.
EVOLVE 70 continues the family tradition of portability, using advanced materials and ergonomic design to ensure both outstanding acoustic performance and lightweight construction.
With a maximum SPL of 133 dB, it features eight 4.7” neodymium drivers for wide 120° horizontal coverage and 25° vertical coverage via proprietary waveguides. FIR processing ensures linear frequency response and phase alignment. The 15” subwoofer delivers powerful low-end extension down to 35 Hz, supported by efficient laminar-flow vents and 3” voice coils for punchy bass performance.
Connectivity includes XLR/TRS combo mic/line inputs, XLR and RCA line inputs, AES/EBU digital input, Bluetooth audio, and integration with the QuickSmart Mobile App for wireless control of multiple EV speakers.
Built for pro DJs, bands, production companies, and venues, the EVOLVE 70 follows the EVOLVE 3-2-1 assembly standard — three parts, two clicks, one system — for quick setup and teardown.
Available in black or white, the system uses an aluminum distance pole, lightweight components, and includes a carry case for the array and pole. An optional transport dolly is available, keeping EVOLVE’s reputation for portability intact.
Custom Stock Status | Call for availability | ||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specification |
|
||||||||||||||||||||||||||
Package | 1 Pack |
Specification | Details |
---|---|
Column array | 8x 4.7” neodymium drivers |
Subwoofer | 15” |
Subwoofer voice coil | 3” |
Connectors | 2x XLR/TRS combo, 1x stereo XLR/RCA, AES/EBU digital I/O, QuickSmart Link, Bluetooth® stereo, & PowerCON® |
Frequency response | 40 Hz – 18 kHz |
Frequency range | 35 Hz – 20 kHz |
Maximum SPL | 133 dB |
Coverage | 120° x 25° |
Amplifier rating | 2000W |
LF channel | 1000W |
HF channel | 1000W |
Total weight | 35.5 kg / 78.3 lbs |
