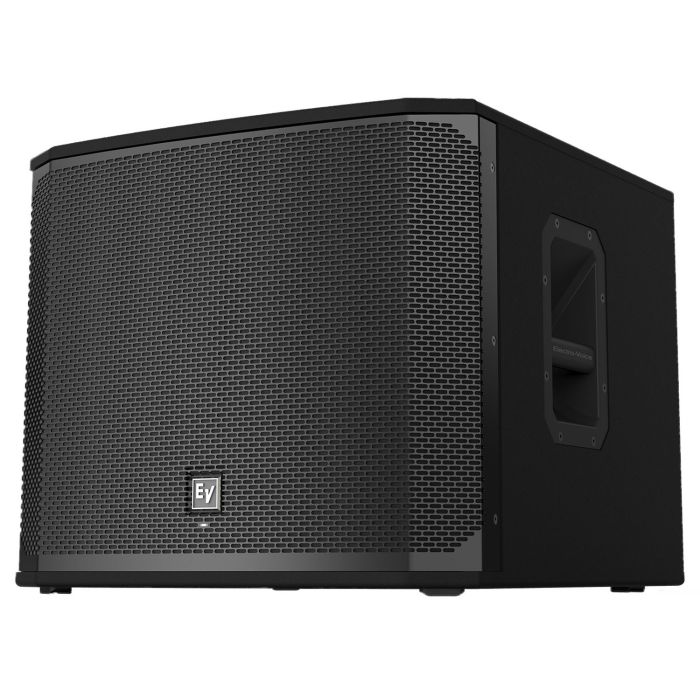

EV EKX-15SP 15" Powered Subwoofer

Categories

News

JavaScript seems to be disabled in your browser.
You must have JavaScript enabled in your browser to utilize the functionality of this website.

QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
High-efficiency 1300 W Class D power amplifier delivers up to 133 dB peak SPL on the EKX-15SP utilizing high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.

BULKY ITEM, ADDITIONAL FREIGHT CHARGES MAY APPLY. PLEASE ENQUIRE

Low Pass Frequency	Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Maximum SPL	133 dB peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output
Power Consumption	1.8 A Current rating is 1/8 power
Power Rating	1300 W
Frequency Response (-3 dB)	45 Hz - 150 Hz Hz Half Space Measurement
Frequency Response (-10 dB)	40 Hz - 180 Hz Hz Half Space Measurement
LF Transducer	EVS-15C 381 mm (15 in)
Connector Type	(2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure Material	15 mm, plywood with EVCoat
Grill	18 AWG steel with powdercoat
Height	455 mm (17.91")
Width	530 mm (20.87")
Depth	551 mm (21.69")
Weight Net	26.2 kg (57.76 lbs)
Shipping Weight	32.6 kg (71.87 lbs)
