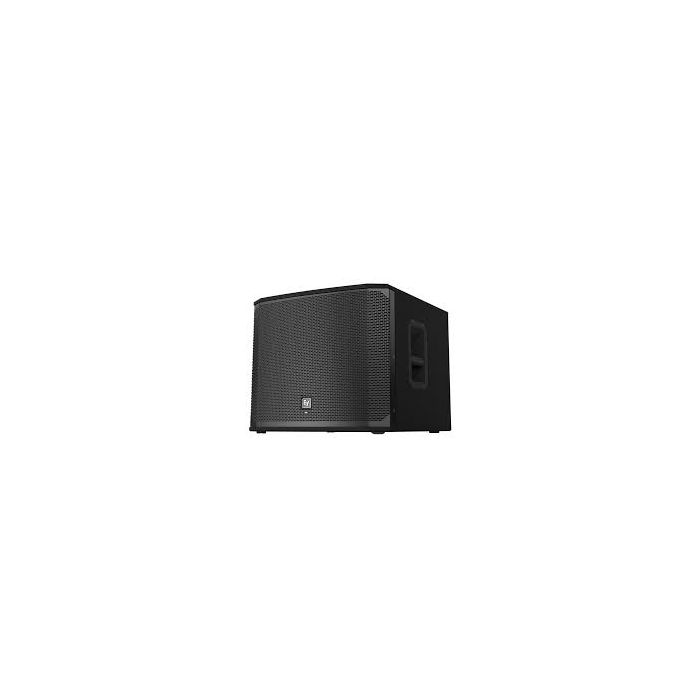

EV EKX-15S 15" Passive Subwoofer

JavaScript seems to be disabled in your browser.
You must have JavaScript enabled in your browser to utilize the functionality of this website.

Item Description
Specifications
Reviews

1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar (two bars on the EKX-18S).
M20 threaded pole mount plate.

BULKY ITEM, ADDITIONAL FREIGHT CHARGES MAY APPLY. PLEASE ENQUIRE

Axial Sensitivity (SPL, 1 W @ 1 m)	95 dB
Connector Type	Dual NL4
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	60 °
Enclosure Material	15 mm, plywood with EVCoat
Frequency Response (-10 dB)	40 Hz - 300 Hz Half Space Measurement
Frequency Response (-3 dB)	60 Hz - 100 Hz Half Space Measurement
Grill	18 AWG steel with powdercoat
LF Transducer	EVS-15C 381 mm (15 in)
Maximum SPL	133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Minimum Impedance	7.5 Ω
Nominal Impedance	8 Ω
Power Handling (Continuous / Peak)	400 W/1600 W
Recommended High-Pass Frequency	35 Hz
Shipping Weight	31.3 kg (69 lbs)
Height	11RU 455 mm (17.91")
Width	530 mm (20.87")
Depth	551 mm (21.69")
Weight Net	24.9 kg (54.9 lbs)
