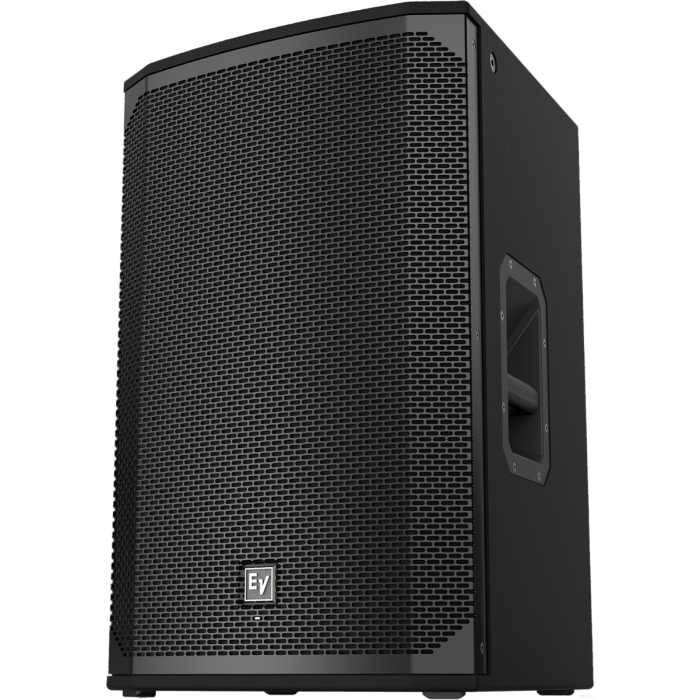

EV EKX-15 15" Two Way Passive Loudspeaker

Categories

News

JavaScript seems to be disabled in your browser.
You must have JavaScript enabled in your browser to utilize the functionality of this website.

EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Specifications

Axial Sensitivity (SPL, 1 W @ 1 m)	96 dB Full Space Measurement
Connector Type	Dual NL4
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	60 °
Crossover Frequency	1.6 k Hz
Enclosure Material	15 mm, plywood with EVCoat
Frequency Response (-10 dB)	50 Hz - 20 k Hz Full Space Measurement
Frequency Response (-3 dB)	75 Hz - 18 k Hz Full Space Measurement
Grill	18 AWG steel with powdercoat
HF Transducer	DH-1M 1-inch titanium compression driver
LF Transducer	EVS-15M 381 mm (15 in)
Maximum SPL	132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Minimum Impedance	7.2 Ω
Nominal Impedance	8 Ω
Power Handling (Continuous / Peak)	400 W/1600 W
Recommended High-Pass Frequency	50 Hz
Shipping Weight	28.2 kg (62.17 lbs)
Suspension	(8) M10 threaded mounting points
Height	16RU 685 mm (26.97")
Width	432 mm (17.01")
Depth	429 mm (16.89")
Weight Net	23.2 kg (51.15 lbs)
