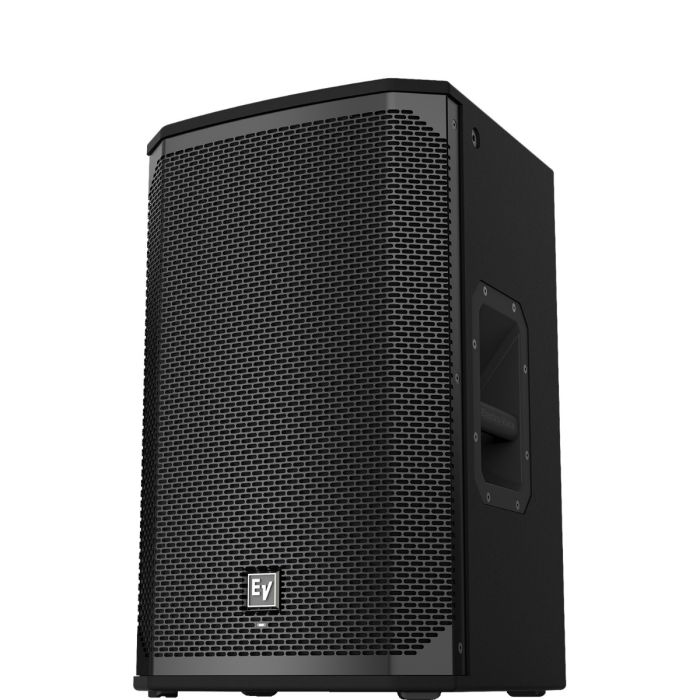

EV EKX-12 12" Two Way Passive Loudspeaker

Categories

News

JavaScript seems to be disabled in your browser.
You must have JavaScript enabled in your browser to utilize the functionality of this website.

EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Axial Sensitivity (SPL, 1 W @ 1 m)	95 dB
Connector Type	Dual NL4
Coverage (Nominal -6 dB) H	90 °
Crossover Frequency	1.6 k Hz
Enclosure Material	15 mm, plywood with EVCoat
Frequency Response (-10 dB)	55 Hz - 20 k Hz Full Space Measurement
Frequency Response (-3 dB)	82 Hz - 18 k Hz Full Space Measurement
Grill	18 AWG steel with powdercoat
HF Transducer	DH-1M 1-inch titanium compression driver
LF Transducer	EVS-12M 300 mm (12 in)
Maximum SPL	131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Minimum Impedance	7.5 Ω
Nominal Impedance	8 Ω
Power Handling (Continuous / Peak)	350 W/1400 W
Recommended High-Pass Frequency	55 Hz
Shipping Weight	21.4 kg (47.18 lbs)
Suspension	(8) M10 threaded mounting points
Height	14RU 607 mm (23.9")
Width	375 mm (14.76")
Depth	356 mm (14.02")
Weight Net	17.4 kg (38.36 lbs)
