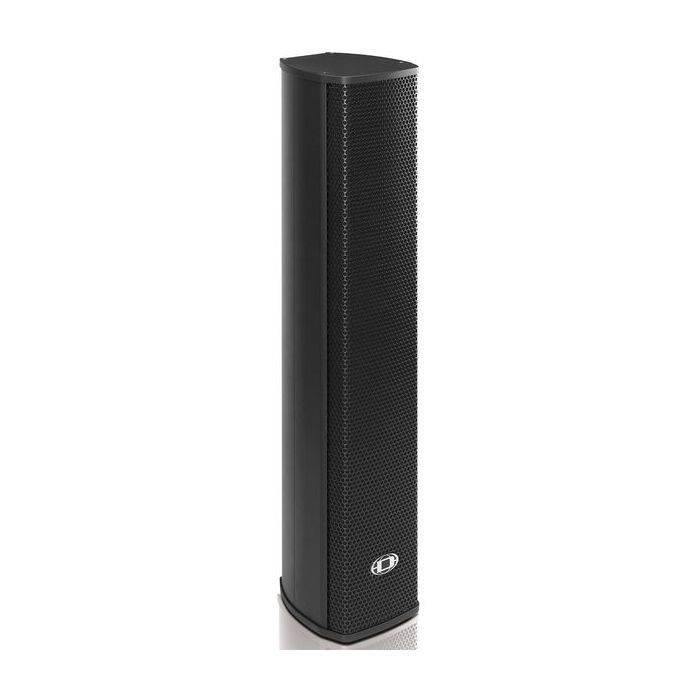

Dynacord TS400 Passive 2.5-way Verticle Array
Move your mouse over image or click to enlarge
Dynacord TS400 Passive 2.5-way Verticle Array Dynacord TS400 Passive 2.5-way Verticle Array Dynacord TS400 Passive 2.5-way Verticle Array Dynacord TS400 Passive 2.5-way Verticle Array Dynacord TS400 Passive 2.5-way Verticle Array Dynacord TS400 Passive 2.5-way Verticle Array

Dynacord TS400 Passive 2.5-way Verticle Array

Manufacturer: Dynacord

SKU: TS400

Availability: Available

Regular Price: $3,359.00

Special Price $2,519.00

Qty

Quick Overview

600W RMS

Vertical pattern control is a requirement for highest sound quality and speech intelligibility, especially in difficult acoustic spaces. The TS 400 was designed to provide a very even and smooth coverage over a very wide bandwidth by using spaced and filtered woofers as array elements. The 2.5 way design places elements at the ends of the column for maximum distance to lower the effective controlled frequency. The MF-elements and the HF-element are placed in the middle of the cabinet for a smooth transition of the mids to the HF and to extend the coverage control. Each group of elements has its own bandpass filter to optimize the array’s performance to provide good attenuation at 90° off-axis and evenly cover the audience area front to rear with half the rate of attenuation of a non “steered” cluster.

The TS 400 is equipped with 4 x 6,5” DND 6130-16 Neodymium woofers and one Electro-Voice DH3 compression driver coupled with a 90° by 40° constant directivity horn providing very high SPL and excellent coverage. Power handling is 600W RMS / 2.400W peak.
Separate protection circuits for the LF-, MF- and HF-elements are used to protect all transducers at the highest power levels. The TS 400 enclosure is aluminum for a very robust but lightweight design with a look that fits any environment.

TA-TS400 tilt adaptor can be used to precisely aim the system for optimum audience coverage.

The optional mounting bracket WMK-25 allows for wall-mount applications with up to 30° of tilt.

The optional carrying bag CB-TS400 is the ideal accessory for easy, protected transportation of the TS 400.


  • Cabinet Full Range
  • Configuration Passive 2.5-Way
  • Nominal impedance 4 Ohms
  • Rated Power RMS 600 W
  • Peak Power 2400 W
  • Sound pressure level
  • SPL 1 W / 1 m 97 dB
  • Max. SPL 1m (calculated with
  • peak power)
  • 131 dB
  • Frequency Range (-10 dB) 74 Hz to 20 kHz
  • Nominal Coverage Angle
  • (Horizontal x Vertical)
  • 90° x 40°
  • X-Over Frequency 2600 Hz
  • LF Transducer 4 x DND 6130-16
  • HF Transducer Electro-Voice DH-3
  • Connectors 2 x Neutrik Speakon NL4
  • Dimensions (W x H x D) 199 mm x 935 mm x 281 mm
  • Net Weight 17 kg
  • Enclosure material Aluminum
  • Grille Steel, black finish
  • Suspension 10 x M6
  • Warranty 5 years
  • Optional Accessories
  • TA-TS400 Tilt adaptor F01U267861
  • FB-TS400 Flying Kit F01U267862
  • WMK-25 Wallmountkit F01U260845
  • CB-TS400 Carrying bag F01U215168
  • Spare Parts
  • LF Transducer F01U107488
  • HF Transducer F01U103119
  • Recommended extensions
  • PSD 215 Powered Subwoofer 15“ F01U215169
  • PSD 218 Powered Subwoofer 18“ F01U215170
