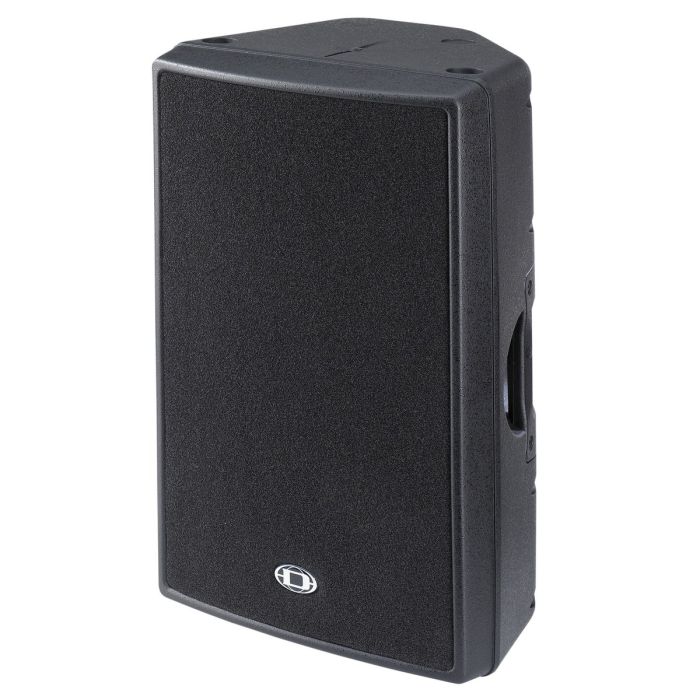

With the newly designed D15-3, DYNACORD fulfi lls a longtime customer demand for a light-weight, extremely robust high-performance professional 15“ 3-way plastic cabinet for use in professional, portable and fixed install sound reinforcement applications.
With a variety of suspension accessories and conservative cosmetics, the D15-3 is also ideally suited to be used in demanding fi xed installations. The cabinet is manufactured from Polypropylene and therefore is extremely resistant against abuse on the road. For low frequencies a DYNACORD DND 15400 Neodymium cone transducer is used.
The midrange is projected from the ultra-low distortion DYNACORD DND 6120 Neodymium cone transducer with a conical radiation pattern of 120°. The DND 6120 guarantees excellent intelligibility without any necessity of precise aiming. The Electro-Voice DH 3 driver is used for the projection of the high frequencies. The Constant-Direcctivity HF horn has been integrated into the baffl e by CAD methods. The nominal coverage angle of the cabinet is 90°*50°, horizontal*vertical, respectively. Power handling of the cabinet is 500W (continuous), 1000W (program) and 2000W peak. The maximum sound pressure level is 130dB, the frequency range of the D15-3 is 50Hz to 18kHz. The D15-3 is ideally suited for applications as full-range cabinet or as Mid-Hi cabinet in in high-performance small-format active and passive satellite systems.
Great news! We have found a speaker cover which fits D15-3 like a glove.
It is a genuine Electro-Voice cover for a ETX15P speaker only $119
Configuration Passive 3-Way
Nominal impedance 8 Ohms
Rated power RMS 500 Watts
Program power 1000 Watts
Peak power 2000 Watts
SPL 2,83 V / 1m 1W / 8 Ohm 100 dB
Max. SPL 1m (calculated with 133 dB
Frequency range ( -10dB ) Full range 50 Hz - 18kHz
Coverage angle 1 kHz -6dB 120° Conical
Coverage angle 10kHz -6dB 90° * 50°
Passive crossover frequency 700Hz, 4kHz
Voice coil tracking protection Yes
Component HIGH Electro-Voice DH-3
Component MID DYNACORD DND 6120 Neodymium
Component LOW DYNACORD DND 15400 Neodymium
Connectors Full-Range 1+, 1-
Wired through 2+, 2-
Connector model Speakon 2x NL4 MPR
Dimensions (WxHxD) mm 446.4 x 685.2 x 413.0
Shipping weight 26 kg
Net weight 24 kg
Enclosure material Heavy Duty Polypropylene
Grille Powder coated steel, Acoustic Foam
Warranty 36 Month
