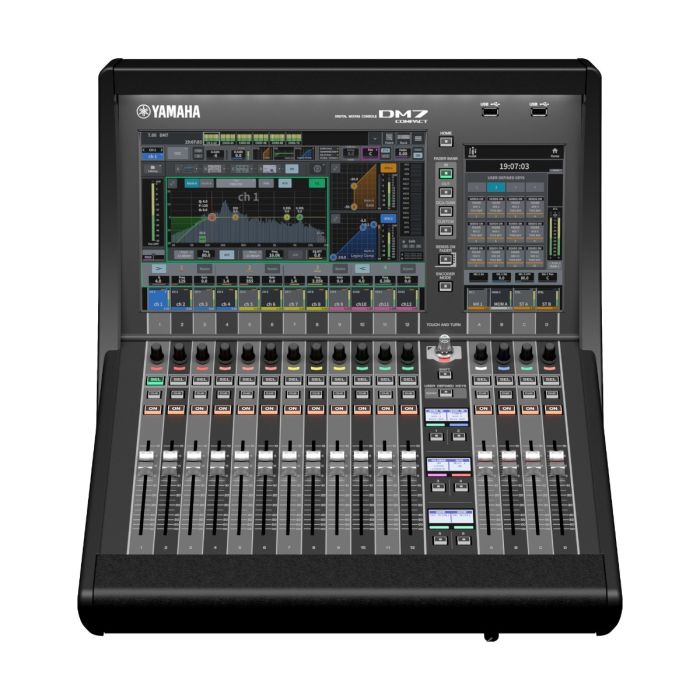

Yamaha DM7 Compact Digital Mixing Console
Special Price
A$23,999.00
Regular Price
A$24,999.00
SKU
DM7C
DM7C Digital Mixing Console
The DM7 series is an innovative digital mixer lineup that not only guarantees unparalleled sound quality, ease of operation, and high reliability to connect engineers, artists, and audiences, but is also highly scalable and flexible enough to adapt according to application. A DM7 setup can take on a variety of configurations depending on the engineer's preferences and can support a wide range of sonic environments.
LIVE SOUND (+STREAMING)
Create simple custom live sound systems with Dante
The DM7 series keeps system design simple with Dante—even live sound systems with multiple consoles.
Each piece of equipment is connected with thin, lightweight Ethernet cables.
The Port to Port function is used to turn the local inputs of the DM7 for the monitors into a stage box for connecting other mixers via Dante to cut down on equipment.
The gain compensation function makes it possible to adjust the levels from each console. Also, installing the bundled Steinberg Nuendo Live software on computers connected via Dante facilitates live recordings.
THEATER
DM7 readily accommodates large systems
The DM7 series features a Theatre Package, a controller with physical controls, and two differently sized consoles that give engineers and venues the ability to create their ideal systems.
In the system shown here, the engineer uses AFC Image, utilizing the DM7-EX panner for smooth control of the hall’s immersive sound.
All equipment is connected via Dante, and ProVisionaire Control can be used for control.
HOUSE OF WORSHIP
Split mode enables FOH and monitor mixing
The functions of the DM7 paired with the sound systems of smaller churches make announcing efficient and easy with minimal equipment.
A DM7 installed in the FOH booth can be used in split mode to turn it into a combination FOH-monitor mixer and put together a range of Scenes individually. MonitorMix can be used to give artists the power to adjust their own monitors to their liking.
The HA, Naming, and Fader Assist functions offer help and save time when less-experienced volunteers are at the controls.
Control and monitoring of I/O and DZR speakers can be performed directly on the mixer, centralizing system management.
CORPORATE EVENT
Compact system ideal for conferences and speech events
The DM7 Compact all-in-one mixer is the perfect size for conferences, talks, and other events that require unobtrusive systems that fit into small spaces. The DM7 Compact has inputs for up to 16 mics, and the Dan Dugan Automixer on the channel strip can be used to optimize the balance for lecturers’ and announcers’ microphones. USB flash drive compatibility makes it easy to record events and play background music. With DZR12-D speakers, the minimum number of operators can efficiently monitor levels and mute speaker audio from the console.
| Specification |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Yamaha |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package | 1 Pack | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DM7 | DM7 Compact | ||
|---|---|---|---|
| Mixing Capacity | Input Channels | 120 mono | 72 mono |
| Mix Buses | 48 | 48 | |
| Matrices | 12 (Input to Matrix supported) | 12 (Input to Matrix supported) | |
| Stereo Buses | 2 | 2 | |
| Mono Buses | 1 (Stereo B can be changed) | 1 (Stereo B can be changed) | |
| Cue Buses | 2 | 2 | |
| I/O Connectors | Analog Input | 32 | 16 |
| Analog Output | 16 | 16 | |
| Dante | Primary / Secondary | Primary / Secondary | |
| AES/EBU Input | 2 (4ch) with SRC | 0 | |
| AES/EBU Output | 2 (4ch) with SRC | 1 (2ch) | |
| Expansion Slot (PY Slot) | 1 | 1 | |
| Word Clock I/O | In / Out | In / Out | |
| MIDI | No (MIDI protocol supported on USB to HOST) | No (MIDI protocol supported on USB to HOST) | |
| GPI | 5 in / 5 out | 5 in / 5 out | |
| USB TO DEVICE | 2 (File Save / Load, 2 Track Rec / Play) | 2 (File Save / Load, 2 Track Rec / Play) | |
| USB TO HOST | 1 (USB Type-C, USB2.0) | 1 (USB Type-C, USB2.0) | |
| Ethernet | Yes | Yes | |
| Meter Bridge | On screen | On screen | |
| Lamp | 0 (Bulit-in LED Strip Light) | 0 (Bulit-in LED Strip Light) | |
| Video Out | No | No | |
| TC In | Yes | Yes | |
| Phones | 1 | 1 | |
| AC | 2 (V-Lock Type) | 2 (V-Lock Type) | |
| External Redundant Power Supply | Built-in dual power supply | Built-in dual power supply | |
| Scene Memory | Number of Scenes | 500 | 500 |
| Recall Safe | Yes | Yes | |
| Focus Recall | Yes | Yes | |
| Fade Time | Yes | Yes | |
| Preview | Yes: Future Update | Yes: Future Update | |
| Selective Load / Save | Yes | Yes | |
| Global Paste | Yes | Yes | |
| Event List | No | No | |
| Overlay | No | No | |
| Isolate | No | No | |
| Tactile Control Keys | No | No | |
| Input Channel Functions | Input A/B | Yes | Yes |
| Gain Compensation | Yes | Yes | |
| Digital Gain | Yes (-96 dB to +24 dB) | Yes (-96 dB to +24 dB) | |
| Attenuator | Yes (-96 dB to +24 dB) | Yes (-96 dB to +24 dB) | |
| HPF | 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable | 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable | |
| PEQ | 4 Band Full PEQ (4 algorithms, RTA overlay supported) | 4 Band Full PEQ (4 algorithms, RTA overlay supported) | |
| LPF | 20 Hz to 20 kHz, -6/-12 dB/oct | 20 Hz to 20 kHz, -6/-12 dB/oct | |
| Dynamics 1 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser | |
| Dynamics 2 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | |
| Input Delay | Yes (0 ms to 1,000 ms) | Yes (0 ms to 1,000 ms) | |
| Pan | Center Nominal / LR Nominal | Center Nominal / LR Nominal | |
| DCA Group | 24 (Output DCA supported) | 24 (Output DCA supported) | |
| DCA Rollout | Yes | Yes | |
| MUTE Group | 12 | 12 | |
| Number of Inserts | 4 slots on 1 insert point | 4 slots on 1 insert point | |
| Dan Dugan Automixer | Yes (Up to 64ch) | Yes (Up to 64ch) | |
| Direct Out | Yes | Yes | |
| Output Channel Functions | PEQ | 8 Band Full PEQ | 8 Band Full PEQ |
| GEQ | Virtual Rack (EQ Rack) | Virtual Rack (EQ Rack) | |
| Dynamics 1 | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp | |
| Output Channel Delay | Yes (0 ms to 1,000 ms) | Yes (0 ms to 1,000 ms) | |
| MUTE Group | 12 | 12 | |
| Number of Inserts | 4 slots on 1 insert point | 4 slots on 1 insert point | |
| Premium Rack | Number of DSP Resources | 64 | 64 |
| Mountable Plug-ins | RND Portico5033 / RND Portico5043 / Portico 5045 / U76 / Opt-2A / Comp276 / Buss Comp 369 / MBC4 / DaNSe / EQ-1A / Equalizer601 / Dynamic EQ / Dynamic EQ4 / REV-X / OpenDeck / Analog Delay / Max100 / Vintage Phaser / Dual Phaser / HQ.Pitch | RND Portico5033 / RND Portico5043 / Portico 5045 / U76 / Opt-2A / Comp276 / Buss Comp 369 / MBC4 / DaNSe / EQ-1A / Equalizer601 / Dynamic EQ / Dynamic EQ4 / REV-X / OpenDeck / Analog Delay / Max100 / Vintage Phaser / Dual Phaser / HQ.Pitch | |
| Effect Rack | Number of DSP Resources | 16 | 16 |
| Number of Effect Types | 43 | 43 | |
| EQ Rack | Number of DSP Resources | 32 | 32 |
| Mountable Devices | 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported) | 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported) | |
| Dante | Number of I/O Channels | 144 in / 144 out | 144 in / 144 out |
| Number of I/O devices that can be discovered from the console | 127 *1 | 127 *1 | |
| Number of I/O devices that can be mounted | 24 | 24 | |
| Number of I/O devices with HA remote control | 24 | 24 | |
| Dante Patch from Console | Yes | Yes | |
| USB to Host | Number of Audio I/O Channels | 18 in / 18 out | 18 in / 18 out |
| USB MIDI | Yes | Yes | |
| Monitor | Solo Mode | Yes | Yes |
| Oscillator | Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise | Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise | |
| Other Functions | Port to Port | Yes | Yes |
| Timecode Reader/Display | Yes | Yes | |
| Timecode Chase | No | No | |
| GPI | Yes (5 in / 5 out) | Yes (5 in / 5 out) | |
| MIDI | Yes (USB MIDI) | Yes (USB MIDI) | |
| OSC Server | Yes | Yes | |
| DAW Remote | Yes | Yes | |
| Nuendo Live: Control Integration | Yes | Yes | |
| Virtual Soundcheck | Yes | Yes | |
| Wireless Mic Monitoring | Yes | Yes | |
| RTA | Yes | Yes | |
| Delay Compensation | Yes | Yes | |
| Output Port Delay | Yes（Up to 20 ports）*Future Update | Yes（Up to 20 ports）*Future Update | |
| Sub In | Yes | Yes | |
| User Levels | Yes | Yes | |
| Channel Link | Yes | Yes | |
| Temporary Channel Link | Yes *Future Update | Yes *Future Update | |
| Multi Language Channel Names | Yes | Yes | |
| Mix/Matrix to Input | Yes | Yes | |
| Split Mode | Yes | Yes | |
| Assist | Yes (HA / Naming / Fader) | Yes (HA / Naming / Fader) | |
| User Interface | Displays | 12.1” multi-touch x 2, 7” multi-touch x 1 | 12.1” multi-touch x 1, 7” multi-touch x 1 |
| Faders | 24 + 4 | 12 + 4 | |
| Channel / Screen Encoders | Yes | Yes | |
| Channel Name / Color Displays | No (on-screen) | No (on-screen) | |
| Custom Fader Banks | Yes | Yes | |
| Shift Keys | Yes | Yes | |
| User Defined Keys | Surface: 12 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks) | Surface: 6 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks) | |
| User Defined Knobs | Yes (by 4 encoders below the Utility screen) | Yes (by 4 encoders below the Utility screen) | |
| Touch and Turn Knobs | Yes | Yes | |
| Monitor Level Knobs | No | No | |
| Arm Rest | Yes | Yes | |
| Rack Mountable | No | Yes | |
| Software | Editor | DM7 Editor (Win/Mac) | DM7 Editor (Win/Mac) |
| StageMix | DM7 StageMix | DM7 StageMix | |
| MonitorMix | Yes | Yes | |
| Console File Converter | Yes | Yes | |
| ProVisionaire Control/Touch | Yes | Yes | |
| Software Package | Broadcast Package, Theatre Package | Broadcast Package, Theatre Package | |
| Dimensions | W | 793 mm (31.3") | 468 mm (18.5") |
| H | 324 mm (12.8") *including the rubber feet | 324 mm (12.8") *including the rubber feet | |
| D | 564 mm (22.2") | 564 mm (22.2") | |
| Net weight | 23.5 kg (51.8 lb) | 16.5 kg (36.4 lb) | |
| Included Accessories | Owner’s Manual, AC power cords, Dust cover, Cable hook (for USB TO HOST), Nuendo Live, VST Rack Elements | Owner’s Manual, AC power cords, Dust cover, Cable hook (for USB TO HOST), Nuendo Live, VST Rack Elements | |
| Accessories | - | RK-1 | |
