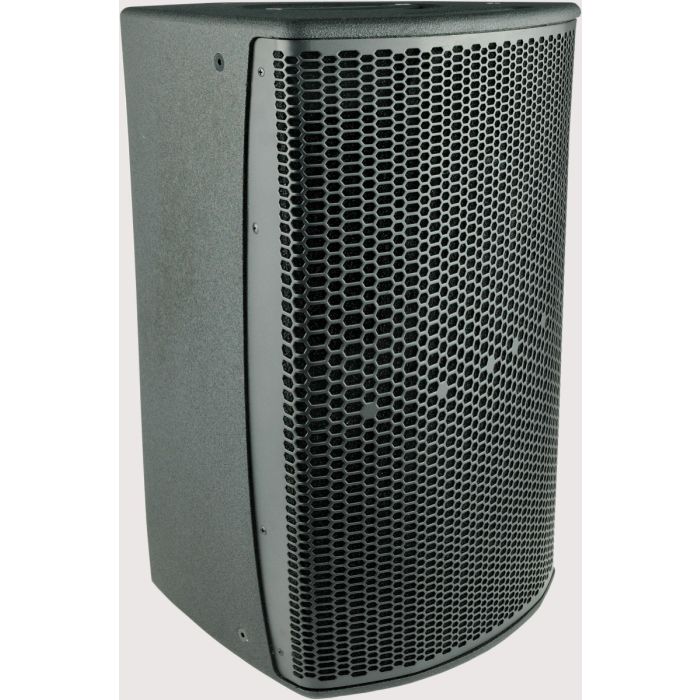

It was designed with the total flexibility in mind. A real multipurpose cabinet,
- Pole mount for front of house
- Flyable horizontally or vertically with 10 x M8 threaded mounting points
- Timber birch cabinet finished in durable, hard wearing galaxy black paint.
- Front of speaker is protected with triangular mesh metal grille with foam inside to protect the drivers
Applications：
■ Conference centers, churches, auditoriums
■ Theater sound reinforcement, theme parks
■ Mobile or fixed installation AV systems
■ Stage side fills
■ Bars, nightclubs, clubs
■ Small performance PA
System
Frequency Response
Sensitivity
Nominal Impedance
Power Handing
Maximum SPL
Nominal Dispersion
Crossover Frequency
70 Hz - 19 kHz (3 dB)
96 dB SPL (1W @ 1m)
8 ohms
250 watts (rms) , 500 watts (program) , 1000 watts (peak)
122 dB
115°horizontal, 85°vertical
1.8 kHz
High Frequency
Low Frequency
1 x 10(in) 380 mm dia, 64 mm(4in)voice coil dia
1 x 1.25(in) 34 mm voice coil dia, 26 mm(1in)throat dia
Enclosure Construction - 15 mm Plywood
Finish - Galaxy black Wear-resistant textured black paint
Grille - Powder coated perforated steel with foam
Rigging - 10 x M8 internal rigging points plus 1 x Integral pole mount socket
Input Connectors - Speakon NL4 x 2
Dimensions H x W x D - 530 mm x 337 mm x 315 mm x 13.5 kg
System
Frequency Response
Sensitivity
Nominal Impedance
Power Handing
Maximum SPL
Nominal Dispersion
Crossover Frequency
70 Hz - 19 kHz (3 dB)
96 dB SPL (1W @ 1m)
8 ohms
250 watts (rms) , 500 watts (program) , 1000 watts (peak)
122 dB
115°horizontal, 85°vertical
1.8 kHz
High Frequency
Low Frequency
1 x 10(in) 380 mm dia, 64 mm(4in)voice coil dia
1 x 1.25(in) 34 mm voice coil dia, 26 mm(1in)throat dia
Enclosure Construction - 15 mm Plywood
Finish - Galaxy black Wear-resistant textured black paint
Grille - Powder coated perforated steel with foam
Rigging - 10 x M8 internal rigging points plus 1 x Integral pole mount socket
Input Connectors - Speakon NL4 x 2
Dimensions H x W x D - 530 mm x 337 mm x 315 mm x 13.5 kg
