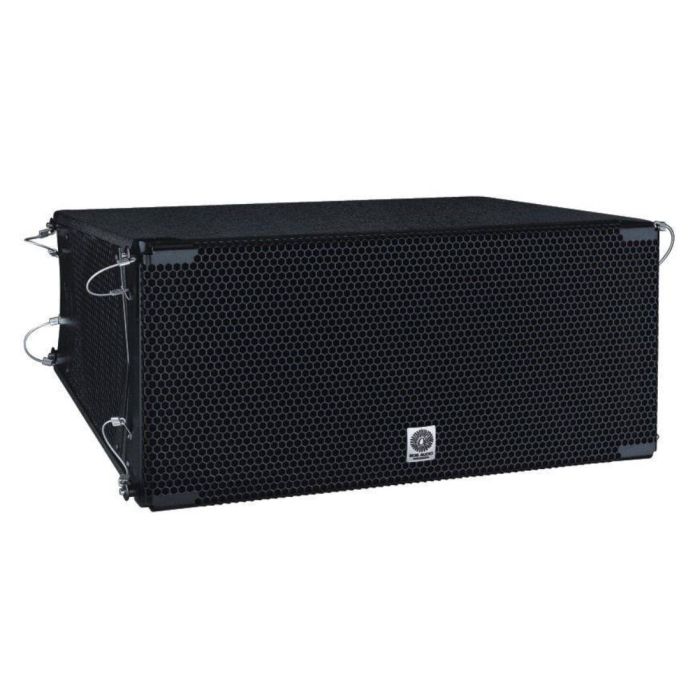

BOB AUDIO AS310 LINE ARRAY 3-WAY SPEAKER DUAL 10" 680W RMS
Availability: Available
BOB AUDIO
AS310 uses 2x10" LF, 2x6.5"MF and 2x1.73" compress drivers.
Applications:
Arenas, stadiums, large-scale events, live theatres, concert halls and clubs
AS310 uses 2x10" LF, 2x6.5"MF and 2x1.73" compress drivers.
| Specification | 2x 10” LF
2x 6.5” MF
2x 2in compression drivers
18in birch structured plywood
Water-resistant texturerd black paint finish
Operating Mode: Bi-amp
Operating Range: 80 Hz – 18kHz (+/- 3dB)
Sensitivity MF/HF 108dB, LF 92dB SPL (1W at 1M)
Nominal Impedance MF/HF 8 ohms, LF 8ohms
Nominal Coverage Angle (-6dB): 110deg horizontal
POWER HANDLING /OUTPUT:
(LF) 400W RMS - 118dB SPL; 2x 10in dia, 75mm (3in) voice coil
(MF/HF) 280W RMS- 134dB SPL; 2x 6.5in dia, 44mm (1.73in) voicecoil,
2x2in dia, 23 mm throat dia
Connections: Speakon NL8 x 2
Suspension Hardware: proprietary rigging system
Dimensions: 330 x 720 x 750mm
Weight: 36.5kg |
|---|---|
| Manufacturer | BOB AUDIO |
| Package | 1 Pack |
2x 10” LF
2x 6.5” MF
2x 2in compression drivers
18in birch structured plywood
Water-resistant texturerd black paint finish
Operating Mode: Bi-amp
Operating Range: 80 Hz – 18kHz (+/- 3dB)
Sensitivity MF/HF 108dB, LF 92dB SPL (1W at 1M)
Nominal Impedance MF/HF 8 ohms, LF 8ohms
Nominal Coverage Angle (-6dB): 110deg horizontal
POWER HANDLING /OUTPUT:
(LF) 400W RMS - 118dB SPL; 2x 10in dia, 75mm (3in) voice coil
(MF/HF) 280W RMS- 134dB SPL; 2x 6.5in dia, 44mm (1.73in) voicecoil,
2x2in dia, 23 mm throat dia
Connections: Speakon NL8 x 2
Suspension Hardware: proprietary rigging system
Dimensions: 330 x 720 x 750mm
Weight: 36.5kg
