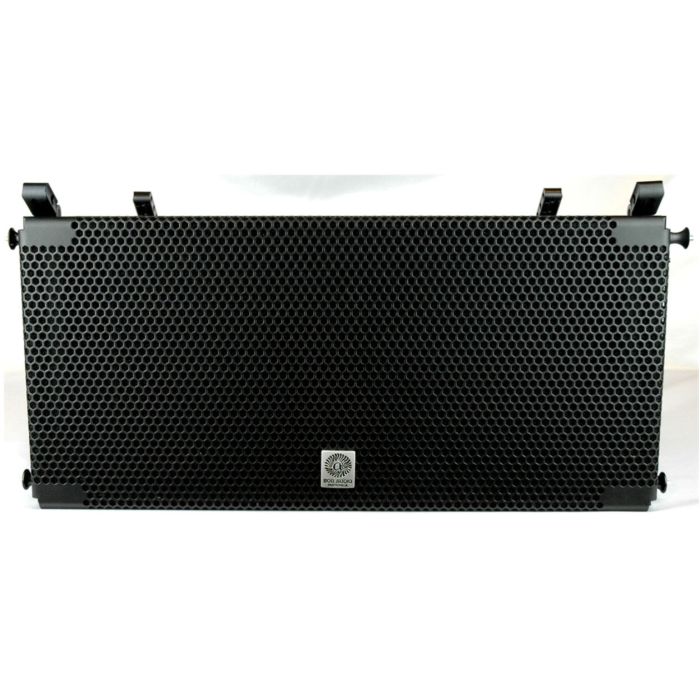

Bob Audio AS308 line array speaker
Move your mouse over image or click to enlarge
Bob Audio AS308 line array speaker Bob Audio AS308 line array speaker Bob Audio AS308 line array speaker Bob Audio AS308 line array speaker

Bob Audio AS308 line array speaker

Manufacturer: Bob Audio

SKU: AS308

Availability: Available

Regular Price: $2,100.00

Special Price $1,599.00

Qty

Quick Overview

2x 8” LF, 75mm voice coil dia
2x 5.25” MF, 44mm voice coil

The AS308 is a  3-way small line array system wich packs a six-driver design into a very compact enclosure. The horn-loaded design and quality drivers ensure high efficiency output and long throw. Feature professional rigging points or it can be pole mounted (pole mounting frames included) making it versatile for portable or permanent installations. Suitable for various applications.

Please contact us for amplification and subwoofers requirements.

2x 8” LF, 75mm voice coil dia
2x 5.25” MF, 44mm voice coil
2x 2in compression drivers, 51mm voice coil dia, 23mm (1in) throat dia
18in birch structured plywood
Water-resistant texturerd black paint finish
Operating Mode: Bi-amp
Operating Range: 100 Hz – 18kHz (+/- 3dB)
Sensitivity MF/HF 108dB, LF 92dB SPL (1W@1m)
Nominal Impedance MF/HF 8 ohms, LF 8ohms
Nominal Coverage Angel (-6dB): 110deg horizontal
POWER HANDLING /OUTPUT:
(LF) 350W RMS - 118dB SPL;
(MF/HF) 200W RMS- 134dB SPL;
Crossover frequency: MF/JF 2kHz, MF/LF 350Hz
Recommended High Pass Filter: high pass =>80Hz, 24 dB/octave
Connections: Speakon NL4 x 2
Suspension Hardware: proprietary rigging system
Dimensions: 258 x 566 x 353mm
Weight: 20kg
