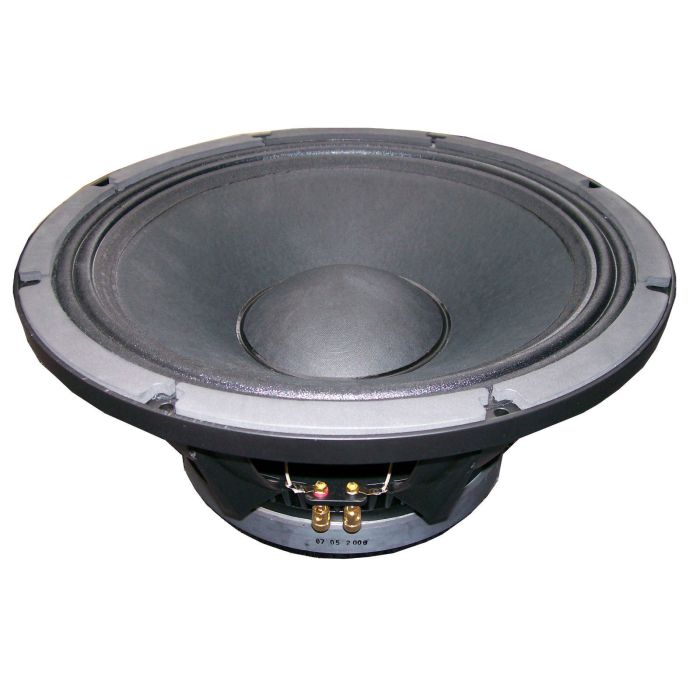

Ande SB18-5 18" 1000W RMS driver / speaker CAST FRAME
Move your mouse over image or click to enlarge
Ande SB18-5 18" 1000W RMS driver / speaker CAST FRAME Ande SB18-5 18" 1000W RMS driver / speaker CAST FRAME Ande SB18-5 18" 1000W RMS driver / speaker CAST FRAME

Ande SB18-5 18" 1000W RMS driver / speaker CAST FRAME

Manufacturer: Ande

SKU: SB18-5

Availability: Available

Regular Price: $420.00

Special Price $349.00

Qty

Quick Overview

1000W

Suitable for bass application.

Specifications:

Nominal Diameter 460mm / 18inch
External Frame Diameter 463mm
Screw Hole Spacing 441mm C/C (Center to Center)
Retd Impedance 8 ohms
Power Capacity 1000 watts
Sensitivity IW/IM 99 (+/- 2) dB
Frequency Range 36-1000 Hz
Voice Coil Diameter 125/5 mm/inch
Magnetic Assembly Weight 5.2 kg
Magnet Diameter 280 x 150 x 25 mm/inch

Total Height 214mm

Product Net Weight 23.2 kg

Resonance Frequency Fs 35 Hz
DC resistance Re 5 ohms
Mechanical Factor Qms 9.21
Electrical Factor Qes 0.29
Total Factor Qts 0.28
BL Factor BL 24.3
Vas 249.4 L
Rp 86.0 ohm
Lp 76.6 mH
Cp 421.1 LF
Le 3.0 mH
MmS 148.8 gr
Xmax (+/-) 12 mm
