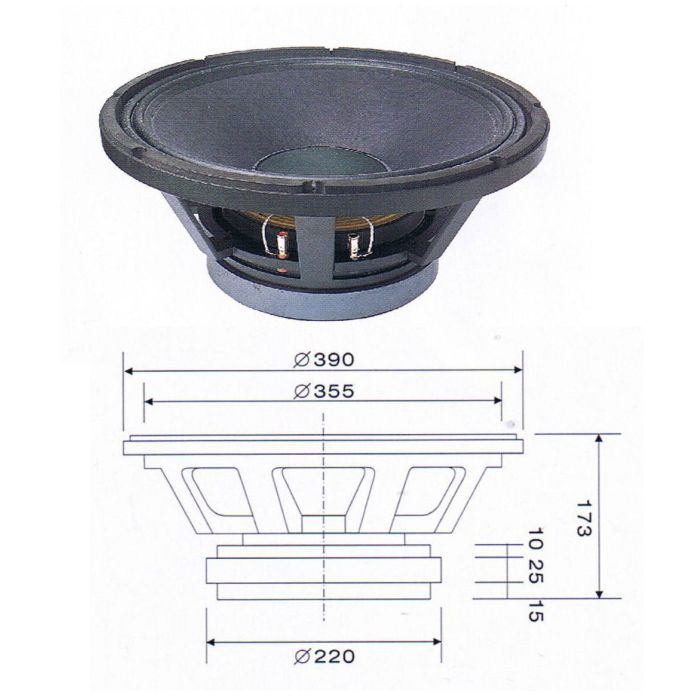

Ande LB1560 15" 600W RMS driver / speaker CAST FRAME
Move your mouse over image or click to enlarge

Ande LB1560 15" 600W RMS driver / speaker CAST FRAME

Manufacturer: Ande

SKU: LB1560

check availability

Regular Price: $240.00

Special Price $199.00

Quick Overview

600W

Suitable for mid-high / mid-bass application.

Specifications:



Nominal Diameter 380/15mm/inch
Retd Impedance 8ohms
Power Capacity 600watts
Sensitivity IW/IM 98 (+/- 2)dB
Frequency Range 43-3000Hz
Voice Coil Diameter 100/4mm/inch
Magnetic Assembly Weight3.5kg
Magnet Diameter 220 x 120 x 25mm/inch
Product Net Weight 11.9kg

Resonance FrequencyFs42.5Hz
DC resistanceRe5.5ohms
Mechanical FactorQms8.97
Electrical FactorQes0.35
Total FactorQts0.33
BL Factor BL21.4
  Vas133.1L
  Rp132.5ohm
  Lp62.8mH
  Cp285.3LF
  Le1.4mH
  MmS108gr
  Xmax(+/-)11mm
