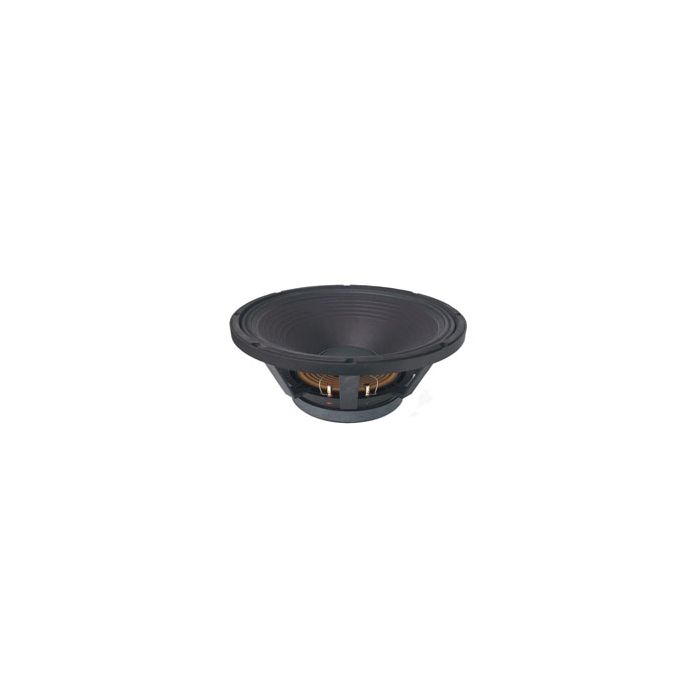

Ande LB15-1 15" 350W RMS driver / speaker CAST FRAME
Move your mouse over image or click to enlarge
Ande LB15-1 15" 350W RMS driver / speaker CAST FRAME Ande LB15-1 15" 350W RMS driver / speaker CAST FRAME Ande LB15-1 15" 350W RMS driver / speaker CAST FRAME Ande LB15-1 15" 350W RMS driver / speaker CAST FRAME

Ande LB15-1 15" 350W RMS driver / speaker CAST FRAME

Manufacturer: Ande

SKU: LB15-1

Availability: Available

Regular Price: $199.00

Special Price $149.00

Qty

Quick Overview

350W

Suitable for mid-bass application.

Specifications:

Nominal Diameter   380/15 mm/inch
Retd Impedance   8 ohms
Power Capacity   350 watts
Sensitivity IW/IM   99 (+/- 2) dB
Frequency Range   39-3500 Hz
Voice Coil Diameter   75/3 mm/inch
Magnetic Assembly Weight 2.7 kg
Magnet Diameter   200 x 85 x 2 mm/inch
Product Net Weight   9.2 kg

Resonance Frequency Fs 38.9 Hz
DC resistance Re 5.8 ohms
Mechanical Factor Qms 5.52
Electrical Factor Qes 0.22
Total Factor Qts 0.21
BL Factor   BL 26.1
    Vas 176.4 L
    Rp 140.3 ohm
    Lp 103.8 mH
    Cp 215.9 LF
    Le 1.6 mH
    MmS 103.4 gr
    Xmax (+/-) 8 mm
