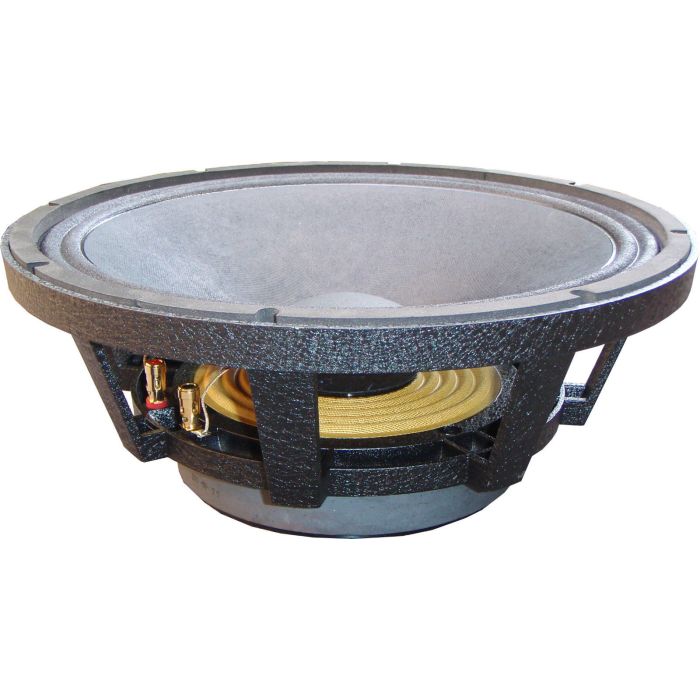

Ande LB12-1 12" 250W RMS driver / speaker CAST FRAME
Move your mouse over image or click to enlarge
Ande LB12-1 12" 250W RMS driver / speaker CAST FRAME Ande LB12-1 12" 250W RMS driver / speaker CAST FRAME

Ande LB12-1 12" 250W RMS driver / speaker CAST FRAME

Manufacturer: Ande

SKU: LB12-1

Availability: Available

Regular Price: $179.00

Special Price $129.00

Qty

Quick Overview

250W

Suitable for mid-bass application.

Specifications:

Nominal Diameter   300/12 mm/inch
Retd Impedance   8 ohms
Power Capacity   250 watts
Sensitivity IW/IM   98 (+/- 2) dB
Frequency Range   53-3000 Hz
Voice Coil Diameter   63/2.52 mm/inch
Magnetic Assembly Weight 1.60 kg
Magnet Diameter   170 x 80 x 20 mm/inch
Product Net Weight   5.60 kg

Resonance Frequency Fs 53.20 Hz
DC resistance Re 6 ohms
Mechanical Factor Qms 6.40
Electrical Factor Qes 0.30
Total Factor Qts 0.29
BL Factor   BL 16.2
    Vas 90.3 L
    Rp 88.3 ohm
    Lp 54.1 mH
    Cp 271.0 LF
    Le 1.3 mH
    MmS 39.2 gr
    Xmax (+/-) 6 mm
