Pin spot not included

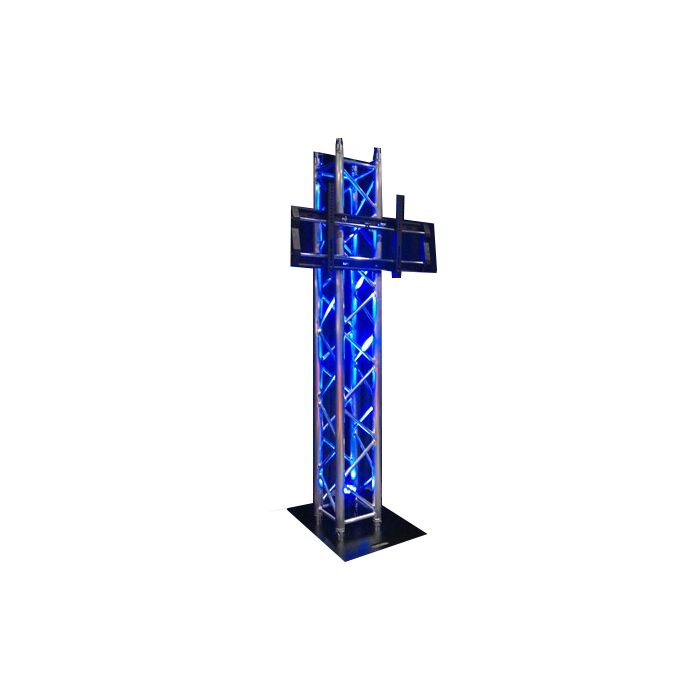

Plasma bracket specifications:
This bracket will fit your TV screen (and not be visible from front on) if your TV is:
- At least 850mm wide.
- At least 420mm tall.
The four threaded mounting holes on the back of your TV need to be:
- No more than 820mm apart side to side.
- No more than 400mm apart top to bottom.
Maximum TV weight capacity is 60kg.
|- Vertical Tilt: +/- 15 degrees|
- Distance from wall: 50mm
- Maximum weight capacity: 60kg
- Total width of bracket: 850mm
- Total height of bracket: 420mm
- Maximum mounting hole spacing (horizontal): 820mm
- Maximum mounting hole spacing (vertical): 400mm
- Suits VESA standards up to 400x800mm
