YAMAHA STAGEPAS 600BT PORTABLE PA SYSTEM

Special Price A$1,549.00 Regular Price A$1,849.00

LOW STOCK 1 LEFT

SKU

SP-STAGEPAS600BT-YAMAHA

Accessories:

SHIPPING CHARGE

There may be extra freight charges for this item. Please call 03 9364 9999 or email for a shipping quote. Alternatively proceed with order and a team member will contact you regarding your shipping cost

Qty

Powered speakers with mixer with BT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

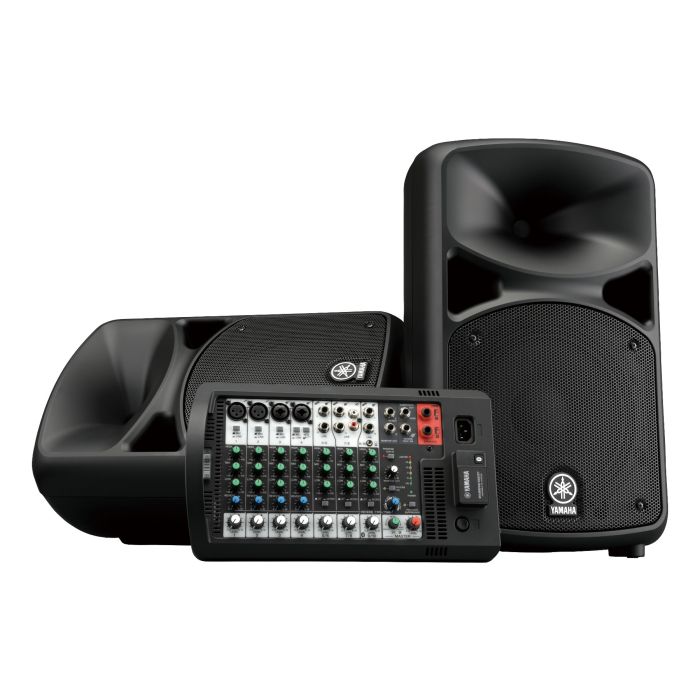

Stagepass 600BT is a portable PA system featuring two light weight 10" speakers and a detachable powered mixer. It comes with speaker cables and a power cord, giving a complete, extremely portable sound reinforcement solution.

When it comes to portable live sound solutions, it doesn't get any better than STAGEPAS. With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth® wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal stage.

Includes BlueTooth connectivity, on-board SPX effects and feedback suppressor. Other features include phantom power, 1-knob Master EQ and dedicated monitor and subwoofer outputs.

FEATURES:

680 watts dynamic (560 watts continuous) power
10-channel powered mixer
2 x 10" speakers
3-band channel EQ
BlueTooth Connectivity

STAGEPAS 600BT PA System

680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

680W (340W + 340W) power output
High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
Bluetooth® audio streaming
1-Knob Master EQ™ with virtual bass boost
High resolution SPX digital reverbs (4 types, parameter control)
Onboard feedback suppressor
Great-sounding 3-band channel EQ
Switchable stereo/ mono inputs
Hi-Z (high impedance) inputs
Phantom power
Monitor and Subwoofer outputs
Optional reverb footswitch

BULKY ITEM - EXTRA FREIGHT CHARGES MAY APPLY PLEASE ENQUIRE

More Information

Custom Stock Status

LOW STOCK {qty} LEFT

Specification

STAGEPAS 400BT/600BT

Outline		STAGEPAS 400BT	STAGEPAS 600BT
Type		Powered mixer with 2 passive speakers	Powered mixer with 2 passive speakers
Mixing capability	Mixing channels	8	10
	Input channel functions	Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8	Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
	Output channel functions	Feedback suppressor, 1-Knob Master EQ™	Feedback suppressor, 1-Knob Master EQ™
I/O	Inputs	4 mono mic / line + 4 mono / 2 stereo line	4 mono mic / line + 6 mono / 3 stereo line
	Phantom power	+30V (CH1, 2)	+30V (CH1, 2)
	Outputs	SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF	SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
	Bluetooth	Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m	Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
	Control and others	Reverb foot switch	Reverb foot switch
Input Channel Function	Hi-Z	CH4	CH4
	EQ HIGH	HIGH Shelving: 8 kHz	HIGH Shelving: 8 kHz
	EQ LOW	LOW Shelving: 100 Hz	LOW Shelving: 100 Hz
	EQ MID	-	MID peaking: 2.5 kHz
On-board processors	DSP	SPX digital reverb (4 program, parameter control)	SPX digital reverb (4 program, parameter control)
On-board amplifiers	Maximum output power @4ohms	400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)	680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
General specifications		STAGEPAS 400BT	STAGEPAS 600BT
Speaker type		Two-way bass-relfex speakers	Two-way bass-relfex speakers
Frequency range (-10dB)		55 Hz - 20 kHz	55 Hz - 20 kHz
Nominal coverage	H	90°	90°
Nominal coverage	V	60°	60°
Floor Monitor Angle		50°	50°
Components	LF	8" (20 cm) cone	10" (25 cm) cone
Components	HF	1" (2.54 cm) voice coil compression driver	1.4" (3.56 cm) voice coil compression driver
Maximum output level (1m; on axis)		125 dB SPL / speaker	129 dB SPL / speaker
Power requirements		100 V - 240 V 50 Hz/60 Hz	100 V - 240 V 50 Hz/60 Hz
Power consumption		30 W (Idle), 70 W (1/8 Power)	35 W (Idle), 100 W (1/8 Power)
Pole socket		34.8-35.2 mm pole socket with StageLok™	34.8-35.2 mm pole socket with StageLok™
Accessories		Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties	Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Options		Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF	Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Others		Handle: 1 x Top	Handle: 1 x Top
Dimensions (W x H x D)		Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm	Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm
Weight		18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)	25.6 kg (56.4lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)

Manufacturer

YAMAHA

Package

1 Pack

Specification

STAGEPAS 400BT/600BT

Outline		STAGEPAS 400BT	STAGEPAS 600BT
Type		Powered mixer with 2 passive speakers	Powered mixer with 2 passive speakers
Mixing capability	Mixing channels	8	10
	Input channel functions	Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8	Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
	Output channel functions	Feedback suppressor, 1-Knob Master EQ™	Feedback suppressor, 1-Knob Master EQ™
I/O	Inputs	4 mono mic / line + 4 mono / 2 stereo line	4 mono mic / line + 6 mono / 3 stereo line
	Phantom power	+30V (CH1, 2)	+30V (CH1, 2)
	Outputs	SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF	SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
	Bluetooth	Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m	Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
	Control and others	Reverb foot switch	Reverb foot switch
Input Channel Function	Hi-Z	CH4	CH4
	EQ HIGH	HIGH Shelving: 8 kHz	HIGH Shelving: 8 kHz
	EQ LOW	LOW Shelving: 100 Hz	LOW Shelving: 100 Hz
	EQ MID	-	MID peaking: 2.5 kHz
On-board processors	DSP	SPX digital reverb (4 program, parameter control)	SPX digital reverb (4 program, parameter control)
On-board amplifiers	Maximum output power @4ohms	400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)	680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
General specifications		STAGEPAS 400BT	STAGEPAS 600BT
Speaker type		Two-way bass-relfex speakers	Two-way bass-relfex speakers
Frequency range (-10dB)		55 Hz - 20 kHz	55 Hz - 20 kHz
Nominal coverage	H	90°	90°
Nominal coverage	V	60°	60°
Floor Monitor Angle		50°	50°
Components	LF	8" (20 cm) cone	10" (25 cm) cone
Components	HF	1" (2.54 cm) voice coil compression driver	1.4" (3.56 cm) voice coil compression driver
Maximum output level (1m; on axis)		125 dB SPL / speaker	129 dB SPL / speaker
Power requirements		100 V - 240 V 50 Hz/60 Hz	100 V - 240 V 50 Hz/60 Hz
Power consumption		30 W (Idle), 70 W (1/8 Power)	35 W (Idle), 100 W (1/8 Power)
Pole socket		34.8-35.2 mm pole socket with StageLok™	34.8-35.2 mm pole socket with StageLok™
Accessories		Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties	Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Options		Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF	Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Others		Handle: 1 x Top	Handle: 1 x Top
Dimensions (W x H x D)		Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm	Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm
Weight		18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)	25.6 kg (56.4lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
