Wharfedale

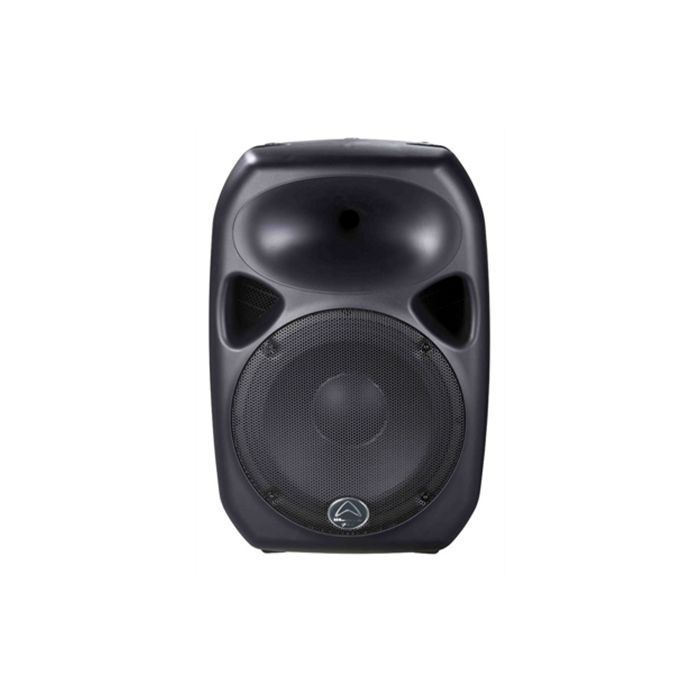

Compact and lightweight 15" active speaker
Wharfedale Pro bring you the next generation of Titan, Titan 15D.
Titan 15D models are bi-amplified, Class D technology is now used for the LF and Class A/B technology is now used for the HF, creating a more efficient and powerful system that is now even lighter than the previous generation.
With the Titan 15D Wharfedale Pro introduce Qubit™, our new powerful and precise 28/56-bit 192kHz DSP processing.
With advanced adaptive multi-band dynamic processing and filtering Qubit helps fine tune your system to sound natural and open. Qubit processing optimises the loudspeaker to provide smooth digital crossover points that are perfectly aligned in terms of phase response and time-domain. Protection is offered in the form of true independent adaptive LF and HF signal limiting that helps protect against thermal damage and driver over excursion.
Qubit has an extended frequency response that goes way beyond the capabilities of our hearing, providing an extended phase response that remains linear throughout our natural hearing range. This enables Titan D to reproduce exceptionally natural transients and exhibit perfectly aligned time-domain characteristics.
Features:
Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Manufacturer | Wharfedale |
||||||||||||||||||||||||||||||||||||||||||||||
Package | 1 Pack |
MODEL | Titan 15D |
Maximum Input Level | +22dBu |
Sensitivity | 0dBu (-2.2dBv or 0.775Vrms) |
Impedance | Balanced: 200 ohm Unbalanced: 100 ohm |
AC Power details | |
Power Supply | High Efficiency Switching Mode Power Supply |
AC Power Options | AC100~120V / 220~240 V, 50 / 60Hz |
Power On Indicator | Green LED |
Rigging / Bracket / Mounting Options | 10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 60.0-type footprint Pole-mount receptacle with lock screw 2 carry handles (one on each side) Optional wall-mount bracket |
Line Output | Switchable LOOP / MIX Balanced Male XLR |
Input A - type | Switchable balanced mic or line level input |
Input Sensitivity | Mic: -40dBu (-42.2dBv or 7.75mVrms) Line: 0dBu (-2.2dBv or 0.775Vrms) |
Maximum Input Level | +22dBu |
Input Connector | XLR - 1/4” Combo jack |
Input Impedance | Balanced: 10kΩ - Unbalanced: 5kΩ |
Input B - type | Line level input XLR - 1/4” Combo jack: 0dBu (-2.2dBv or 0.775Vrms) |
Input Sensitivity | RCA: 0dBu (-2.2dBv or 0.775Vrms) |
Maximum Input Level | +22dBu |
Input Connectors | Combo jack: 1/4" - XLR / Summed dual RCA jacks |
Colours | Black |
Enclosure Material | Injection Moulded Polypropylene |
Gross Weight (kg / lbs) | 27.7kg / 60.94lbs |
Net Weight (kg / lbs) | 22.9kg / 50.38lbs |
